Selden Furlex 200E How To Do

Instruction for changing belt

Hide thumbs Also See for Furlex 200E:

595-526-E

2017-06-09

INSTRUCTION FOR CHANGING BELT ON FURLEX

ELECTRIC 200E-400E

Belt replacing kit Furlex 200E 539-633-01

Belt replacing kit Furlex 300E 539-651-01

Belt replacing kit Furlex 400E 539-776-01

1. Disconnect power

Make sure that power is disconnected before disassembling any parts.

Use a torx screwdriver to loosen the screws. Take care not to damage the housing, a sharp knife

can be used to cut the sealant before the cover is removed.

The motor or one of the motors has oblong mounting holes. Use a torx T30 screwdriver to loosen

the four screws slightly holding this motor until it can be moved. Push the motor to its forward

position and remove the belt by pulling it off the belt wheel(s) which does not have a flange.

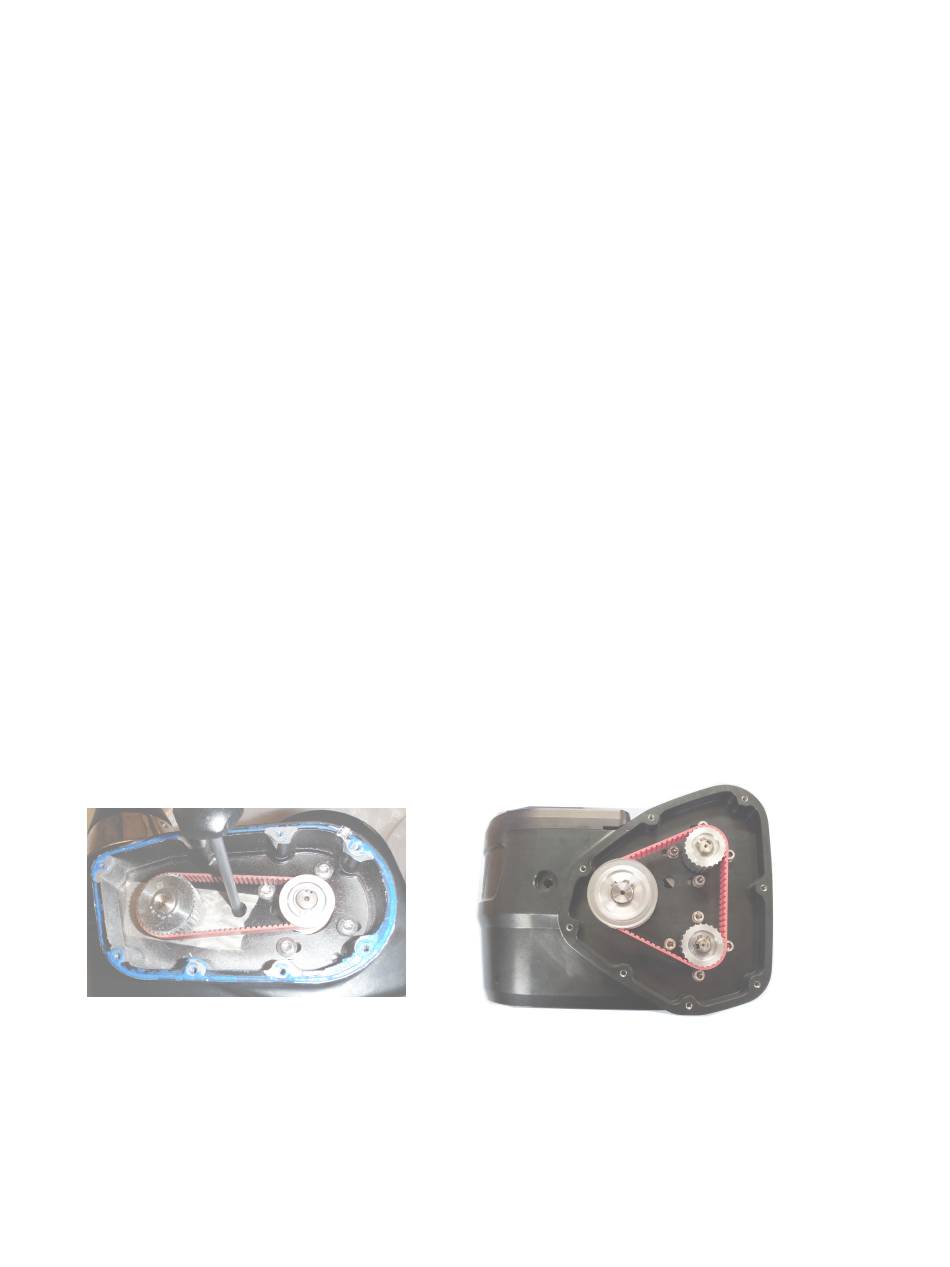

FLX 200/300E

FLX400E

Table of Contents

Do you have a question about the Furlex 200E and is the answer not in the manual?

Page 1 595-526-E 2017-06-09 INSTRUCTION FOR CHANGING BELT ON FURLEX ELECTRIC 200E-400E Belt replacing kit Furlex 200E 539-633-01 Belt replacing kit Furlex 300E 539-651-01 Belt replacing kit Furlex 400E 539-776-01 1. Disconnect power Make sure that power is disconnected before disassembling any parts.
Page 2 595-526-E 2017-06-09 4. Mount the new belt 1. Push the movable motor to its forward position, 2. Put the belt in place, starting at the flanged belt wheel. 3. Pull the belt over the other belt wheel(s). 4. Gently use a screwdriver as a lever by inserting it into the hole as shown above, pushing the motor backwards to tension the belt before tightening the motor screws.
