Salter Brecknell S750 Series Operation/Setup Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

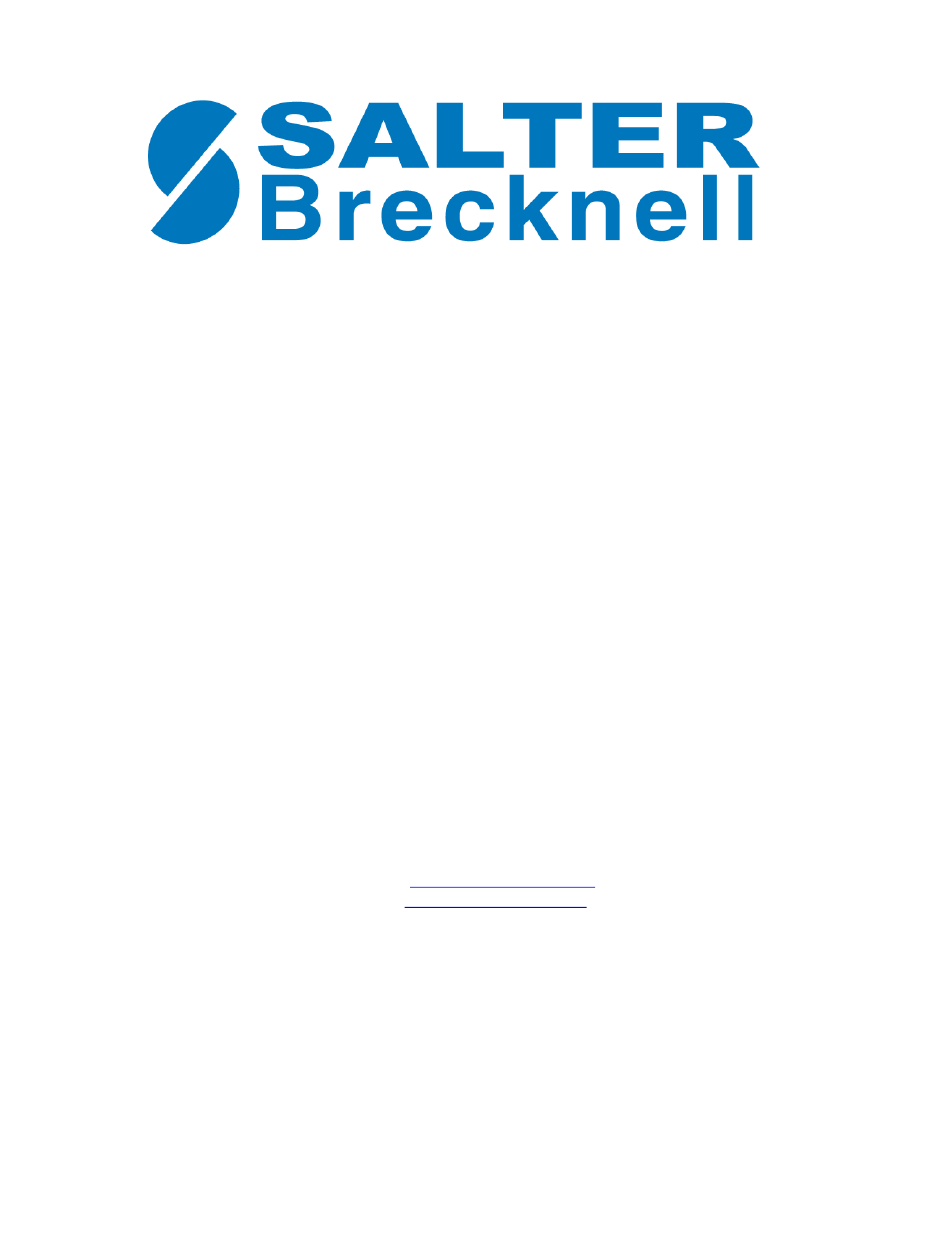

Model S750 Series
Operation & Set-up Manual
Revision 1.0
July, 2003
Contents subject to change without notice.
Salter Brecknell Weighing Products
1000 Armstrong Drive
Fairmont, MN 56031
Tel (800) 637-0529
Tel (507) 238-8702
Fax (507) 238-8271
E-mail:
sales@salterbrecknell.com
Web:
www.salterbrecknell.com.
Page C-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S750 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Salter Brecknell S750 Series

Summary of Contents for Salter Brecknell S750 Series

  • Page 1 Model S750 Series Operation & Set-up Manual Revision 1.0 July, 2003 Contents subject to change without notice. Salter Brecknell Weighing Products 1000 Armstrong Drive Fairmont, MN 56031 Tel (800) 637-0529 Tel (507) 238-8702 Fax (507) 238-8271 E-mail: sales@salterbrecknell.com Web: www.salterbrecknell.com.
  • Page 2 NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause harmful interference to radio communications.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Page Chapter 1: Introduction To The S750 Series Indicators..............1-1 Chapter 2: Installation ........................2-1 ABS Enclosure (S750/S750-8)..................2-1 2.1.1 Connecting the weigh platform................. 2-1 2.1.2 Connecting the serial printer, remote display or computer ......2-2 2.1.3 Connecting the power supply................
  • Page 4 Chapter 5: User Menu Descriptions and Procedures ..............5-1 User Menu Descriptions....................5-1 User Menu Procedures ....................5-2 5.2.1 ID Number Entry (A5)..................5-2 5.2.2 Line Feeds Entry (A6) ..................5-3 5.2.3 Time Entry (A10) ....................5-3 5.2.4 Date Entry (A13)....................5-4 Chapter 6: Calibration ........................
  • Page 5 Page C-1...
  • Page 6 Cable Diagram for Indicator to Printer ..................B-3 Consolidated Controls Continuous Mode ................B-3 LIST OF TABLES S750 Series Product Matrix ....................1-1 Invalid Setup Selections for commercial applications............. 4-3 Calibration Value Table......................6-2 S750 Series Annunciator Definitions ..................7-2 Minimum Recommended Span Gain Table................

  • Page 7: Chapter 1: Introduction To The S750 Series Indicators

    8-350Ω load cells. All setup parameters may be entered via the front panel keys, including calibration. If your Model S750 Series Digital Indicator is part of a complete floor scale or has been installed for you, you may skip to Chapter 7 for operating instructions. Prior to using the indicator, please read this chapter carefully and completely.

  • Page 8: S750 Front Panel

    FIGURE 1-1: S750 Front Panel Page C-1...

  • Page 9: Chapter 2: Installation

    CHAPTER 2: INSTALLATION ABS ENCLOSURE (S750/S750-8) For indicators contained in the standard ABS enclosure, the rear panel contains all connectors necessary to make the appropriate connections to the weigh platform, printer, remote display and power supply. LOAD CELL DC Jack Port Serial Port...

  • Page 10: Connecting The Serial Printer, Remote Display Or Computer

    2.1.2 CONNECTING THE SERIAL PRINTER, REMOTE DISPLAY OR COMPUTER The S750 series indicator comes standard with two serial ports, designated COM1 and COM2. COM1 is a full duplex, RS-232 port designed for connection to either a PC or a serial printer. COM2 is a simplex, RS-232 / Passive 20 mA Current Loop port designed for connection to a remote display.

  • Page 11: Stainless Steel Enclosure (Ti-S750S/S750S-8)

    STAINLESS STEEL ENCLOSURE (TI-S750S/S750S-8) For indicators contained in a stainless steel enclosure, the rear cover must first be removed to make the appropriate connections to the weigh platform, printer, remote display and power supply. To remove the rear cover, simply remove the screws that secure it to the enclosure and set aside. NOTE: The rear cover must remain off to access the Setup Menu and calibration procedures.

  • Page 12: Connecting The Serial Printer, Remote Display Or Computer

    2.2.2 CONNECTING THE SERIAL PRINTER, REMOTE DISPLAY OR COMPUTER The S750 series indicator comes standard with two serial ports, designated COM1 and COM2. COM1 is a full duplex, RS-232 port designed for connection to either a PC or a serial printer. COM2 is a simplex, RS-232 / Passive 20 mA Current Loop port designed for connection to a remote display.

  • Page 13: Chapter 3: Configuration

    CHAPTER 3: CONFIGURATION CONFIGURATION OVERVIEW The indicator contains two main setup menus: The Setup (“F”) menu which configures the indicator to your weigh platform and the User (“A”) menu which configures the serial communication port and enables some user options. The Setup and User menus consist of several menu selections, each with its own sub-menu of choices.

  • Page 14: Navigating In The Setup Menu

    3.2.3 NAVIGATING IN THE SETUP MENU Use the directional keys shown in Figure 3-1 to move around in the Setup Menu Chart shown in Figure 3-2 on the following page. To move to a new “F” heading, use the TARE (left) or PRINT (right) key to move right or left in the Setup Menu Chart.

  • Page 15: Notes On The Setup Menu

    Grads Span Gn. Zero Band Zero Range Mot. Band Dig. Filter Ovld. Limit Calib. Unit 0.5d 1d 1d 3d 5d 10d 0d 2% 1d 9d Auto 1 2 4 8 12 16 32 64 100% 1.9% lb kg 25 50 75 100 150 200 500 1000 1500 2000 2500 3000 4000 5000 6000 8000 10000 12000 20000 30000 40000 50000 lb/kg Enable PC Enable...

  • Page 16: Exiting The Setup Menu - Stainless Steel Enclosure

    3.2.6 EXITING THE SETUP MENU – STAINLESS STEEL ENCLOSURE 1. Power off the indicator. 2. Move the slide switch on the rear cover back to the left. 3. Power on the indicator. The display will go through a digit check, then settle into Normal Operating mode.

  • Page 17: Notes On The User Menu

    Figure 3-3: User Menu Key Assignments Baud Rate Data Bits, Parity COM 1 Mode ID No. Entry ID No. Enable Press ZERO 8n 7O 7E key to begin 1200 2400 4800 9600 Handshaking Line Feeds Entry Time Enable Time Format Press ZERO key to begin Time Entry...

  • Page 18: Exiting The User Menu

    3.3.4 EXITING THE USER MENU 1. Exit the User (“A”) menu by following the directions in Section 3.2.5 or 3.2.6. The display will go through a digit check, then settle into Normal Operating mode. All front panel keys will now return to their normal mode of operation. Page C-1...

  • Page 19: Chapter 4: Setup Menu Descriptions And Procedures

    CHAPTER 4: SETUP MENU DESCRIPTIONS AND PROCEDURES SETUP MENU DESCRIPTIONS This section provides more detailed descriptions of the selections found in the Setup Menu Chart. Factory-set defaults are shown in bold with a checkmark (√). Table 4-1 shows the selections that are not allowed for “Legal-for-Trade” applications: NAME/CODE DESCRIPTION CODE/VALUE...
  • Page 20 NAME/CODE DESCRIPTION CODE/VALUE Determines the desired weight increments. Value should be 1√ consistent with legal requirements. Display Divisions Determines location of the decimal point. 0√ Decimal Pt. 0.00 0.000 0.0000 Actuates the function that allows you to enter a multiplier for the Press ZERO key Custom Unit custom unit.

  • Page 21: Setup Menu Procedures

    SUB-MENU TITLE SELECTIONS Graduations 12,000 20,000 30,000 40,000 50,000 Zero Tracking Band (SAZSM) Zero Reset 100% (Canada Range Only) Motion Band Digital Filter Custom Unit Piece Count Table 4-1: Invalid Setup Menu selections for commercial applications SETUP MENU PROCEDURES This section provides instructions for all of the Setup Menu procedures with the exception of the Calibration procedures (F16 through F20) which can be found in Chapter 6.

  • Page 22: Setup Menu Key Assignments

    The display will momentarily show "SET", followed by a value with one flashing digit. This value will be the current multiplier value with the decimal point position programmed above. Use the four directional keys (shown in Figure 4-1 below) to adjust the displayed value to the actual custom unit multiplier value.

  • Page 23: Chapter 5: User Menu Descriptions And Procedures

    CHAPTER 5: USER MENU DESCRIPTIONS AND PROCEDURES USER MENU DESCRIPTIONS This section provides more detailed descriptions of the selections found in the User Menu Chart. Factory-set defaults are shown in bold with a checkmark (√). NAME/CODE DESCRIPTION CODE/VALUE Selects the baud rate for data transmission through both serial ports 1200 2400√...

  • Page 24: User Menu Procedures

    NAME/CODE DESCRIPTION CODE/VALUE Selects the printed format for current date. Valid only when A3 is set 0√ Date Format to “1” and indicator contains Time and Date option. "0" = mm/dd/yy "1" = dd/mm/yy Actuates the function that allows entry of the current date. Valid only Press ZERO key Date Entry for indicators containing the Time and Date option.

  • Page 25: Time Entry (A10)

    5.2.2 LF (Line Feeds) Number Entry (A6) While in the User Menu mode, scroll to "A 6", then scroll down once using the ZERO key to enter the Line Feeds menu. The display will momentarily show "LF", followed by the current line feeds value. Use the four directional keys (shown in Figure 5-1 above) to adjust the displayed value to the actual line feeds value.

  • Page 26: Date Entry (A13)

    5.2.4 Date Entry (A13) If your indicator was ordered with the Time and Date option, it will keep track of the current date for you, which can then be printed on the print ticket. Use this procedure to set the current date, which must be set in mm/dd/yy format. For example, for January 7, 1998, you would enter 010798.

  • Page 27: Chapter 6: Calibration

    CHAPTER 6: CALIBRATION CALIBRATION OVERVIEW The indicator is calibrated by following the procedures embedded in F16 (Zero) and F17 (Span) of the Setup Menu. Each procedure enters a value into the indicator's non-volatile memory - F16 the zero value (deadweight) and F17 the span value (test weight). The minimum test weight that can be used is 1% of full-scale capacity.

  • Page 28: View Calibration Values (F18)

    4. After setting the exact value, press the NET/GROSS key to save the value. 5. If the calibration was successful, the display will show "EndC1" momentarily, then revert back up to F17. At this time it is suggested that the calibration values be recorded for future use (see Section 6.4).

  • Page 29: Key-In Span Calibration Value (F20)

    KEY-IN SPAN CALIBRATION VALUE (F20) Note: This procedure is intended for emergency use only in the case of non-volatile memory loss. A valid span calibration value, obtained from a successful F17 calibration procedure, must be used. 1. While in the Setup mode, scroll to "F 20", then scroll down once using the ZERO key. 2.

  • Page 30: Chapter 7: Operation

    CHAPTER 7: OPERATION 7.1 DISPLAY The Model S750-8/S750S-8 indicator utilizes a 6 digit LCD (Liquid Crystal Display) to display the weight and system information while the Model S750/S750S indicator utilizes a 6- digit LED (Light Emitting Diode) display. Typically, LCD’s are used for outdoor applications while LED’s are used indoors where brightness is needed.

  • Page 31: Keyboard

    STABLE This light is on whenever the scale is stable. TABLE 7-1: S750 Series Annunciator Definitions 7.2 KEYBOARD The keyboard is composed of five function keys. Refer to Figure 7-3 for the overall layout and key locations.

  • Page 32: General Scale Operation

    7.3 GENERAL SCALE OPERATION 7.3.1 WEIGHING AN ITEM Select the desired weighing unit by pressing the UNITS key until that unit is indicated on the display. 2. If necessary, press the ZERO key to obtain a weight reading of zero. 3.
  • Page 33 If the screen does not show “10 0”, press the TARE key once. The indicator is prompting you to place ten identical items on the platform. NOTE: If you wish to change the sample number, simply press the NET/GROSS key repeatedly until the desired sample number appears.

  • Page 34: Chapter 8: Legal For Trade Sealing

    CHAPTER 8: LEGAL FOR TRADE SEALING ABS ENCLOSURE The S750/S750-8 indicator in the ABS enclosure can be sealed for commercial (Legal for Trade) applications as follows. Power off the indicator by unplugging the power source. On the back of the indicator, locate the Setup/Calibration Slide Switch Cover Plate (see illustration below).

  • Page 35: Appendix A: Specifications

    APPENDIX A: SPECIFICATIONS ANALOG SPECIFICATIONS Full Scale Input Signal 30mV, including dead load Minimum Sensitivity - Non H-44 0.4 µV / grad Minimum Sensitivity - H-44 1.0 µV / grad Input Impedance 30MΩ, typical Internal Resolution Approximately 260,000 counts Display Resolution 50,000 display divisions max Measurement Rate 10 Meas/sec, nominal...

  • Page 36: Appendix B: Serial Port Information

    APPENDIX B: SERIAL PORT INFORMATION COM1 MODES B.1.1 FULL DUPLEX MODE The Full Duplex Mode for COM1 provides a Demand serial transmission mode. The Demand mode allows control from a host device, usually a PC, and can be activated by pressing the PRINT key on the indicator’s front panel.

  • Page 37: Recognized Host Commands

    B.1.1.1 RECOGNIZED HOST COMMANDS “P” - This command is sent to the indicator to print the indicated display. The indicator will not respond if the scale is in motion, positive overload or negative overload. “Z” - This command is sent to the indicator to zero the scale. The indicator will not respond if the scale is in motion, positive overload or negative overload.

  • Page 38: Com2 Mode

    DATE 06/05/98 TIME 12:34 PM 123456 GROSS 25.00 lb TARE 1.48 lb 23.52 lb 1234 0.019060 lb FIGURE B-3. Print Ticket INDICATOR PRINTER CTS 2 3 RXD TXD 3 20 DTR S. GND 5 7 S. GND DSUB9 DSUB25 FIGURE B-4. Cable Diagram for Indicator to Printer COM2 MODE B.2.1 SIMPLEX MODE The Simplex Mode provides a Continuous serial transmission mode.

  • Page 39: Appendix C: Determining Proper Span Gain (F2

    APPENDIX C: DETERMINING PROPER SPAN GAIN (F2) SPAN GAIN OVERVIEW The Span Gain parameter found in F2 of the Setup Menu is directly related to the ADC (Analog to Digital Converter) integration time. This means that the lower the setting, the higher the number of measurements per second.
  • Page 40 # of External Full Scale Input Range (mV/V) Grads 1,000 1,500 2,000 2,500 3,000 4,000 5,000 – 6,000 – 8,000 – 10,000 – – 12,000 – – 15,000 – – – 20,000 – – – – 30,000 – – – –...

  • Page 41: Appendix D: Displayed Error Codes

    Invalid setting code. Re-enter proper setting code from product ID tag. Code Entry Err 13 Setting Code Entry Non-volatile memory is in write-protect mode. Toggle position of Setup/Calibration Switch or JP2 jumper (See Chapter 3). Note: Contact Service Department at Salter Brecknell for instructions on how to re-enter setting code.
