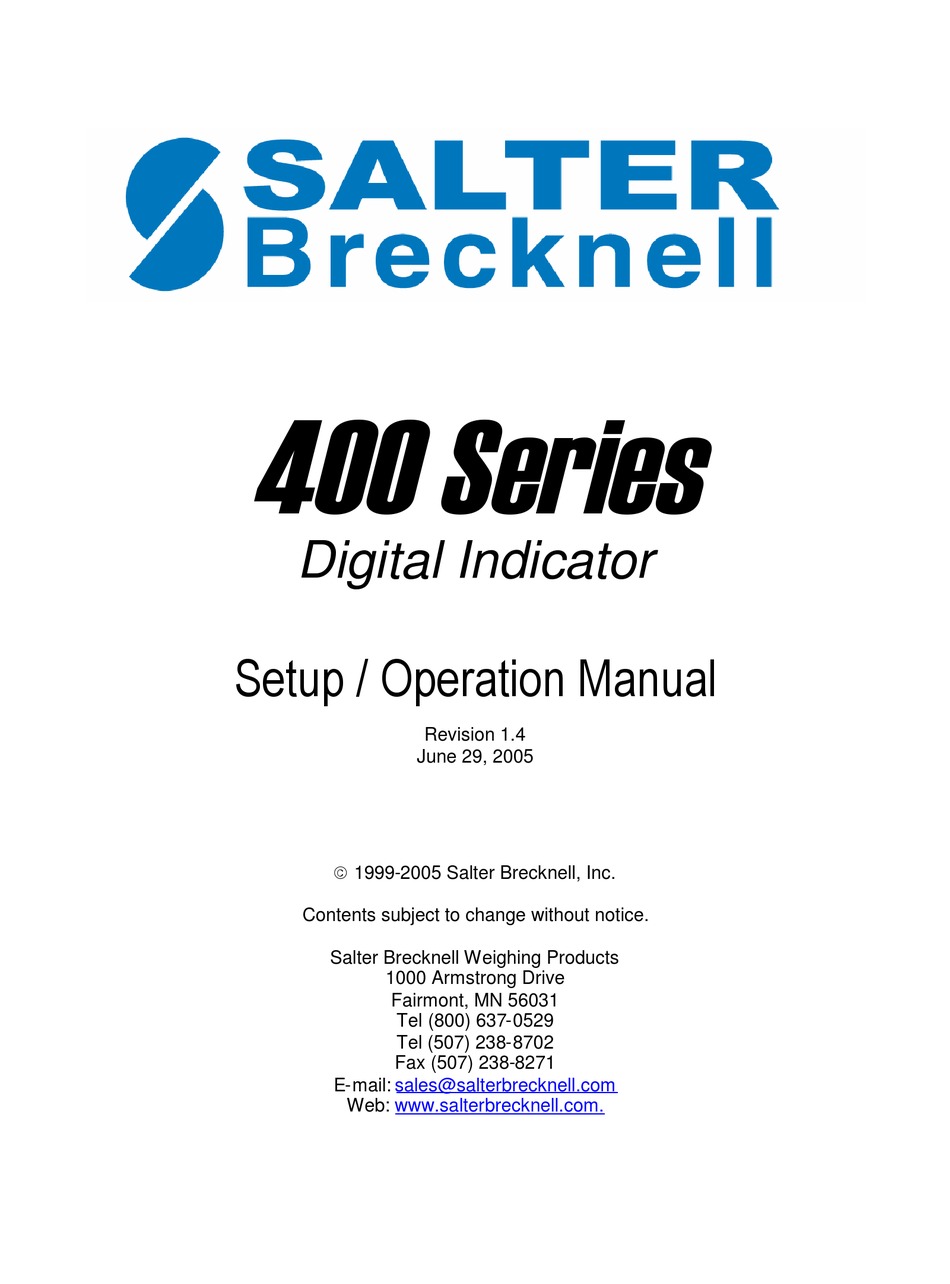

- Page 1 400 Series Digital Indicator Setup / Operation Manual Revision 1.4 June 29, 2005 1999-2005 Salter Brecknell, Inc. Contents subject to change without notice. Salter Brecknell Weighing Products 1000 Armstrong Drive Fairmont, MN 56031 Tel (800) 637-0529 Tel (507) 238-8702...
- Page 2 NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page Chapter 1: Introduction to the 400ES Indicator ................1-1 Chapter 2: Installation........................2-1 Stainless Steel Enclosure (400ES)................2-1 2.1.1 Connecting the Weigh Platform............... 2-2 2.1.2 Connecting the Serial Printer, Remote Display or Computer......2-2 2.1.3 Connecting the Power Supply ................. 2-3 Chapter 3: Configuration......................... - Page 4 Chapter 7: Operation ........................7-1 Display .......................... 7-1 7.1.1 Light Emitting Diode (LED) Display ..............7-1 Keyboard........................7-2 7.2.1 Function Keys ....................7-2 General Scale Operation ....................7-2 7.3.1 Weighing an item..................... 7-2 7.3.2 Taring an item of unknown weight..............7-3 7.3.3 Taring an item of known weight...............
- Page 5 LIST OF FIGURES 400ES Front Panel ......................... 1-1 400ES Main Circuit Board Overview ..................2-1 2-1a 400ES Main Circuit Board Overview – newer units..............2-1 Connection Assignments for the Load Cell Terminal (J8)............2-2 2-2a Connection Assignments for the Load Cell Terminal – newer units........2-2 Connection Assignments for the serial communication Terminal ..........
-
Page 6: 400Es Front Panel
CHAPTER 1: INTRODUCTION TO THE 400ES SERIES DIGITAL INDICATORS The 400ES Series Digital Indicator is a general purpose, industrial grade weight indicator featuring keyboard tare and stainless steel enclosure. It can readout up to 50,000 display divisions on its 0.56” tall LED display and can supply enough current for up to 4-350 load cells. All setup parameters may be entered via the front panel keys, including calibration. -
Page 7: Chapter 2: Installation
CHAPTER 2: INSTALLATION STAINLESS STEEL ENCLOSURE (400ES) For indicators contained in a stainless steel enclosure, the rear cover must first be removed to make the appropriate connections to the weigh platform, printer, remote display and power supply. To remove the rear cover, simply remove the screws that secure it to the enclosure and set aside. -
Page 8: Connecting The Weigh Platform
2.1.1 CONNECTING THE WEIGH PLATFORM 1. Connect your shielded load cell cable (not included) to terminal J8 on the main board. Connection assignments for the Load Cell Terminals are shown in Figures 2- 2 and 2-2a. E– S– Figure 2-2: Connection assignments for the Load Cell Terminal (J8) Figure 2-2a: Connection assignments for the Load Cell Terminal –... -
Page 9: Chapter 3: Configuration
CHAPTER 3: CONFIGURATION CONFIGURATION OVERVIEW The indicator contains two main setup menus: The Setup (“F”) menu, which configures the indicator to your weigh platform and the User (“A”) menu, which configures the serial communication port and enables some user options. The Setup and User menus consist of several menu selections, each with its own sub-menu of choices. -
Page 10: Notes On The Setup Menu
4. To save a new selection, press the NET/GROSS (Set) key .To exit without saving, press the 1 (up) key to return to the current “F” heading. 5. Repeat Steps 1 through 4 until the Setup Menu is programmed. SETUP MENU MODE KEY FUNCTIONS GROSS Figure 3-1: Setup Menu Key Assignments Grads... -
Page 11: User ("A") Menu
Note: If your indicator is an older model and does not have the slide switch on the rear cover, follow these instructions instead: 400ES 1. Remove the rear cover and locate jumper JP2. 2. Position the shunt block as shown at right. Note: On certain units, the shunt block position will be exactly the opposite. -
Page 12: Notes On The User Menu
Baud Rate Data Bits, Parity Transmission Mode Display Check Enable lb/kg Key 8n 7O 7E Press #2 key to begin 1200 2400 4800 9600 Serial Port Mode ID No. Entry No. of Line Feeds ID No. Enable Press #2 Press #2 key to begin key to begin Handshaking Enable... -
Page 13: Chapter 4: Setup Menu Descriptions And Procedures
CHAPTER 4: SETUP MENU DESCRIPTIONS AND PROCEDURES SETUP MENU DESCRIPTIONS This section provides more detailed descriptions of the selections found in the Setup Menu Chart. Factory-set defaults are shown in bold with a checkmark ( ). Table 4-1 shows the selections that are not allowed for “Legal-for-Trade” applications: NAME/CODE DESCRIPTION CODE/VALUE... - Page 14 NAME/CODE DESCRIPTION CODE/VALUE Determines the desired weight increments. Value should be 1 Display consistent with legal requirements. Divisions Determines location of the decimal point. 0 Decimal Pt. 0.00 0.000 0.0000 Places indicator into the zero calibration routine. Scrolling down with Press #2 key to the #2 key one level begins the procedure.
-
Page 15: Chapter 5: User Menu Descriptions And Procedures
CHAPTER 5: USER MENU DESCRIPTIONS AND PROCEDURES USER MENU DESCRIPTIONS This section provides more detailed descriptions of the selections found in the User Menu Chart. Factory-set defaults are shown in bold with a checkmark ( ). NAME/CODE DESCRIPTION CODE/VALUE Selects the baud rate for data transmission through the serial port. 1200 2400 Baud Rate... -
Page 16: User Menu Procedures
Newer units only NAME/CODE DESCRIPTION CODE/VALUE Enables hardware handshaking for Print Ticket Mode. Valid only 0 Handshaking when A6 is set to “1”. Enable "0" = Disable Handshaking "1" = Enable Handshaking Tells MP-20 printer to print the header information. Valid only when 0... -
Page 17: Chapter 6: Calibration
CHAPTER 6: CALIBRATION CALIBRATION OVERVIEW The indicator is calibrated by following the procedures embedded in F16 (Zero) and F17 (Span) of the Setup Menu. Each procedure enters a value into the indicator's non-volatile memory - F16 the zero value (deadweight) and F17 the span value (test weight). The minimum test weight that can be used is 1% of full-scale capacity. -
Page 18: View Calibration Values (F18)
VIEW CALIBRATION VALUES (F18) Note: The values displayed in this procedure are valid only after a successful calibration has been performed using F16 and F17. 1. While in the Setup mode, scroll to "F 18", then scroll down once using the #2 key to enter View calibration menu. -
Page 19: Chapter 7: Operation
CHAPTER 7: OPERATION 7.1 DISPLAY The Model 400ES indicator utilizes a 6-digit LED (Light Emitting Diode) display. Table 7-1 summarizes the display annunciators. 7.1.1 LIGHT EMITTING DIODE (LED) DISPLAY Figure 7-1 shows the display detail of the 400ES LED display. TARE ZERO MOTION... -
Page 20: Keyboard
7.2 KEYBOARD The keyboard is composed of five function keys. Refer to Figure 7-2 for the overall layout and key locations. SAVE ZERO GROSS TARE DISP T PRINT FIGURE 7-2: Function Keys Layout 7.2.1 FUNCTION KEYS 0 - 9 – These keys allow numeric entry where applicable, such as keyboard tare entry. -
Page 21: Taring An Item Of Unknown Weight
7.3.2 TARING AN ITEM OF UNKNOWN WEIGHT To weigh an item in a container, the weight of that container must first be subtracted from the overall weight to obtain an accurate weight reading. This is known as taring. For your convenience, the 400ES indicator retains this tare weight value even when the unit is powered off. 1. -
Page 22: Entering An Id Number
7.3.5 ENTERING AN ID NUMBER NOTE: To use this feature, ID Number and Print Ticket mode must be enabled in the User Menu. See Chapter 4 for more information. Normally, the ID Number value set in the User Menu is printed on the print ticket. If you wish instead to key-in a new ID Number each time a ticket is printed, you may follow the procedure below before pressing the 0 (PRINT) key. -
Page 23: Chapter 8: Legal For Trade Sealing
CHAPTER 8: LEGAL FOR TRADE SEALING STAINLESS STEEL ENCLOSURE The 400ES indicator in the stainless steel enclosure can be sealed for commercial (Legal for Trade) applications as follows. 1. Power off the indicator. 2. On the rear cover of the indicator, locate the calibration switch cover. 3. -
Page 24: Appendix A: Specifications
APPENDIX A: SPECIFICATIONS ANALOG SPECIFICATIONS Full Scale Input Signal 30mV, including dead load 0.4 V / grad Minimum Sensitivity - Non H-44 1.0 V / grad Minimum Sensitivity - H-44 Input Impedance 30M , typical Internal Resolution Approximately 330,000 counts at 3 mV/V, span gain = 200 Display Resolution 50,000 display division max Measurement Rate... -
Page 25: Appendix B: Serial Port Information
APPENDIX B: Serial Port INFORMATION SERIAL PORT MODES B.1.1 FULL DUPLEX MODE The Full Duplex Mode provides a Demand serial transmission mode and is selected by setting A3 to “d” and A6 to “0”. The Demand mode allows control from a host device, usually a PC, and can be activated by pressing the PRINT key on the indicator’s front panel. -
Page 26: Recognized Host Commands
B.1.1.1 RECOGNIZED HOST COMMANDS “P” - This command is sent to the indicator to print the indicated display. The indicator will not respond if the scale is in motion, positive overload or negative overload. “Z” - This command is sent to the indicator to zero the scale. The indicator will not respond if the scale is in motion, positive overload or negative overload. -
Page 27: Simplex Mode
B.1.3 SIMPLEX MODE The Simplex Mode provides a continuous serial transmission mode and is selected by setting A3 to “C” and A6 to “0”. The Continuous mode is used to interface to computers, scoreboards, and other remote devices requiring constant data updating. The transmission occurs at the end of each display update. -
Page 28: Appendix C: Determining Proper Span Gain (F2
APPENDIX C: DETERMINING PROPER SPAN GAIN (F2) SPAN GAIN OVERVIEW The Span Gain parameter found in F2 of the Setup Menu is directly related to the ADC (Analog to Digital Converter) integration time. This means that the lower the setting, the higher the number of measurements per second. - Page 29 # of External Full Scale Input Range (mV/V) Grads 1,000 1,500 2,000 2,500 3,000 4,000 5,000 – 6,000 – 8,000 – 10,000 – – 12,000 – – 15,000 – – – 20,000 – – – – 30,000 – – – –...
-
Page 30: Appendix D: Displayed Error Codes
APPENDIX D: DISPLAYED ERROR CODES CODE MODE MEANING / POSSIBLE SOLUTION Normal Operating Gross Overload. A weight greater than the rated capacity has been Mode applied to the scale. Remove the weight from the platter or try re- calibrating the scale. Otherwise, check for a bad load cell connection or possible load cell damage due to overloading.
