5.a Prepare the surface where the unit is to be mounted. Make sure that the surface is flat, leveled and that it supports the weight
of the unit. Perform the installation in accordance with local rules and regulations.
5.b Drill the holes in the wall.
5.d.e Hang the unit to the wall by means of the fixing brackets and screw safely (screws and wall plugs not supplied).
5.f Make sure that the unit is at spirit level.
5.g Connect the supplied condensation elbow(s) to the drainage hole(s) in the opening at the bottom of the unit: in case close
and seal the non-used hole with the 2 supplied plugs (one each side of the hole). Make sure of water and air tightness of all
connections. It is necessary to use a U-bend (or similar) in the condensation drainage pipe. The water drainage connections
can be made either through the holes at the bottom side of the casing or through the opening at the rear side of the casing.

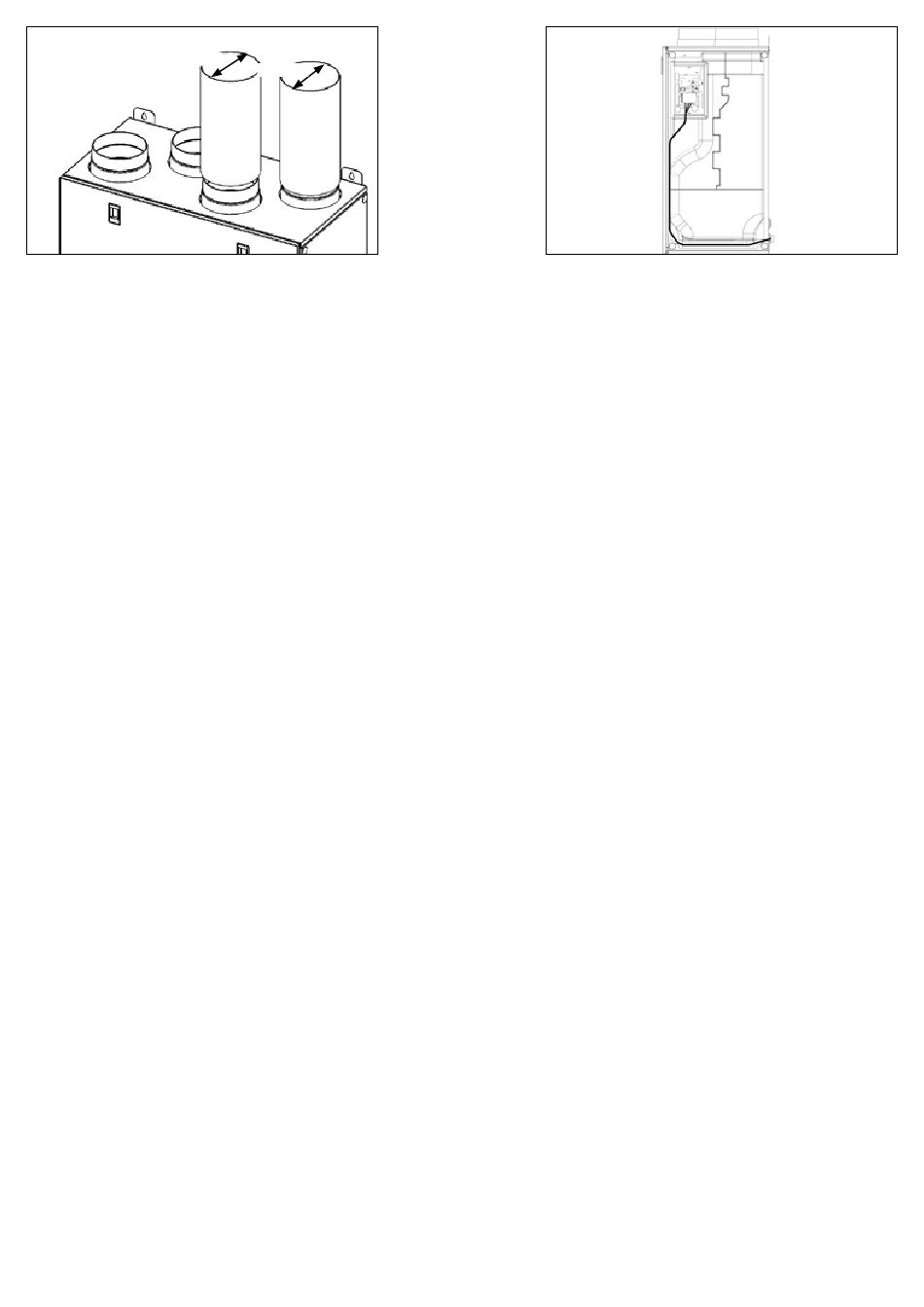

5.h Connect the unit to the duct system. Make sure that all necessary accessories are used to create a functional ventilation
solution.
5.i Connect the unit electrically according to point 5.4. Check that it starts up correctly.
