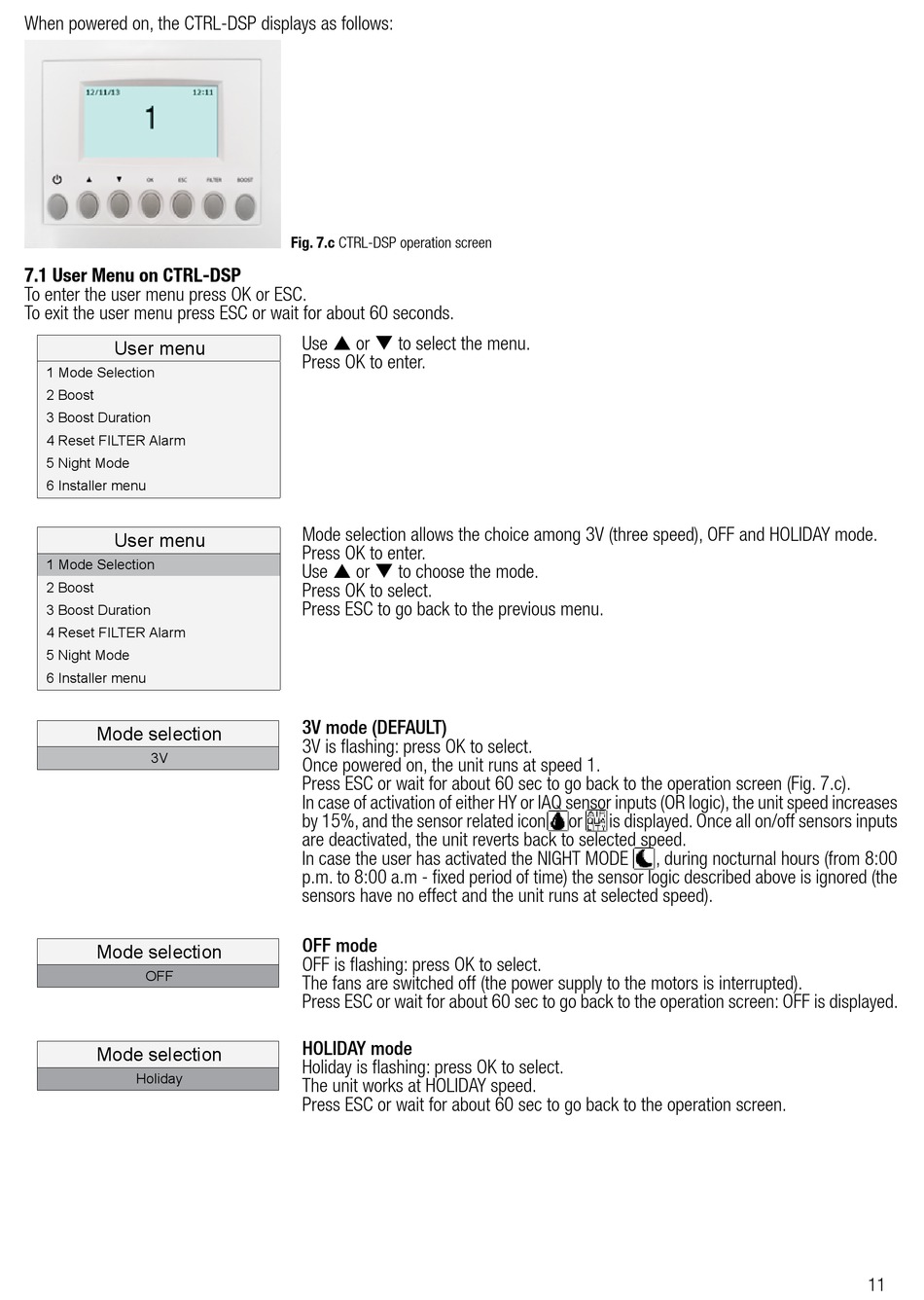

When powered on, the CTRL-DSP displays as follows:

7.1 User Menu on CTRL-DSP

To enter the user menu press OK or ESC.
To exit the user menu press ESC or wait for about 60 seconds.
User menu
1 Mode Selection
2 Boost
3 Boost Duration
4 Reset FILTER Alarm
5 Night Mode
6 Installer menu
User menu
1 Mode Selection
2 Boost
3 Boost Duration
4 Reset FILTER Alarm
5 Night Mode
6 Installer menu
Mode selection
3V
Mode selection
OFF
Mode selection
Holiday
Fig. 7.c CTRL-DSP operation screen
Use  or  to select the menu.
Press OK to enter.
Mode selection allows the choice among 3V (three speed), OFF and HOLIDAY mode.
Press OK to enter.
Use  or  to choose the mode.
Press OK to select.
Press ESC to go back to the previous menu.
3V mode (DEFAULT)
3V is flashing: press OK to select.
Once powered on, the unit runs at speed 1.
Press ESC or wait for about 60 sec to go back to the operation screen (Fig. 7.c).
In case of activation of either HY or IAQ sensor inputs (OR logic), the unit speed increases
by 15%, and the sensor related icon
are deactivated, the unit reverts back to selected speed.
In case the user has activated the NIGHT MODE , during nocturnal hours (from 8:00
p.m. to 8:00 a.m - fixed period of time) the sensor logic described above is ignored (the
sensors have no effect and the unit runs at selected speed).
OFF mode
OFF is flashing: press OK to select.
The fans are switched off (the power supply to the motors is interrupted).
Press ESC or wait for about 60 sec to go back to the operation screen: OFF is displayed.
HOLIDAY mode
Holiday is flashing: press OK to select.
The unit works at HOLIDAY speed.
Press ESC or wait for about 60 sec to go back to the operation screen.
or is displayed. Once all on/off sensors inputs
