curt 16028 Installation Manual

INSTALLATION MANUAL

Level of Difficulty

Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.

Weight Carrying Capacity

Gross trailer weight (GTW)
Vertical load

Parts List

Item Qty Description
1 1 Leg assembly, passenger side
2 1 Leg assembly, driver side
3 1 Cross support weldment
4 4 Hex bolt, M14 x 75, CL 8.8
5 4 Flat washer, M14
6 4 Nylock nut, M14

Tools Required

Torque wrench Socket set
NOTICE
Visit www.curtmfg.com for a full-color
copy of this instruction manual, as well as
helpful videos, guides and much more!
Before you begin installation,
read all instructions thoroughly.
Proper tools will improve the quality of
installation and reduce the time required.
Periodic inspection of your product should
be performed to ensure all hardware and /
or components remain secure.
To help prevent damage to the product
or vehicle, refer to the specified torque
specifications when securing hardware
during the installation process.

Product Registration and Warranty

CURT stands behind our products with
industry-leading warranties. To get copies
of the product warranties, register your
purchase or provide feedback, visit:
warranty.curtgroup.com/surveys
CURTMFG.COM
• PRODUCT SUPPORT: 877.287.8634

DANGER ZONE PRECAUTIONS

Block all trailer tires in front and behind with appropriate wheel chocks. Do not
substitute objects such as, but not limited to: stones, wood blocks, etc. Front
trailer lifting jacks must be supporting the trailer and resting on a firm and level surface.
Towing vehicle must be stationary with automatic transmission
in park (manual in neutral), emergency brake applied and engine off.
WARNING
30,000 lbs. Fully instruct and demonstrate the operation of this 5th wheel hitch to the end user. Include the
importance of observing all warnings contained herein, including warning labels on 5th wheel
7,000 lbs.
hitch main body. Provide this manual in its entirety to the end user. Serious injury or death may
result if the warnings above are not observed.
Do not expose hands, body parts or clothing between the truck and
trailer or the truck's bed sides and trailer. If you must place any part
of your body under trailer or between truck and trailer, you must:
1. Block all trailer tires with wheel chocks.
2. Make sure trailer landing gear / jacks are resting on a firm, level surface.
3. Towing vehicle must be stationary with auto transmission in park
(manual in neutral), emergency brake applied and engine off.
Never exceed the towing capacity (trailer and contents combined)
of any towing system component or your vehicle.
Improperly coupled trailers can separate or drop without notice,
causing serious injury or death. To reduce the chance of serious injury or death:
Never attempt to couple trailer without reading and following all instructions thoroughly.
Always follow operating instructions to secure trailer to tow vehicle.
Make sure the hitch is secure before towing.
Prior to towing, ensure all components and hardware are structurally sound and secure.
Always chock the trailer to prevent movement while coupling the hitch.
Always ensure lynch pins are installed through handle and center pivot pin before towing.
Always keep hands clear of the 5th wheel jaws when operating the handle.
Always perform a pull test prior to towing. See 'pull test' later in this instruction manual.
Never position anyone under the trailer's kingpin area during coupling and uncoupling.

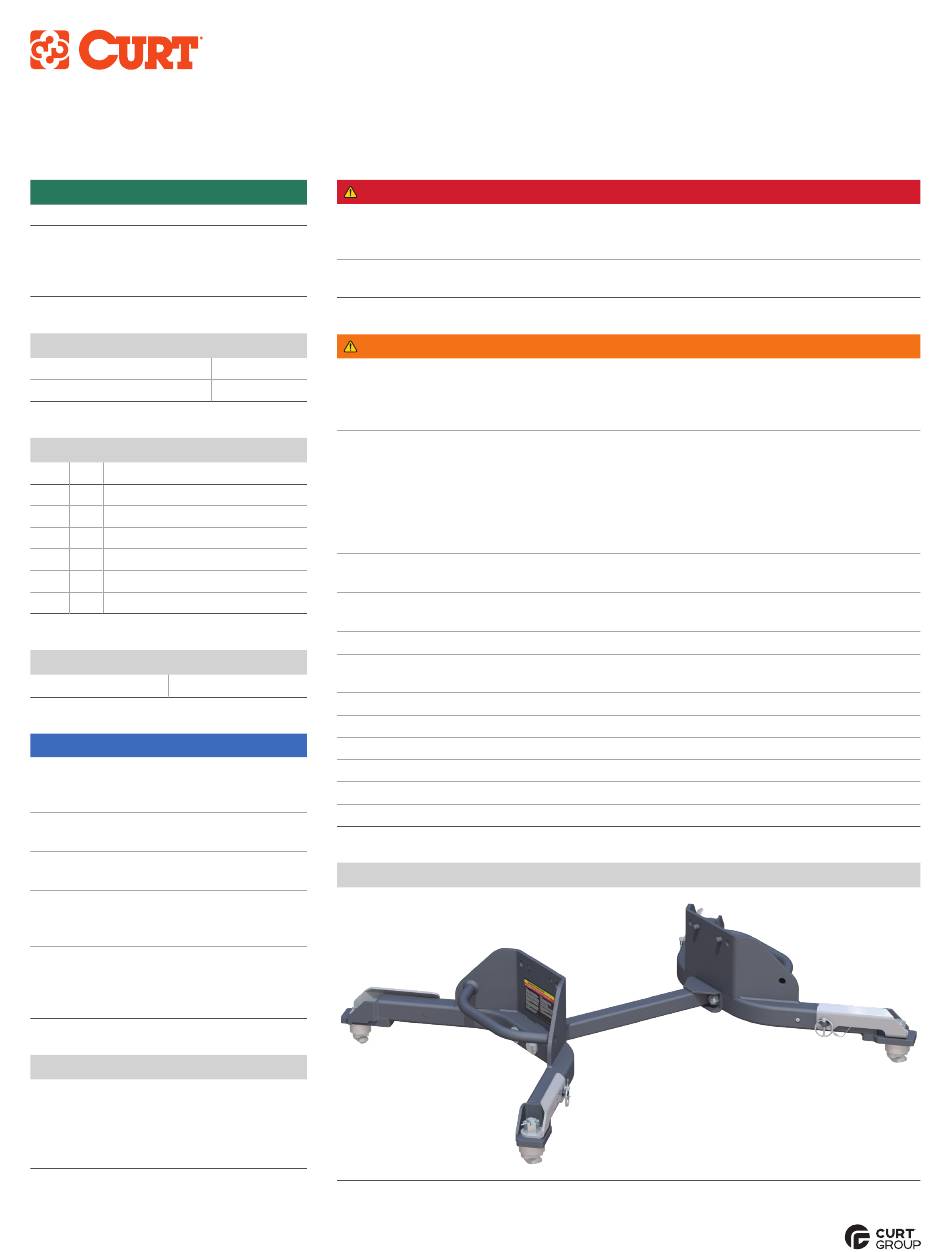

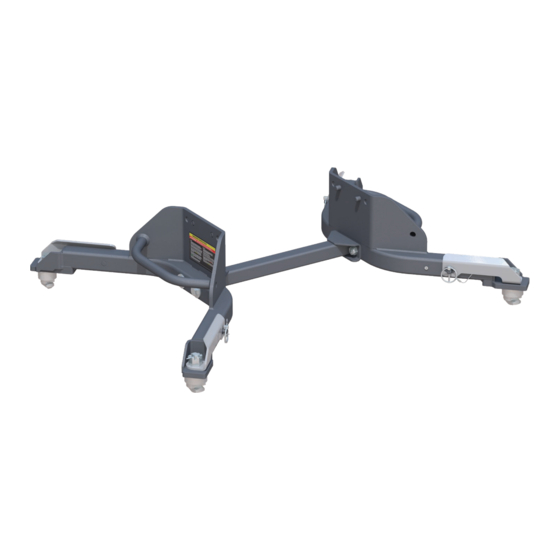

Product Photo
• 16028-INS-RA • 02/15/2021 • ECN8044 • PAGE 1
16028
