YEARS: 2012-PRESENT
MAKE:
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
WEIGHT CARRYING:
INSTALLATION TIME:
THE
INSTALL TIME LISTED IS FOR PROFESSIONAL
INSTALLERS. IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
INSTALLATION REQUIRES:
TORQUE
RATCHET
WRENCH
10mm
17mm
11/16"
SCREW
DRIVER
SOCKET
SAFETY
GLASSES
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing LLC. may repair or replace
the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. Curt Manufacturing LLC.'s liability is limited to repair or replacement
of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
13119

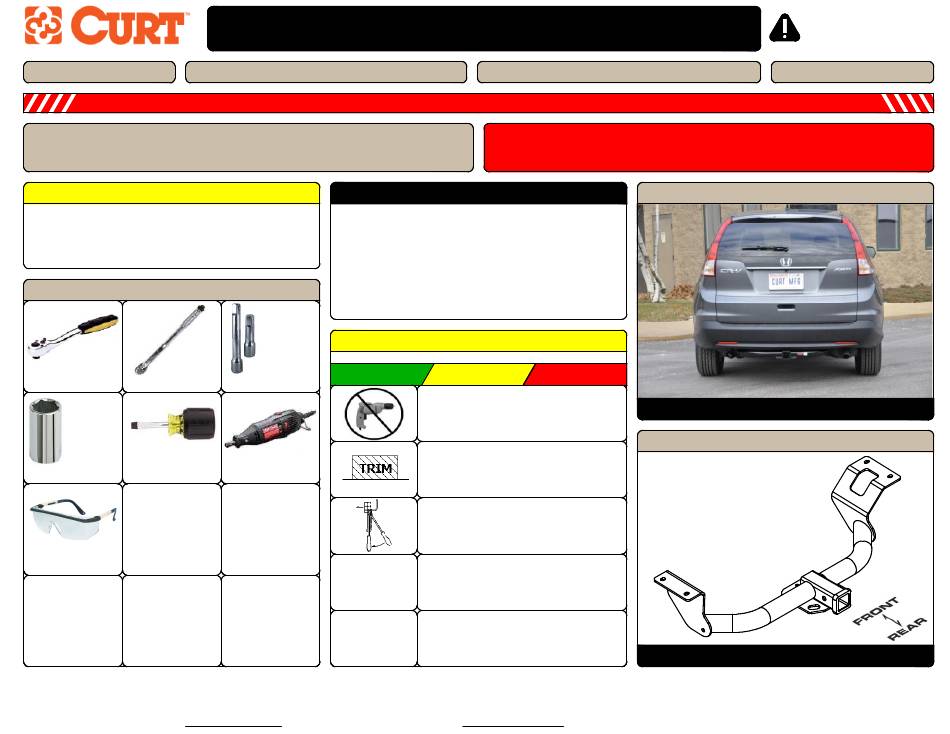

INSTALLATION INSTRUCTIONS
HONDA
TRAILER WEIGHT:
LBS.
3,500
TONGUE WEIGHT:
350
LBS.
30
MIN.
INSTALLATION TIPS:
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
4. NEED HELP OR HAVE SOME QUESTIONS?
CALL TECHNICAL SUPPORT AT 800.798.0813
9"
LEVEL OF DIFFICULTY:
SOCKET
EASY
EXTENSION
ROTARY TOOL
MODEL: CR-V
WARNING:
WE RECOMMEND THE USE OF 18050 STABILIZING STRAPS FOR ALL NON-TRAILER
(WHEEL-LESS) LOADS. PLEASE SEE THE CURT CATALOG OR VISIT US ONLINE AT
WWW.CURTMFG.COM FOR FURTHER INFORMATION.
MODERATE
MODERATE
CHALLENGING
- NO DRILLING REQUIRED
- UNDERBODY PANEL
TRIMMING REQUIRED
- LOWER EXHAUST
Safety glasses should be
worn at all times while
installing this product .
STYLE:
VEHICLE PHOTO:
REPRESENTATIVE PHOTO

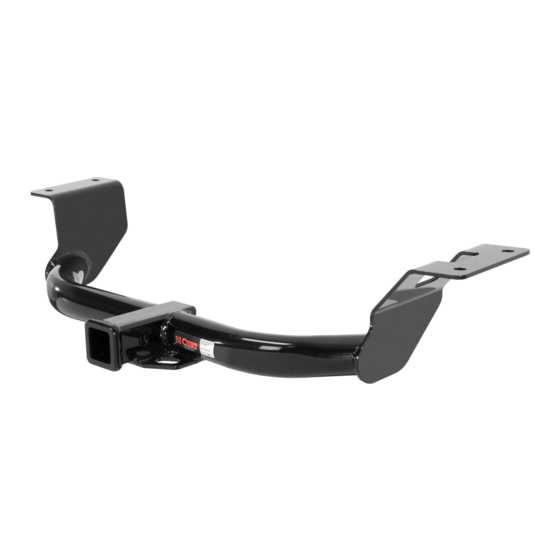

HITCH ILLUSTRATION:
MAKE SURE YOUR HITCH MATCHES
SUV
1/28/2013

Advertisement

loading
Need help?

Need help?

Do you have a question about the 13119 and is the answer not in the manual?

Questions and answers

Summary of Contents for curt 13119

  • Page 1 CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing LLC. may repair or replace...
  • Page 2 INSTALLATION WALKTHROUGH: 1. Remove (10) fasteners and lower underbody panel. Parts List ITEM PART NUMBER DESCRIPTION 7_16 - 14 x 1.75" x 1.00" C-C U-BOLT 7/16-14 HEX FLANGE NUT M10 - 1.25 x 30 HEX BOLT 7/16" CONICAL TOOTHED WASHER 2.
  • Page 3 INSTALLATION WALKTHROUGH: 3. Mark and trim underbody panel. Reattach underbody panel 5. Torque all 7/16" hardware to 50 ft-lbs. using fasteners removed in Step (1). Note: Dimensions are Torque all 10mm hardware to 48 ft-lbs. approximate, confirm fit prior to trimming. Use ribs of the underbody panel as cutting guides.
  • Page 4 ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND. Curt Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase.
  • Page 5: Installation Steps

    ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND. Curt Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase.
