INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit numbers AS20035, AS20036 (connection kits), AS20047, AS20048,
AS20049, AS20050 (tank kits)
SYNOPSIS:
This kit contains the parts needed to install the os3 satellite dispenser system and transport
containers.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: Ambient temperature must be between 50- 110° F
(10- 43° C) in area where os3 is installed.
(Estimated time to complete: 1.25 hours)
Refer to schematic on the last page of this document (Fig. 54) for system level plumbing reference.
North America: Account number for labor
charges related to installing the os3: 63012.
Authorizing Name: Orbio
Europe (CE) Installs: Account number for labor
charges related to installing the os3 Cleaning
Solution Generator: 609040. Authorizing Name:
Orbio
PREPARATION:
1. Consult the Site Survey (Evaluation)
document to determine the location for os3
satellite station and any other site specific
installation requirements.
NOTE: If volume dispensed for 1 minute at 35 psi
is less than 2.5 gallons (9.5 liters), replace the
yellow eductor in port 1 with the provided brown
eductor. Refer to Site Survey (Evaluation)
document for water pressure information.
IB DM20075 (03- 2019)
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.
No. DM20075
Machine: os3
Published: 03- 2019
Rev. 05

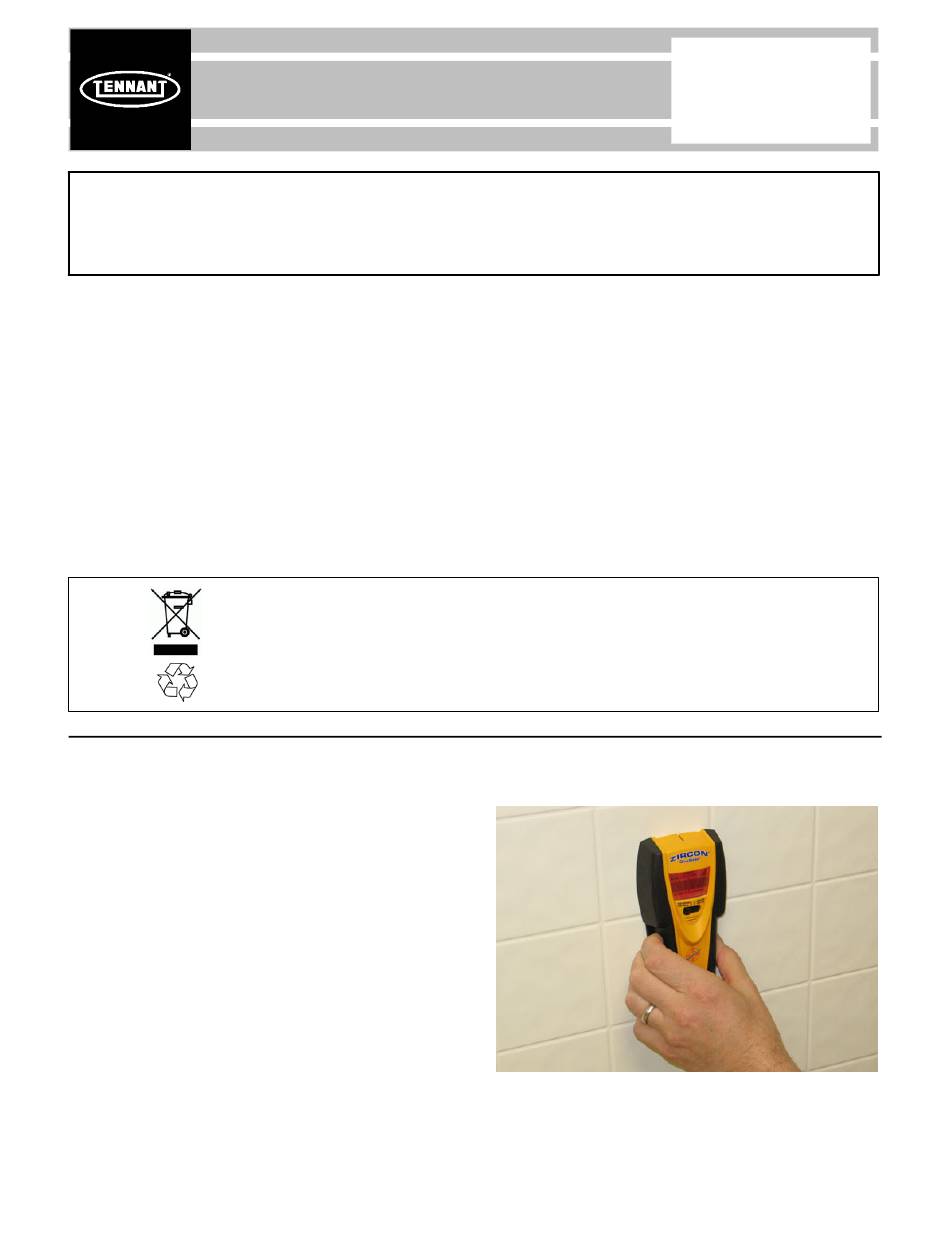

2. Use stud finder to locate studs behind the
wall. Mark stud locations on the wall. (Fig. 1)
FIG. 1
