INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9003489
SYNOPSIS:
This kit contains the parts needed to install a strobe light/alarm kit on M20 and T20 machines.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 1.5 hours)
PREPARATION:
1. Park the machine on a clean level surface, turn
off the machine, remove the key, and set the
parking brake.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, set parking
brake, turn off machine, and remove key.
2. Open the front shroud and the engine shroud.
3. Disconnect the negative terminal and then the
positive terminal from the battery.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.
NOTE: If installing the strobe light (13) onto the
bracket (5), proceed to the instructions beginning
on this page. If installing the strobe light (13) onto
the overhead guard, proceed to the instructions
starting on page 6.
IB 340857 (03- -2007)
INSTALLATION: (w/strobe light (13) installed
onto bracket (5))

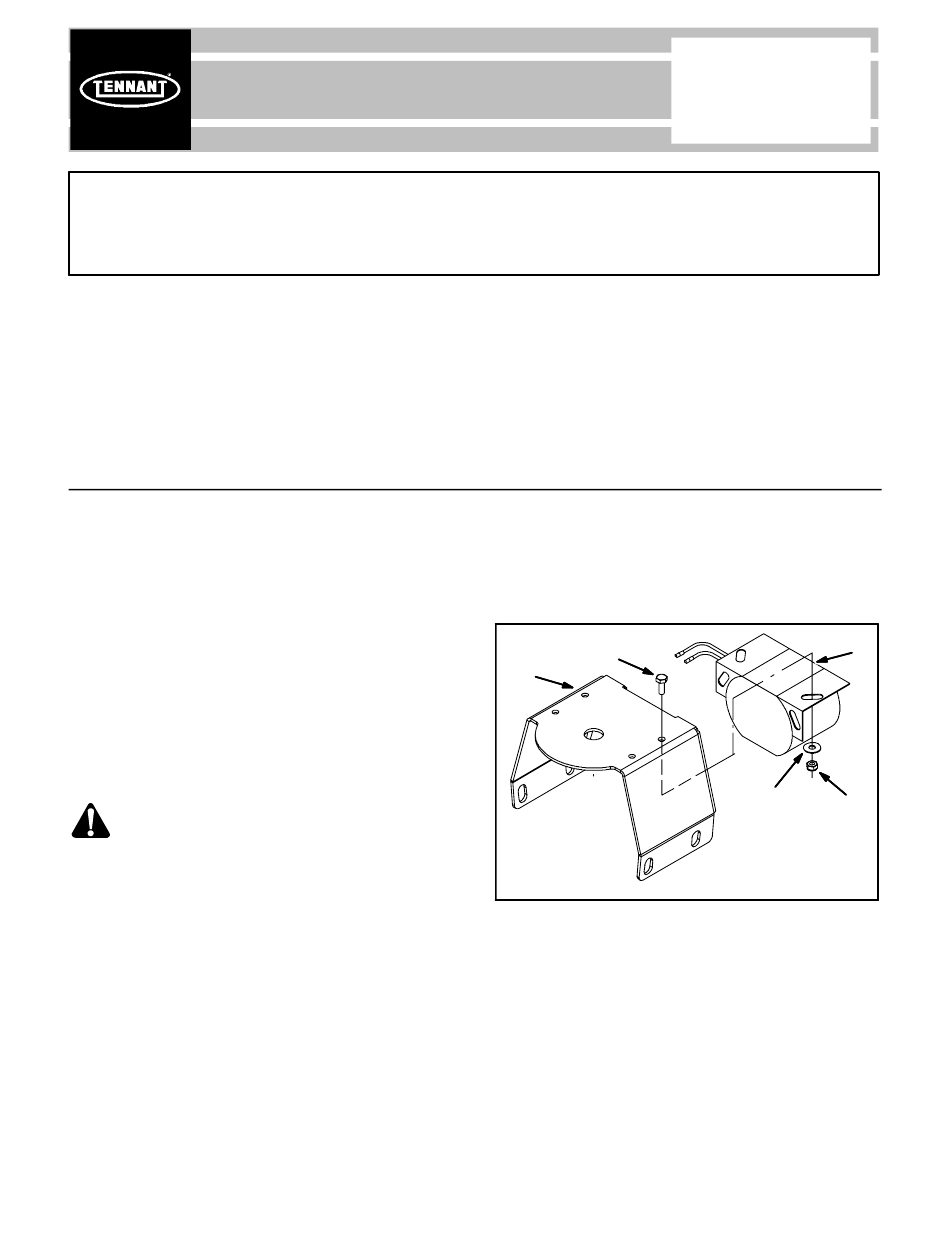

1. Use two hex screws (2), two flat washers (3),
and two hex nuts (4) to install the backup
alarm (1) onto the bracket (5). Refer to Fig. 1.
2
5
FIG. 1
No. 340857
Machine: M20 / T20
Published: 03- -2007
Rev. 00
1
3
4
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9003489 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tennant 9003489

  • Page 1 NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials. Installation instructions for kit number 9003489 SYNOPSIS: This kit contains the parts needed to install a strobe light/alarm kit on M20 and T20 machines.
  • Page 2 2. Route the wires from the strobe light (13) 4. Open the recovery tank cover and pull the down through the hole in the light support main wire harness backup alarm and bracket (5) and use a hex screw (2), flat revolving light connector from between the washer (3), and hex nut (4) to install the light recovery and solution tank.
  • Page 3 6. Use three hex screws (6) and three flat 8. Connect the wires from the backup alarm (1) washers (7) to install the bracket (5) onto the and the strobe light (13) to the warning/ back of the machine. Refer to Fig. 6. backup harness (8).
  • Page 4 Note: Following items are not used when strobe light (13) is installed onto support bracket (5): (9) 1019647 Overhead Guard Warning Harness- -Qty 1 (10) 10632- -17 Rubber Grommet- -Qty 4 (11) 49266 7.3” Nylon Cable Tie- -Qty 2 (12) 763115 6” Nylon Cable Tie- -Qty 4 FIG.
  • Page 5 Backup / Warning Harness (9) Main Wire Harness FIG. 9 IB 340857 (03- -2007)
  • Page 6 INSTALLATION: (w/strobe light (13) installed 2. Insert a grommet (10) into the hole in the onto overhead guard) operator compartment panel and the hole on top the overhead guard. Refer to Fig. 3 and 1. Pull the insulation away from the operator Fig.
  • Page 7 5. Insert a grommet (10) into the rear hole in the 8. Use four cable ties (12) to secure the warning/ rear cross member of the overhead guard and overhead harness (9) to the leg of the route the warning/overhead harness (9) overhead guard.
  • Page 8 11. Open the recovery tank cover and pull the 13. Connect the wires from the backup alarm (1) main wire harness backup alarm connector to the warning/ backup harness (8). Refer to from between the recovery and solution tank. Fig. 14. Connect the warning/backup harness (8) to 14.
  • Page 9 REAR Connect to wires from strobe light (13) Refer to Fig. 7 and FRONT Fig. 8 for locations of wire ties (12) on leg of overhead guard Connect to main Locations for cable ties (11) wire harness securing warning/overhead harness (9) to top of overhead guard REAR FIG.
  • Page 10 Main Wire Harness Warning/OHG Harness (9) FIG. 13 IB 340857 (03- -2007)
  • Page 11 Backup / Warning Harness (9) Main Wire Harness FIG. 14 IB 340857 (03- -2007)
  • Page 12 Bill of Materials for A/V Kit, Strobe, CI [M20/T20]- -9003489 Tennant Part No. Ref. Description Qty. 9003489 A/V Kit, Strobe, CI [M20/T20] 61920 Alarm Assy, Backup, 12--24vdc 82--107dba 24196 Screw, Pan, M5 X 0.8 X 20, SS 19066 Washer, Flat, #10 09739 Nut, Hex, Lock, M5 X 0.80, NL, SS...
