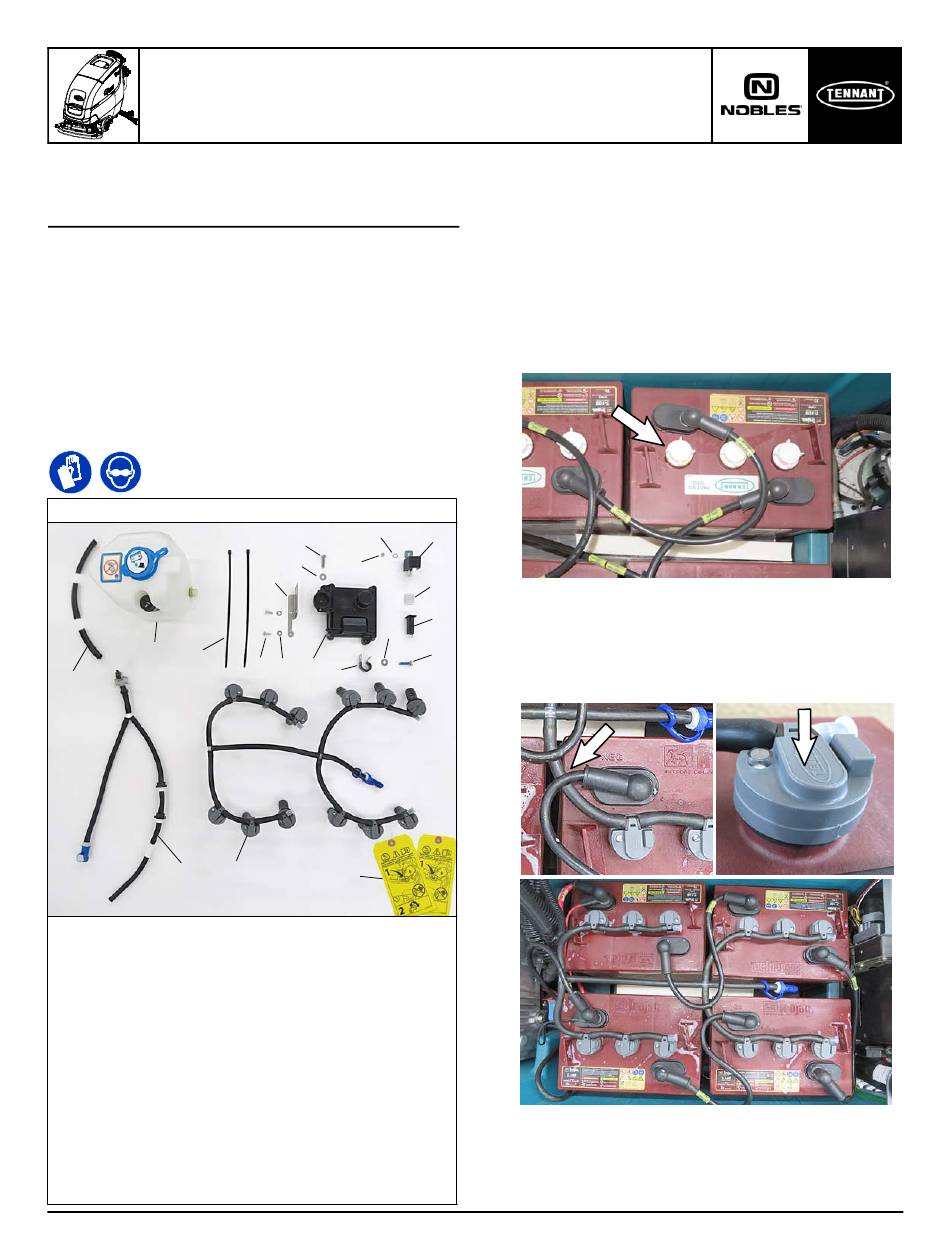

KIT NO. 9021125
Smart-Fill™
Automatic Battery Watering Kit
Models: T500/T500e/Speed Scrub 500 (Manufactured After Serial Number 10995399)
This kit includes the necessary part to add an automatic battery watering (ABW) system on models equipped with 4- 6V
TROJAN batteries. This kit allows for a safer, quicker and easier way to maintain the proper electrolyte levels in your
batteries. Kit installation to be performed by TennantTrue
INSTALLATION INSTRUCTIONS:
Installation Time: 1 hour
Kit Installation Requirements: Tennant ServiceLink
computer or a computer with Wi-Fi connection to access
the Tennant Service Application Software, and USB cable
(not included p/n 1071235).
Computer System Requirements: Windows
Microsoft .NET Framework 4.5 or later, USB Port.
Tools Required: 10mm socket wrench, Philips screwdriver
FOR SAFETY: Wear personal protection equipment.
Avoid contact with battery acid.

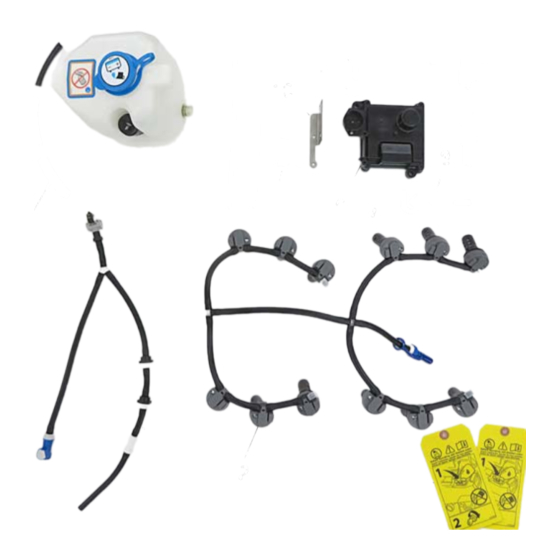

9021125 - Kit Contents
3
5
4
1
Item Part No. Description
1
1246536 Delivery Assy, Water, Battery [ABW]
2
1253640 Distribution Assy, Water, Battery [ABW]
3
9021093 Tank Assy, ABW 2.3L
4
1020168 Molding, Trim, Pvc
5
130773
Tie, Cable, Nyl, 11.0L, 14w, 3.0
6
9040160 Module, 24VDC [ABW]
7
1016005 Screw, Hex, M6x1.00x25, NL,FL,SS
8
01684
Washer, Flat, 0.27B 0.69D .05, SS
9
40678- 1 Clamp, Cable, Stl, 0.88Dx0.62w, 1hole
10
1252827 Plate, Mtg, ABW
11
1018155 Screw, Pan, Phl, M5x0.80x16, TCUT, SS
12
01683
Washer, Flat, 10, ss
13
1228510 Relay, 24V, 80A,Spst (T500e/SS500 Models) 1
14
09739
Nut, Hex, Lock, M5x0.80, nl, ss
15
1064187 Circuit breaker, 10.0A Reset- able
16
1064191 Boot, Circuit breaker
17
1253250 Tag, Battery Watering Instructions
9021129 Rev. 00 (04- 2021)
7 OS,
12
7
8
14
10
8
11
12
6
9
2
17
®
service or an authorized Tennant service provider.
FOR SAFETY: Before servicing machine, park
machine on level surface, remove key and disconnect
battery cables.
1. Before installing kit, make sure batteries are fully
charged.
2. After fully charging batteries, carefully remove the white
battery caps from all batteries and properly dispose
caps (Figure 1).
13
16
3. Carefully install the new battery watering distribution
15
assembly on the batteries as shown. Route the hose
assembly under the battery cables to avoid risk of caps
7
becoming unseated or hose being kinked (Figure 2).
Route hose under
battery cable
Qty.
1
1
1
3
2
1
2
2
1
1
2
3
1
1
1
1
Tennant Company
Page 1 of 9
Fig. 1
Push cap down until it
"clicks" into position
Fig. 2
www.tennantco.com
