INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 9009817

SYNOPSIS:

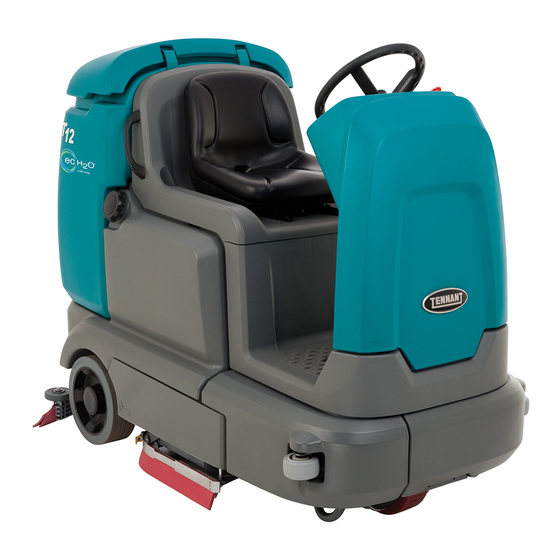

This kit contains the parts needed to replace the rear squeegee assembly on T12 scrubbers.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 15 - 30 minutes)

PREPARATION:

1. Park the machine on a clean level surface,
turn off the machine, and remove the key.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, and remove key.
IB 9010947 (05- 2013)

PROTECT THE ENVIRONMENT

Please dispose of packaging materials, old machine components,
and hazardous fluids in an environmentally safe manner according
to local waste disposal regulations.
Always remember to recycle.
No. 9010947
Machine: T12
Published: 05- 2013
Rev. 00
1
