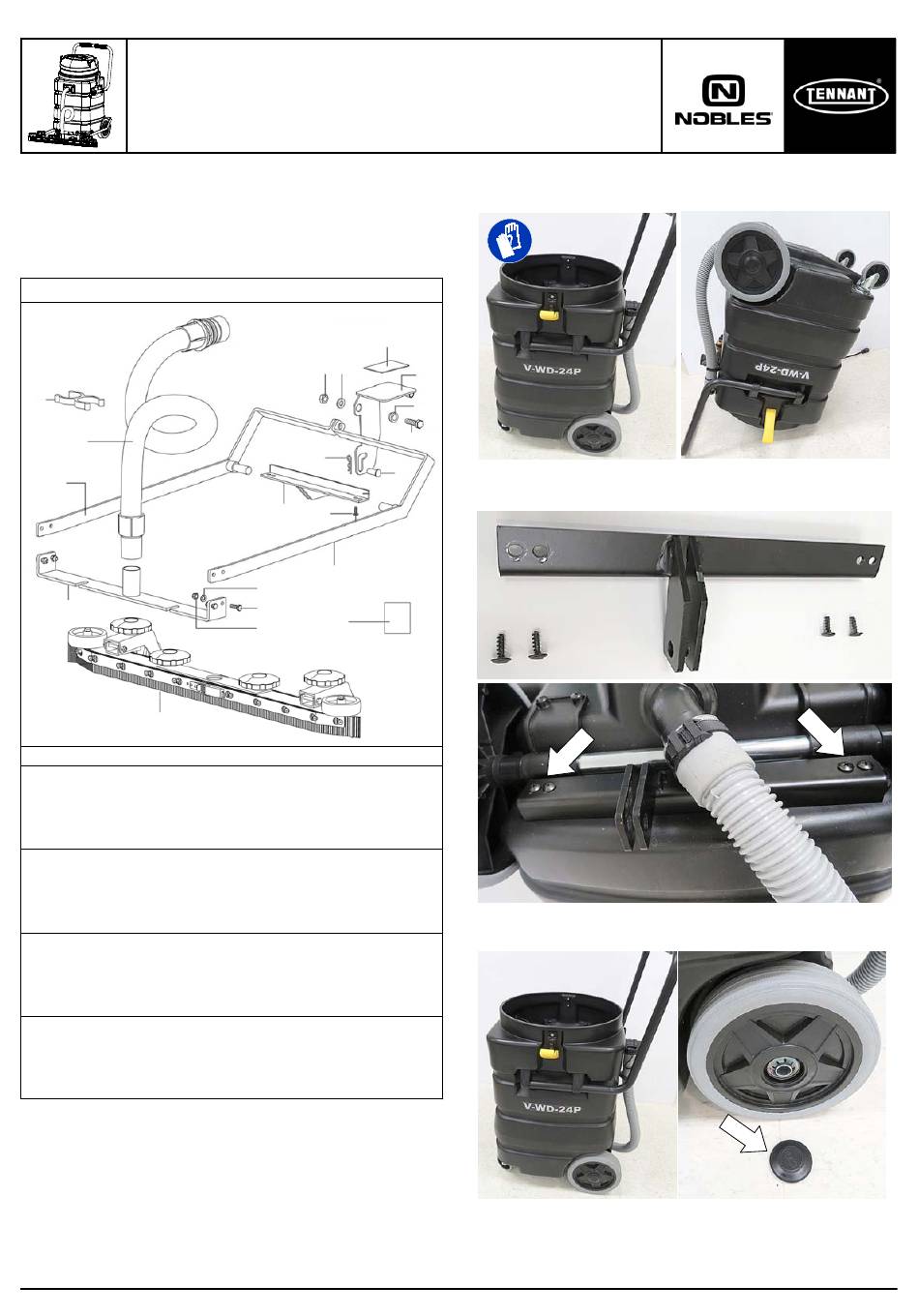

Tennant V-WD-24 Installation Instructions

KIT NO. KTRI06192
INSTALLATION INSTRUCTIONS:
Installation Time: 30 minutes
Tools Required: Phillips screwdriver, small flat head
screwdriver and 10mm & 17mm wrenches

Kit Contents

19
18
6
2
1
Item Part Description
1 Squeegee Assembly *
2 Front Squeegee Mount Plate
3 Screw, 6x20
4 Washer, M5, Steel
5 Nut, M5, Nylock
6 Lift Arm Bracket, Right
7 Lift Arm Bracket, Left
8 Pedal Support Bracket
9 Screw, 5x14 Black
10 Squeegee Pedal
11 Pad, Adhesive
12 Clevis Pin, 10x30
13 Cotter Pin
14 Screw, 10x30
15 Spacer Bushing
16 Washer, M10
17 Nut, M10, Nylock
18 Vacuum Hose
19 Hose Clip
20 Label, Squeegee Lift Instructions
*Replacement squeegee blades: p/n KTRI05783 (qty 2)
To order replacement parts, visit:
www.tennantco.com/manuals
PLDC04130 Rev. 02 (10-2020)
V-WD-24 / V-WD-24P
Squeegee Kit
11
17 16
13
9
8
7
4
3
20
5
Tennant Company
1. Remove the motor head and carefully turn the machine
upside down.
10
15
14
12
2. Attach the pedal support bracket to the bottom of the
machine using the four black screws as shown.
4 black
screws
Qty
1
1
4
4
4
1
1
1
4
3. Turn the machine upright and remove the wheel caps.
1
Use a small flat head screwdriver to pry off caps.
1
1
1
1
1
1
1
1
1
1
