ASSEMBLY INSTRUCTIONS
3
8
13
11
10
2
6
4
14
14
10
13
11
12
11
12
11
10
11
12
12
12
11
12
11
12
13
10
14
7
14
8
7

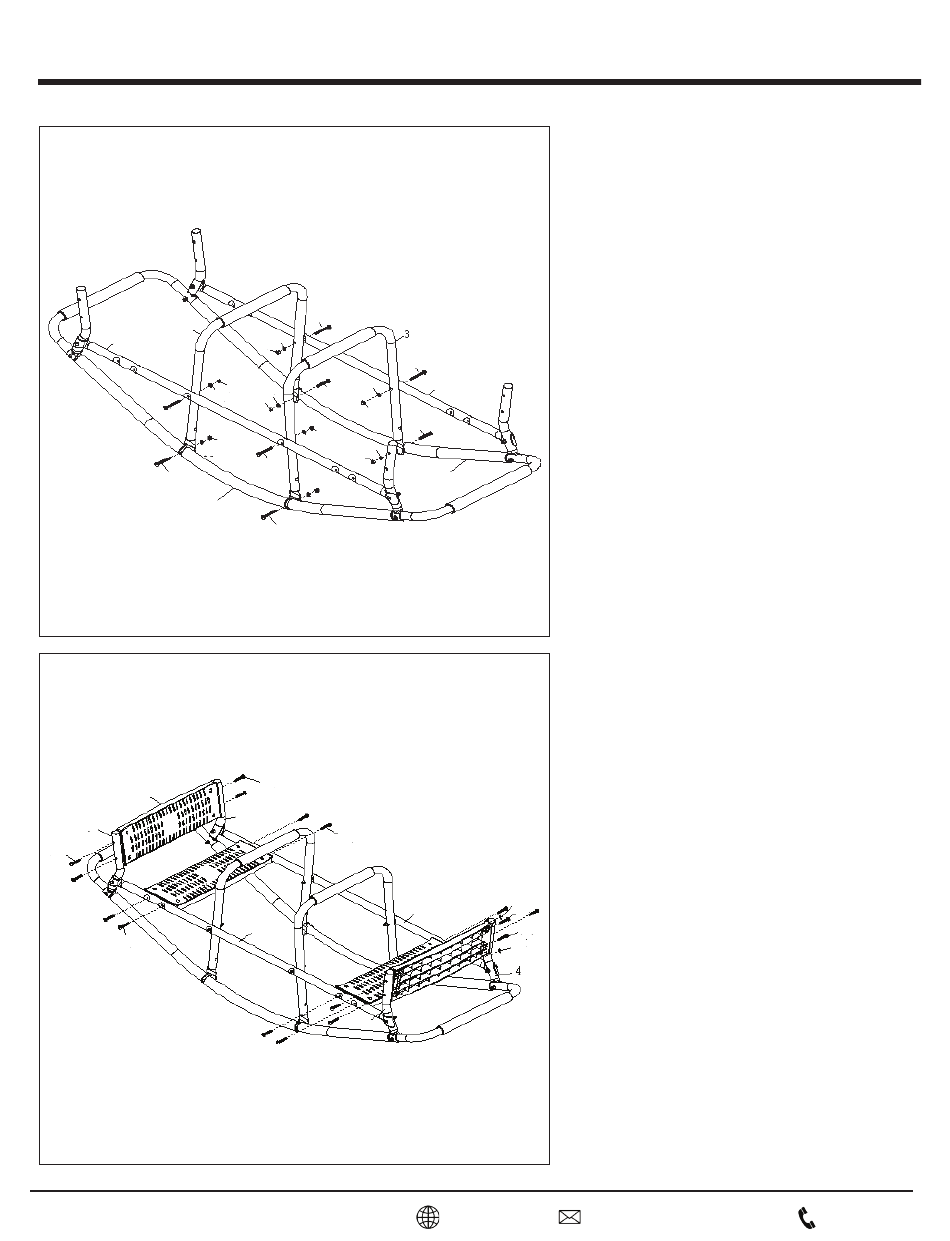

STEP 3
Parts:
Slide the Handle Bars (Part 3) in the middle
of the frame and install using the hardware
provided.
13
Align to the bottom of the frame and the
middle of the side rails until snug.
8
NOTE: Make sure to install the bolts from the
10
outside, with washer and nuts on the inside
of the frame to avoid injury.
2
STEP 4
Parts:
Flip over seesaw to install seats.
Install the seats to the rail of the Seesaw
with the ridges facing away.
Use theM6x35mm (Part 14) Bolts to align to
the openings and secure using the Square
Nuts (Part 15) from the inside of the Seat/
15
14
Back Rests (Part 6)
8
14
15
GQBrands.com
Part 3 (x2) - Handle Bars
Part 10 (x4) - M6x40mm Bolt
Part 11 (x8) - M6 Washer
Part 12 (x8) - M6 Nut
Part 13 (x4) - M6x50mm Bolt
Part 6 (x4) - Seats/ Back Rest
Part 14 (x16) - M6x35mm Bolt
Part 15 (x16) - Square Nuts
CustomerService@GQBrands.com 1-866-498-5269
