Assembly — Hanging the Fan (continued)
3

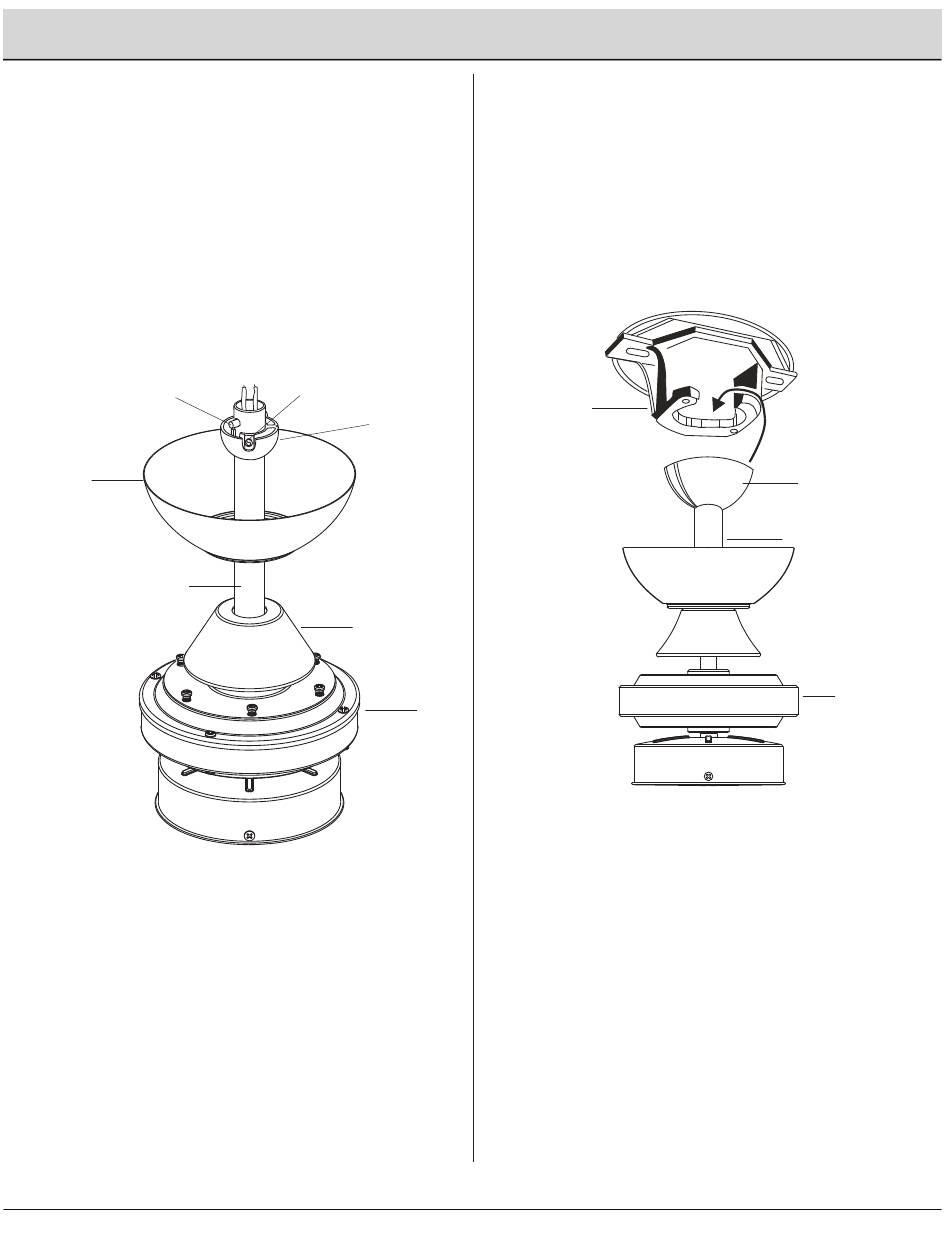

Attaching the coupling cover and
canopy to the downrod
□ Slip the coupling cover (F) and canopy (C) onto the
downrod (E). Carefully reinstall the hanger ball (D) onto
the downrod (E), and ensure that the cross pin (FF) is in
the correct position, the
tight, and the wires are not twisted.
FF
C
E
hanger ball set screws (II) are
II
D
F
4
Hanging the fan motor assembly
from the mounting bracket
□
Lift the fan motor assembly (G) into position, and place
the hanger ball (D) into the mounting bracket (B). Rotate
the fan motor assembly (G) until the check groove drops
into the registration slot and seats firmly. The downrod (E)
should not rotate if this is done correctly.
B
G
8
D
E
G
