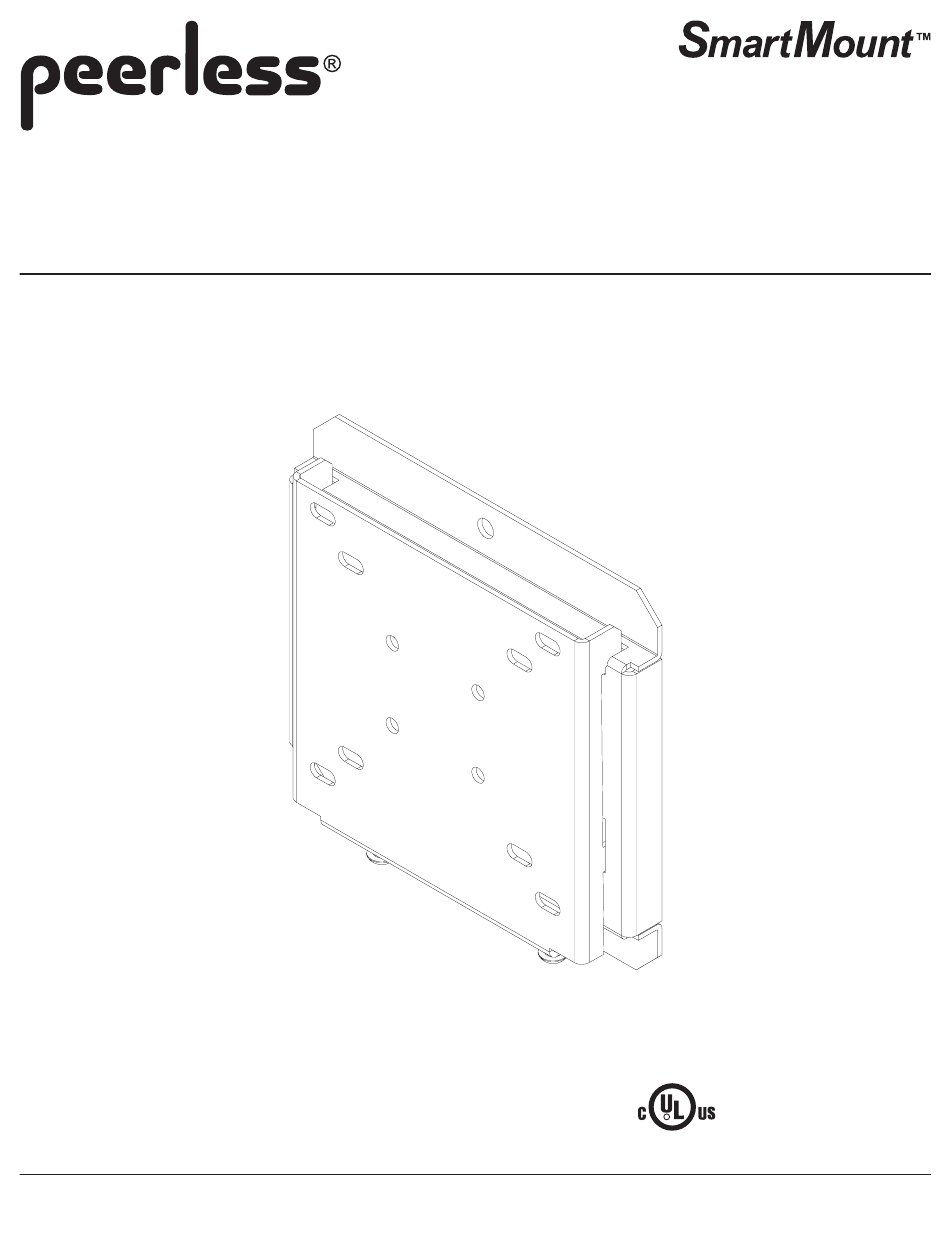

Installation and Assembly:
SmartMount™ Universal Flat Wall Mount
for 10" - 24" LCD Flat Panel Screens
Models: SF 630P, SF 630P-S, SF 630, SF 630-S
Features:
• For 10" to 24" LCD flat panel screens
• Ultra-slim design holds the screen flat against the wall
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
This product is UL Listed. It must be
installed by a qualified professional
R
installer.
Max UL Load Capacity: 80 lb (36.3 kg)
ISSUED: 04-18-05 SHEET #: 201-9427-6 02-06-07
Advertisement
Related Manuals for PEERLESS SmartMount SF 630P-S
Summary of Contents for PEERLESS SmartMount SF 630P-S
- Page 1 Installation and Assembly: SmartMount™ Universal Flat Wall Mount for 10" - 24" LCD Flat Panel Screens Models: SF 630P, SF 630P-S, SF 630, SF 630-S This product is UL Listed. It must be Features: installed by a qualified professional installer. •...
-
Page 2: Table Of Contents
Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-865-2112. -
Page 3: Parts List
Parts List SF 630P SF 630P-S SF 630 SF 630-S Description Qty Part # Part # Part # Part # A wall plate 095-1320 095-4320 095-1320 095-4320 B hook bracket 095-1321 095-4321 095-1321 095-4321 C M5 x 12 mm screw 520-1027 520-1027 520-1064... -
Page 4: Installation To Single Wood Stud Wall
Installation to Single Wood Stud Wall WARNING • Make sure that the wall will safely support the combined load of the equipment and all attached hardware and components. Use a stud finder to locate the edges of the stud. Use of an edge-to-edge stud finder is highly recommended. Based on its edges, draw a vertical line down the stud’s center. -
Page 5: Installation To Solid Concrete Or Cinder Block
WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"... -
Page 6: Attaching Hook Bracket To Flat Panel Screen
Attaching Hook Bracket to Flat Panel Screen Thread M5 phillips screws (C) to hook bracket (B) making the screws flush with bracket as shown in figures 2.1 and 2.2. fig. 2.1 fig. 2.2 WARNING • If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly secured, damage may occur to screen or product may fail. -
Page 7: Installing And Removing Flat Panel Screen
20 in. • lb (2.26 N.M.) maximum torque. fig. 4.2 DETAIL 1 7 of 7 ISSUED: 04-18-05 SHEET #: 201-9427-6 02-06-07 © 2007, Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners.
