We thank you for choosing an Australian Made Shed. For further assistance please
visit our detailed instructional video library at
At ABSCO Industries we are always looking to be number ONE, so please let us
know what you think of our instructions. Feedback makes us better.
feedback@absco.com.au
ABSCO INDUSTRIES
ABSCO INDUSTRIES

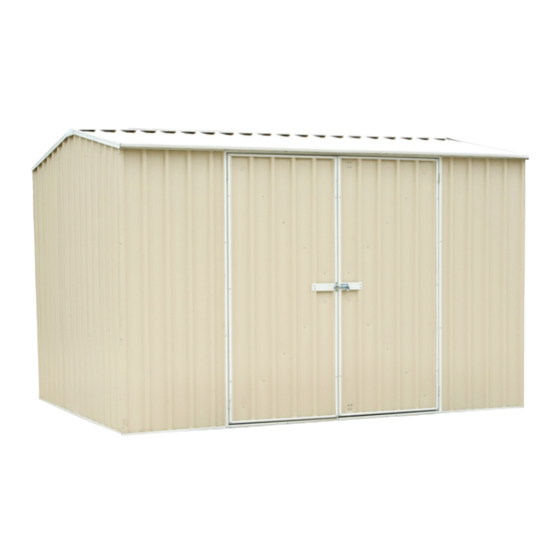

Premier Garden Shed
ABSCO PREMIER SHED
Assembly Instructions
MODEL: 30232GK-PTX
Model: J30232G
10' W x 7.5' D x 7' H
admin@absco.com.au
www.abscosheds.com.au
www.abscosheds.com.au/USA
ASSEMBLY INSTRUCTION - MODEL: 30232GK-PTX
ASSEMBLY INSTRUCTION - MODEL: J30232G 26/02/14
FRONT: 9' 10 7⁄64"
SIDE:
HEIGHT: 6' 10 43⁄64"
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A REBATED
EDGE 1" DEEP AROUND THE PERIMETER
CHANNEL
THIS WILL HELP
WATER EGRESS FROM
REBATED EDGE
THE BASE OF THE SHED
CONCRETE SLAB
Australian Made
7' 4 31⁄32"
3" WIDE
REBATE
23/09/19
PAGE
1
PAGE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Premier 30232GK-PTX and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS Premier 30232GK-PTX

Summary of Contents for ABSCO SHEDS Premier 30232GK-PTX

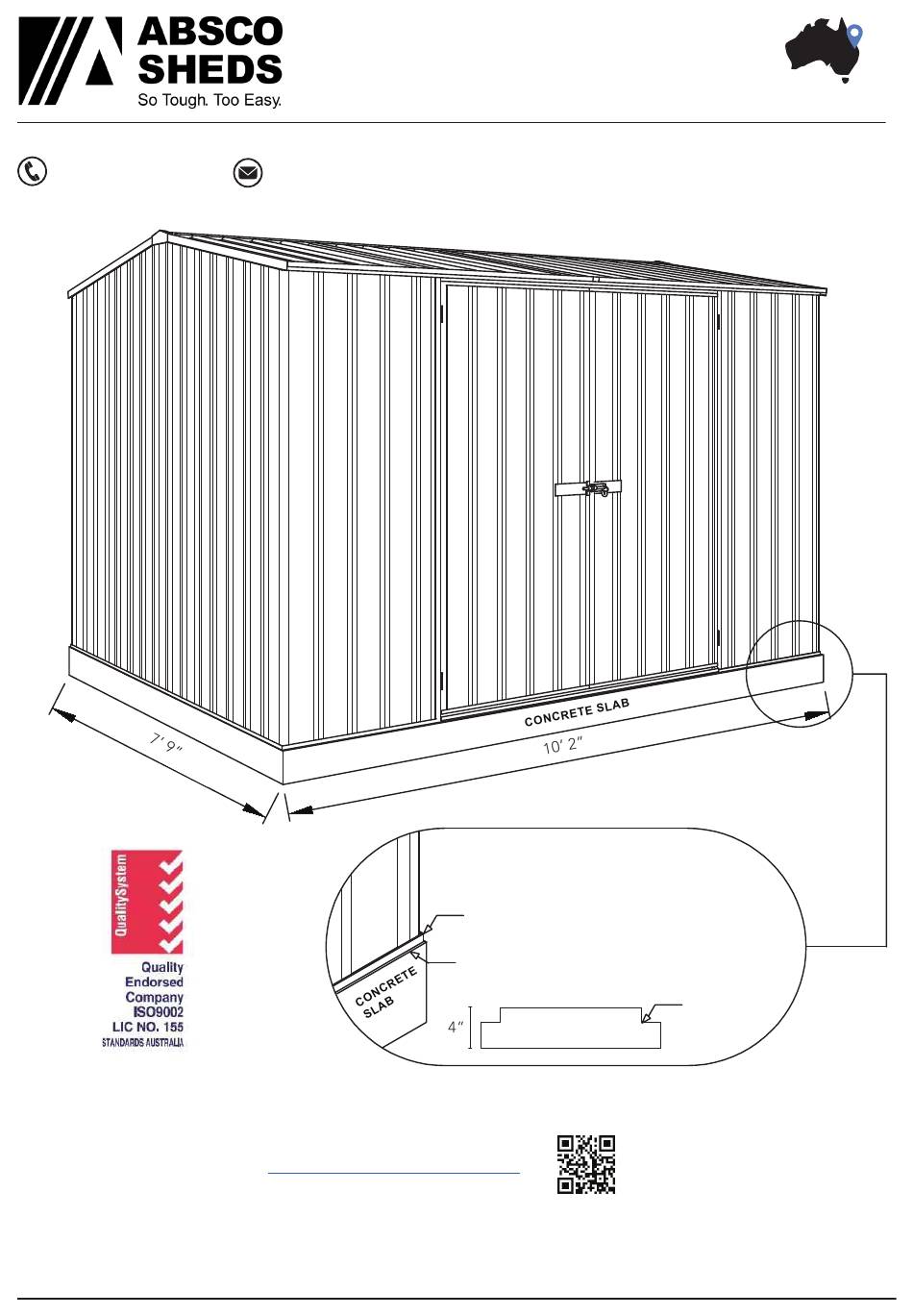

  • Page 1 Premier Garden Shed ABSCO PREMIER SHED Assembly Instructions MODEL: 30232GK-PTX Model: J30232G 10’ W x 7.5’ D x 7’ H Australian Made FRONT: 9' 10 7⁄64" AU: 1800 029 701 admin@absco.com.au +1 (866) 788 3046 N Z: 0800 466 444 www.abscosheds.com.au SIDE: 7' 4 31⁄32"...

  • Page 2: General Instructions

    ABSCO PREMIER SHED MODEL: 30232GK-PTX Premier Garden Shed - Model: J30232G 10’ W x 7.5’ D x 7’ H Australian Made GENERAL INSTRUCTIONS Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details.
  • Page 3 ABSCO PREMIER SHED MODEL: 30232GK-PTX Premier Garden Shed - Model: J30232G 10’ W x 7.5’ D x 7’ H Australian Made COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION STEEL SHEET STEEL SHEET 5' 10 9⁄32"...
  • Page 4 ABSCO PREMIER SHED MODEL: 30232GK-PTX Premier Garden Shed - Model: J30232G 10’ W x 7.5’ D x 7’ H Australian Made Premier Garden Shed - Model: J30232G COMPONENTS - SPLICED CHANNEL & RIDGE BEAM COMPONENTS - SPLICED CHANNEL & RIDGE BEAM COMPONENT PART CHECK...
  • Page 5 ABSCO PREMIER SHED Premier Garden Shed - Model: J30232G MODEL: 30232GK-PTX 10’ W x 7.5’ D x 7’ H Australian Made FULL LENGTH CHANNELS & ACCESSORIES COMPONENT PART PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION CHANNEL CHANNEL L = 5' 1 47⁄64" L = 3' 9"...
  • Page 6 ABSCO PREMIER SHED MODEL: 30232GK-PTX Premier Garden Shed - Model: J30232G 10’ W x 7.5’ D x 7’ H Australian Made INSTRUCTIONS FOR JOINING SPLICED CHANNELS NOTE: THE TEXT MARKED ON ALL PARTS MUST BE SHOWN ON THE SAME SIDE AS EACH OTHER. JOIN>>...
  • Page 7 ABSCO PREMIER SHED Premier Garden Shed - Model: J30232G MODEL: 30232GK-PTX 10’ W x 7.5’ D x 7’ H Australian Made STEP 1. PRE-ASSEMBLY OF SPLICED CHANNELS NOTE: JOIN TOGETHER 20 X CHANNEL SECTIONS USING 10 X CHANNEL JOINERS (PART CSJ) IMPORTANT: NOTE: SOME CHANNELS HAVE SOME CHANNELS HAVE...
  • Page 8 ABSCO PREMIER SHED Premier Garden Shed - Model: J30232G MODEL: 30232GK-PTX 10’ W x 7.5’ D x 7’ H Australian Made STEP 2. PRE-ASSEMBLY OF SPLICED RIDGE BEAM QTY. = 1 TEK SCREW DRIVER BIT QTY. = 8 SELF DRILLING TEK SCREW RIDGE BEAM 4' 11 7⁄8"...
  • Page 9 ABSCO PREMIER SHED Premier Garden Shed - Model: J30232G MODEL: 30232GK-PTX 10’ W x 7.5’ D x 7’ H Australian Made INSTRUCTIONS FOR JOINING SPLICED RIDGE BEAM STAGE 1: PUSH RIDGE BEAMS TOGETHER, MAKE SURE THERE IS A 2" OVERLAP OF THE RIDGE CAP INSTRUCTIONAL VIDEOS...
  • Page 10 ABSCO PREMIER SHED MODEL: 30232GK-PTX 10’ W x 7.5’ D x 7’ H Australian Made ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30232GK-PTX 23/09/19 PAGE...
  • Page 11 ABSCO PREMIER SHED MODEL: 30232GK-PTX 10’ W x 7.5’ D x 7’ H Australian Made ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30232GK-PTX 23/09/19 PAGE...
  • Page 12 ABSCO PREMIER SHED Premier Garden Shed MODEL: 30232GK-PTX INSTRUCTIONS Model: 30152GK AND VIDEOS 10’ W x 7.5’ D x 7’ H Australian Made ABSCO ASSEMBLY INTRODUCTION The snaptite assembly system locks most perimeter channels to all roof and wall sheets without the need for tools and fasteners. To pre-assemble the four wall panels and two roof panels, the perimeter channels are secured to the top and...

  • Page 13: Door Panel Assembly

    ABSCO PREMIER SHED Premier Garden Shed - Model: J30232G MODEL: 30232GK-PTX 10’ W x 7.5’ D x 7’ H Australian Made DOOR PANEL ASSEMBLY ATTACH 58C CHANNELS AS DESCRIBED ON PAGE 12 ATTACH 89C WITH COLORED SIDE FACING OUT. ATTACH 58A AND 58B TO SHEET B SO THAT THE 25/32"...

  • Page 14: Rear Panel Assembly

    Premier Garden Shed - Model: J30232G ABSCO PREMIER SHED MODEL: 30232GK-PTX 10’ W x 7.5’ D x 7’ H Australian Made REAR PANEL ASSEMBLY LAY SHEETS OUT AS SHOWN ATTACH 55B AND 81B CHANNEL WITH NOTCHED END AS SHOWN INSTALL PEAK BRACE WITH OVERHANG FITTING INSIDE SHED SIDE PANEL ASSEMBLY (2 Required) LAY SHEETS OUT AS SHOWN...
  • Page 15 ABSCO PREMIER SHED Premier Garden Shed - Model: J30232G MODEL: 30232GK-PTX 10’ W x 7.5’ D x 7’ H Australian Made ROOF PANEL ASSEMBLY (2 Required) 2 x PRE-PUNCHED LAY SHEETS OUT AS SHOWN HOLES TO THIS END OF EACH SHEET WITH PART NO.

  • Page 16: Front Panel Assembly

    ABSCO PREMIER SHED Premier Garden Shed - Model: J30232G MODEL: 30232GK-PTX 10’ W x 7.5’ D x 7’ H Australian Made FRONT PANEL ASSEMBLY LAY SHEETS OUT AS SHOWN NOTCH ON JAMB 90A FITS OVER JAMB 89A AND 89B AND NOTCH ON 89B AND 89A FITS OVER 55A DO NOT INSTALL THIS SCREW (OR THE TOP EQUIVALENT) UNTIL CHANNELS 55A AND 55C...
  • Page 17 ABSCO PREMIER SHED MODEL: 30232GK-PTX Premier Garden Shed INSTRUCTIONS 10’ W x 7.5’ D x 7’ H AND VIDEOS Australian Made Model: 30152GK DOOR PANEL ASSEMBLY NOTE: Nuts and bolts (supplied) may be used instead of pop rivets (supplied) by simply enlarging the hinge hole sets in the jamb using a 5/32"...
  • Page 18 ABSCO PREMIER SHED MODEL: 30232GK-PTX Premier Garden Shed - Model: J30232G 10’ W x 7.5’ D x 7’ H Australian Made NO PADBOLT HASP PANEL CONSTRUCTION REQUIRED AT TOP NOTE: Take care to ensure that both front and rear wall panels are not positioned upside down.
  • Page 19 ABSCO PREMIER SHED Premier Garden Shed - Model: J30232G MODEL: 30232GK-PTX 10’ W x 7.5’ D x 7’ H Australian Made ROOF CONSTRUCTION Secure peak brace Move the other roof panel to ridge beam and into position and secure roof panel with one peak brace to ridge beam Slide the roof panel into position, and secure with one screw at each corner...
  • Page 20 ABSCO PREMIER SHED MODEL: 30232GK-PTX Premier Garden Shed - Model: J30232G 10’ W x 7.5’ D x 7’ H Australian Made FINAL CONSTRUCTION Bend the top and bottom flanges as shown, then hook the bottom flanges under the top channel and screw the top flanges for both as shown gable caps ANCHORING OF SHED...

  • Page 21: Against Defects

    THE CUSTOMER SERVICE MANAGER, ABSCO SHEDS, PO BOX 119 ACACIA RIDGE QLD AUSTRALIA 4110 PHONE: +61 1800 029701 EMAIL: warranty@absco.com.au...
