PEP Modular Computers CP331 Manual page 31

CP331
PanelLink Interface
The pinouts of the PanelLink connector are shown in the following table.
Table 2-3: PanelLink Connector Pinouts (Transmitter Side)
Pin
1 TX1+
2 TX1-
3 SHLD1
4 SHLDC
5 TXC+
6 TXC-
7 GND
8 5Vt
9 N/C
10 N/C
N/C = Non connected.
ID 19947, Rev. 0200

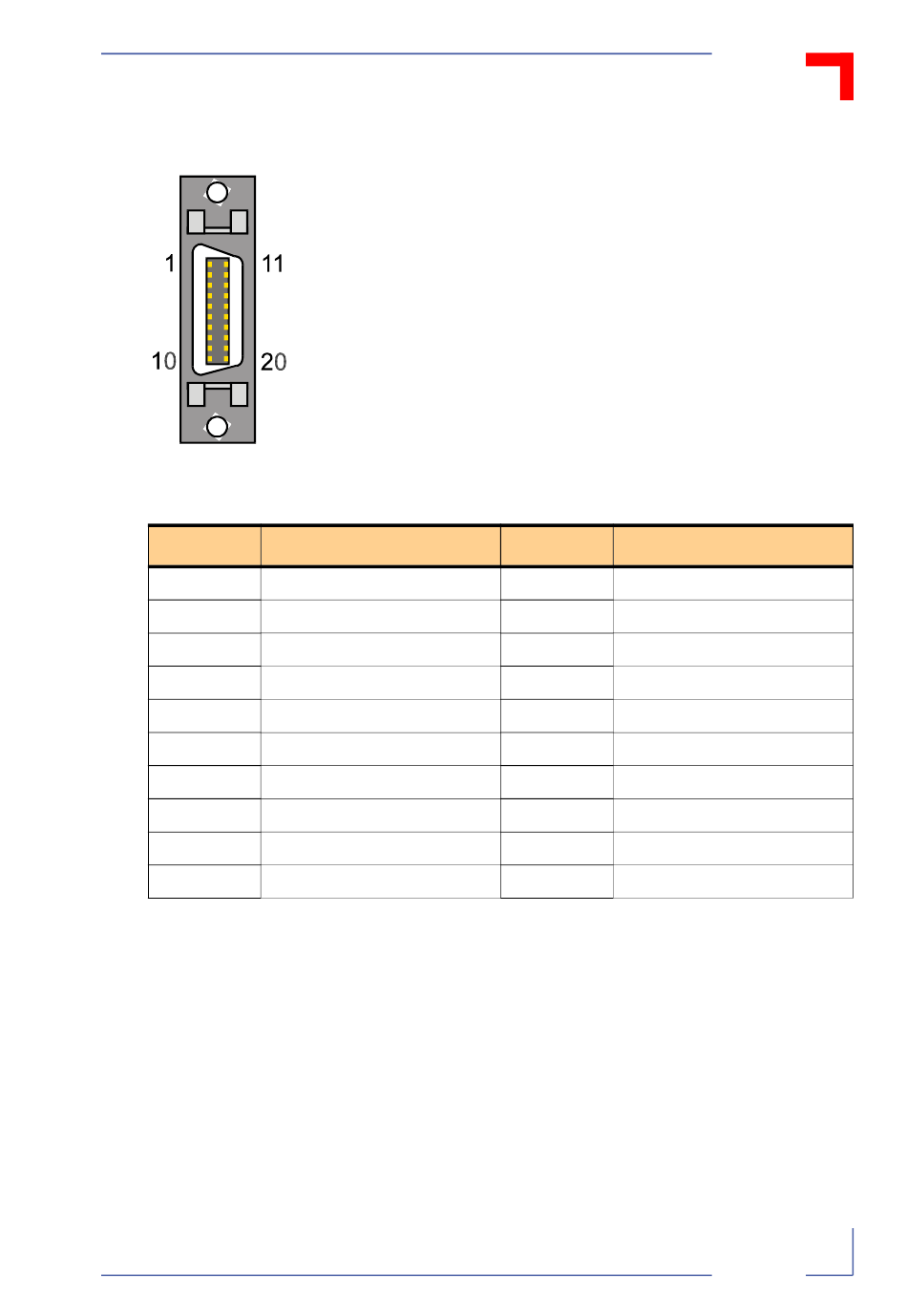

Figure 2-4: Orientation of PanelLink Connector
Another possibility for remote flatpanel connections (up to 5m
distance) is the PanelLink interface of the board variant CP331-
PL. A small transition board, the so-called PanelLink Adapter
Module, is equipped with a PanelLink transmitter to provide this
feature. The transition board is be plugged into the internal TTL
flatpanel connector CON8. Resolutions up to SXGA quality
(1280 x 1024) are possible. The installed PanelLink transmitter
is the Silicon Image SiI150.
The front-end connector is a 20-pin Mini-Delta Ribbon (MDR)
connector which provides all required signals including the 5V
power supply line for flat-panels.
Signal
© 2000 PEP Modular Computers GmbH
Functional Description
Pin
11 TX2+
12 TX2-
13 SHLD2
14 SHLD0
15 TX0+
16 TX0-
17 N/C
18 N/C
19 DDDAT0
20 DDCLK0
Signal
Page 2 - 7
