PEP Modular Computers CP331 Manual

Esrc flat-panel usxga graphic controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

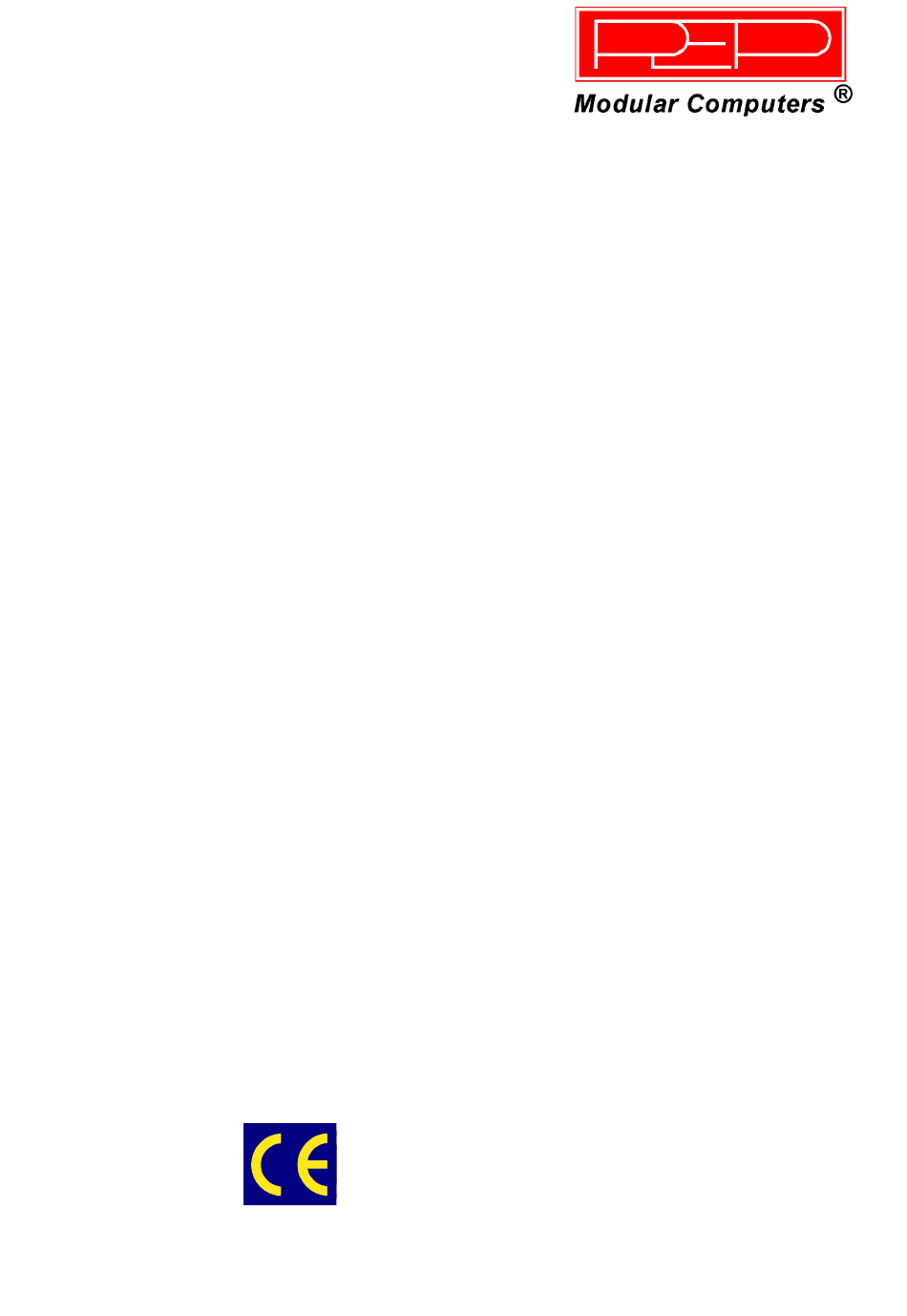

CP331
ESRC Flat-Panel
USXGA Graphic Controller
Manual ID 19947, Rev. Index 0200
Feb 00
The product described in this manual is
in compliance with all applied CE stan-
dards.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP331 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PEP Modular Computers CP331

Summary of Contents for PEP Modular Computers CP331

  • Page 1 CP331 ESRC Flat-Panel USXGA Graphic Controller Manual ID 19947, Rev. Index 0200 Feb 00 The product described in this manual is in compliance with all applied CE stan- dards.

  • Page 2: Preface

    PEP Modular Computers GmbH. Disclaimer: PEP Modular Computers GmbH rejects any liability for the cor- rectnesss and completeness of this manual as well as its suitabil- ity for any particular purpose.

  • Page 3: Table Of Contents

    Functional Block Diagram .............. 1 - 7 1.3.2 Front Panels ................... 1 - 8 1.3.3 Board Layouts ................1 - 8 Technical Specifications ................1 - 11 ID 19947, Rev. 0200 © 2000 PEP Modular Computers GmbH Page 0 - 3...
  • Page 4 Supported Monitors ................. 3 - 3 Software Installation ................... 3 - 4 3.2.1 Driver Installation ................3 - 4 3.2.2 BIOS Configuration ................. 3 - 4 Page 0 - 4 © 2000 PEP Modular Computers GmbH ID 19947, Rev. 0200...
  • Page 5 Preface Chapter Configuration ....................4 - 3 LVDS Supply Voltage ................4 - 3 BIOS Configuration ..................4 - 3 Panel Selection ..................4 - 4 ID 19947, Rev. 0200 © 2000 PEP Modular Computers GmbH Page 0 - 5...
  • Page 6 This page was intentionally left blank. ID 19947, Rev. 0200 © 2000 PEP Modular Computers GmbH Page 0 - 6...

  • Page 7: Proprietary Note

    This document contains information proprietary to PEP Modular Computers . It may not be copied or transmitted by any means, disclosed to others or stored in any retrieval system or media, without the prior written consent of PEP Modular Computers GmbH or one of its autho- rized agents.

  • Page 8: Explanation Of Symbols

    This symbol and title emphasize aspects the reader should read through carefully for his or her own advantage. PEP Advantage This symbol and title emphasize advantages or positive aspects of a product and/or procedure. Page 0 - 8 © 2000 PEP Modular Computers GmbH ID 19947, Rev. 0200...

  • Page 9: For Your Safety

    They can cause short circuits and damage the batteries or tracks on the board. ID 19947, Rev. 0200 © 2000 PEP Modular Computers GmbH Page 0 - 9...

  • Page 10: General Instructions On Usage

    • Special care is necessary when handling or unpacking the product. Please, consult the special handling and unpacking instruction on the following page of this manual. Page 0 - 10 © 2000 PEP Modular Computers GmbH ID 19947, Rev. 0200...

  • Page 11: Two Years Warranty

    PEP Modular Computers , and the remaining part of the original guarantee, or any new guarantee to cover the repaired or replaced items, will be transferred to cover the new or repaired items.
  • Page 12 This page was intentionally left blank. ID 19947, Rev. 0200 © 2000 PEP Modular Computers GmbH Page 0 - 12...

  • Page 13: Introduction

    CP331 Introduction Chapter Introduction ID 19947, Rev. 0200 © 2000 PEP Modular Computers GmbH Page 1 - 1...
  • Page 14 This page was intentionally left blank. Page 1 - 2 © 2000 PEP Modular Computers GmbH ID 19947, Rev. 0200...

  • Page 15: System Overview

    • Information on the distinctive features of PEP Modular Computers CompactPCI boards, such as functionality, hot-swap capability. In addition, an overview is given for all existing PEP Modular Computers CompactPCI boards with links to the relat- ing datasheets. • Generic information on the PEP Modular Computers CompactPCI backplanes,...

  • Page 16: Board Overview

    USXGA graphics board built for use with all industrial standard displays. All variants of the CP331 are equipped with a CRT standard VGA interface. As an option, either an additional standard integrated LVDS interface or an additional PanelLink inter- face can be provided.

  • Page 17: Panellink Adapter Module

    However, with the CP331 stan- dard version no throughput of the signals to a frontpanel connecter is foreseen. The board variant CP331-PL instead is provided with a plug-on module acting as an adapter between the 64-pin on-board connector CON8 and the 20-pin PanelLink con- nector on the frontpanel.
  • Page 18 C&T 69000 or C&T 69030 graphic controller chips or consult PEP Modular Computers . However, a specific BIOS for almost any panel on the market can be created. The con- figuration can be carried out also by PEP Modular Computers GmbH or by one of their authorized partners at relatively short notice.

  • Page 19: Board Diagrams

    CP331 Introduction 1.3 Board Diagrams 1.3.1 Functional Block Diagram Figure 1-1: CP331 Functional Block Diagram Host PCI Bus Connector CP331 LVDS Cable LVDS: CP331-LVDS only PanelLink: CP331-PL only ID 19947, Rev. 0200 © 2000 PEP Modular Computers GmbH Page 1 - 7...

  • Page 20: Front Panels

    Front Panels Figure 1-2: CP331 Front Panels Board Variants: 1. CP331 2. CP331-LVDS 3. CP331-PL 1.3.3 Board Layouts Figure 1-3: CP331 Board Layout (Front) CON9 BIOS GRAPHIC ST1* CONTROLLER * Only pins 7..14 are customer-relevant. Page 1 - 8 © 2000 PEP Modular Computers GmbH...
  • Page 21 CP331 Introduction Figure 1-4: CP331-LVDS Board Layout (Front) CON10 BIOS GRAPHIC ST1* CONTROLLER * Only pins 7..14 are customer-relevant. Figure 1-5: CP331-PL Board Layout (Front) PANELLINK ADAPTER MODULE CON9 BIOS GRAPHIC CONTROLLER ST1* * Only pins 7..14 are customer-relevant. ID 19947, Rev. 0200 ©...
  • Page 22 CP331 Introduction Figure 1-6: CP331 Board Layout (Reverse, all variants) Page 1 - 10 © 2000 PEP Modular Computers GmbH ID 19947, Rev. 0200...

  • Page 23: Technical Specifications

    • C&T 69000: Video Memory • C&T 69030: BIOS Memory 64kB for Video BIOS Driver Support Windows NT 4.0, Windows 2000 Mechanical Compliance IEEE 1101.10 ID 19947, Rev. 0200 © 2000 PEP Modular Computers GmbH Page 1 - 11...

  • Page 24: Applied Standards

    0 ... 95% non condensing Dimensions 160 mm x 100 mm single height Eurocard Weight 110g 1.5 Applied Standards 1.5.1 CE Compliance The PEP Modular Computers’ CompactPCI systems comply with the requirements of the following CE-relevant standards: • Emission EN50081-1 • Immission EN50082-2 •...

  • Page 25: Functional Description

    CP331 Functional Description Chapter Functional Description ID 19947, Rev. 0200 © 2000 PEP Modular Computers GmbH Page 2 - 1...
  • Page 26 This page was intentionally left blank. Page 2 - 2 © 2000 PEP Modular Computers GmbH ID 19947, Rev. 0200...

  • Page 27: General Information

    Module. 2.2 Specifics The CP331 is delivered with either a C&T 69000 or a C&T 69030 graphic controller. The C&T 69000 controller chip is provided with 2MB of internal memory. It supports resolu- tions of up to 1280 x 1024 x 16 at frequencies of 60, 75 or 85 Hz. The C&T 69030...

  • Page 28: Functional Block Diagram

    Connector Graphics Controller LVDS Cable Transmitter VGA BIOS LVDS: CP331-LVDS only LVDS Cable: CP331-LVDS only (via general-purpose connector CON10) PanelLink: CP331-PL only (on PanelLink Adapter Module) Page 2 - 4 © 2000 PEP Modular Computers GmbH ID 19947, Rev. 0200...

  • Page 29: Board Interfaces

    The memory interface can be devided into two parts, the video memory interface and the VGA BIOS interface. The CP331 is provided with up to 4MB of embedded video memory with the C&T 69030 graphic controller chip or, respectively, 2MB with the C&T 69000 controller chip.

  • Page 30: Front-End Ttl Interfaces

    Front-End TTL Interfaces LVDS Interface The LVDS interface of the board variant CP331-LVDS is the standard interface for remote digital flatpanel connections (up to 10m distance), with resolutions up to USXGA quality (1280 x 1024). Due to its universal use, it is routed directly on-board. The installed transmitter chips are the National Semiconductor DS90C5(3)83 or Texas Instruments SN75LVDS83.
  • Page 31 Figure 2-4: Orientation of PanelLink Connector Another possibility for remote flatpanel connections (up to 5m distance) is the PanelLink interface of the board variant CP331- PL. A small transition board, the so-called PanelLink Adapter Module, is equipped with a PanelLink transmitter to provide this feature.

  • Page 32: Internal Flatpanel Interfaces

    Internal Flatpanel Interfaces Flatpanel Adapter Interface The on-board 64-pin row flatpanel adapter connector CON8 is placed on the standard version of the CP331 and on the board variant CP331-PL to provide connectivity for any type of flatpanel via a suitable adapter. Note...
  • Page 33 The on-board 40-pin row internal TTL flatpanel connector CON9 is placed on the stan- dard version of the CP331 and on the board variant CP331-PL to provide the possibility of a direct on-board connection of one of the following flatpanel types: •...

  • Page 34: Pci Interface

    LVDS Signal 2.4.5 PCI Interface All variants of the CP331 are equipped with the standard PCI interface J1. For its pinouts please refer to the PEP Modular Computers CompactPCI System Manual or to the CompactPCI Specification. 2.4.6 Rear-I/O TTL Interface All signals from the TTL flatpanel interface are routed to the rear-I/O connector J2.

  • Page 35: Video Resolutions

    CP331 Functional Description 2.5 Video Resolutions The CP331 supports different video resolutions to produce different display parameters. A complete list of possible video resolutions and the relating display parameters is shown in the following table. Table 2-7: Video Resolutions and Display Parameters...
  • Page 36 This page was intentionally left blank. Page 2 - 12 © 2000 PEP Modular Computers GmbH ID 19947, Rev. 0200...

  • Page 37: Installation

    CP331 Installation Chapter Installation ID 19947, Rev. 0200 © 2000 PEP Modular Computers GmbH Page 3 - 1...
  • Page 38 This page was intentionally left blank. Page 3 - 2 © 2000 PEP Modular Computers GmbH ID 19947, Rev. 0200...

  • Page 39: Hardware Installation

    3. Installation 3.1 Hardware Installation The CP331 board can be installed in any CompactPCI compatible computer with a free slot (bus master or non bus master). The frontpanel of the board should be safely secured by screws to the chassis to avoid lossening of the board through vibration and to ensure correct earth connection.

  • Page 40: Software Installation

    Drivers for Windows NT and other supported operating systems are provided with the CP331 driver kit. Exact guidelines can be found in the readme file which should be fol- lowed before starting the installation procedure. Please follow also the interactive instructions of the installation program and enter specific data when prompted.

  • Page 41: Configuration

    CP331 Configuration Chapter Configuration ID 19947, Rev. 0200 © 2000 PEP Modular Computers GmbH Page 4 - 1...
  • Page 42 This page was intentionally left blank. Page 4 - 2 © 2000 PEP Modular Computers GmbH ID 19947, Rev. 0200...

  • Page 43: Lvds Supply Voltage

    A specific BIOS for almost any panel on the market can be created. The configuration can be carried out by PEP Modular Computers or by one of their authorized partners at relatively short notice. A general listing of customer-relevant jumper settings for panel selection are described in the following table: Note...

  • Page 44: Panel Selection

    Note: The logical panel code values are inverted, i.e. “closed” is equal to 0, “open” to 1. Panel numbers refer to BIOS panel numbering. Panel numbers 7 and 8 correspond to preset panel types. Default settings are in italics. Page 4 - 4 © 2000 PEP Modular Computers GmbH ID 19947, Rev. 0200...
