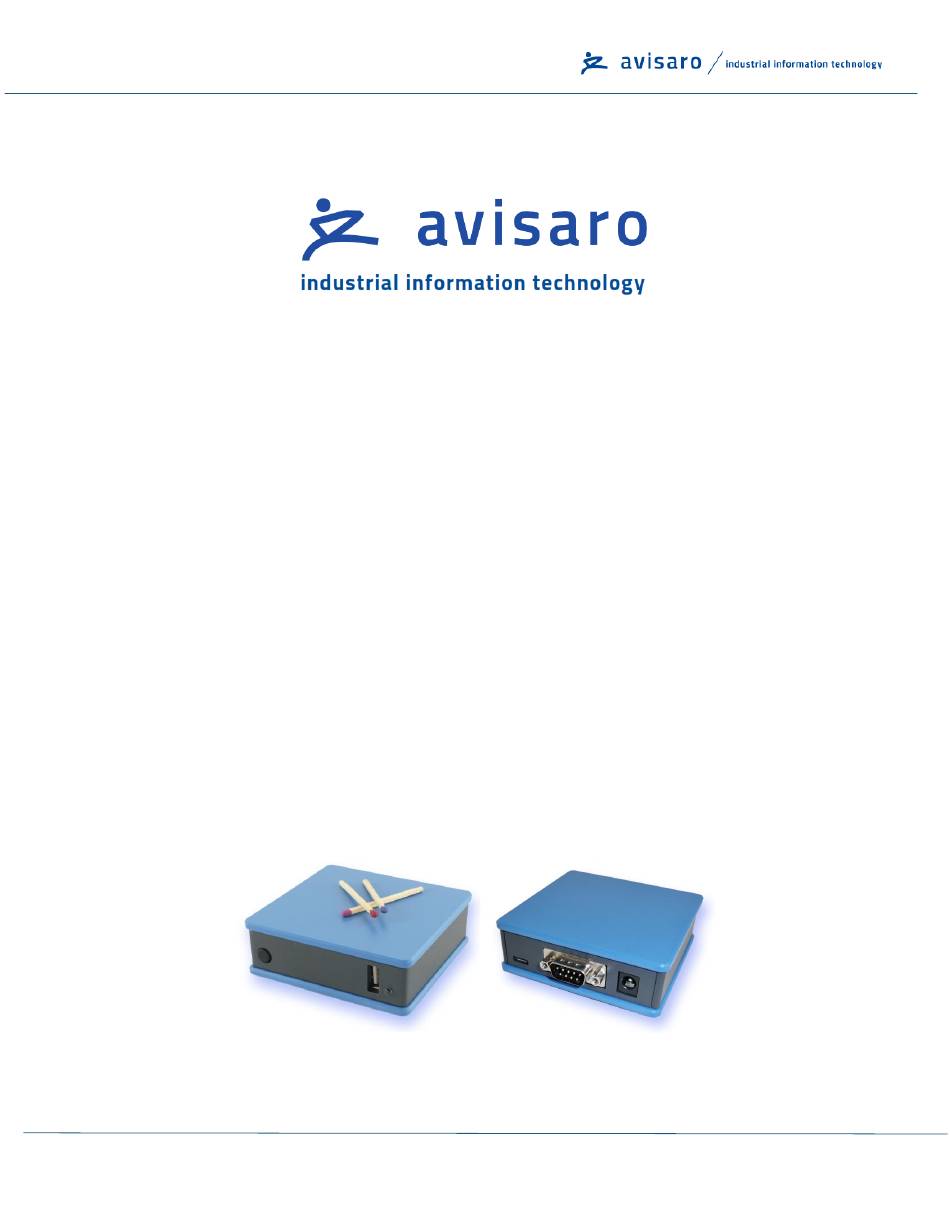

- Page 1 Jump to: Table of Content Avisaro 4.0 Product Series Quick Guide RS232 Data Logger ‘4.0 Sky’ ( “M41014” / “C41014” ) RS232 Data Logger Version / Date: 2021/06/16 Page: 1 2021/06/16...
-
Page 2: Table Of Contents
Signal levels ........................... 8 5.2.3 D-Sub Connector ........................8 Configuration: ‘PC Companion Software’ ................... 10 How to configure Avisaro “Series 4.0” products ................ 10 Concept of operation ........................10 Detailed documentation ......................10 “PC Companion Software” Installation ..................11 Driver installation ........................11 Initial Set-Up .......................... - Page 3 Jump to: Table of Content Page: 3 2021/06/16...
-
Page 4: This Document
Jump to: Table of Content HIS DOCUMENT 2.1 L OCATION Check for the latest document version the following link: German site: https://www.avisaro.de/de/40-Datenlogger-Sky-1xRS232-DSUB.html English site: https://www.avisaro.com/en/40-Data-Logger-Sky-1xRS232-DSub.html 2.2 O THER DOCUMENTS “Technical User Manual 4.0” contains all of this and more information. -
Page 5: Enclosure And User Controls
NCLOSURE AND ONTROLS 3.1 S TART AND STOP OPERATION The Avisaro 4.0 starts with operation right after power on if an USB stick is inserted. Also, after re- inserting a USB stick, the operation starts automatically. 3.2 LED B LINK ODES There is one multicolor LED to signal states of the Avisaro device. -
Page 6: Enclosure "4.0 Sky With D-Sub Connector
Jump to: Table of Content 3.4 E “4.0 S ” NCLOSURE WITH UB CONNECTOR Front with slot for USB stick. Matches are shown Reverse side shows D-Sub connector for data and just for size reference: barrel connector for power. The micro USB port is for configuration only: Optional, a DIN rail fitting is available: Page : 6... -
Page 7: Usb Storage Stick
There are no speed requirements. Memory sticks that are advertised as particularly fast offer no (!) advantage in the Avisaro data logger. Typically these optimizations are designed for cameras etc.. Memory sizes from 4 to 256 GByte are supported. As file system FAT or FAT32 (preferred) is used. NTSF or others are not supported. -
Page 8: Interface Description And Pin Layout
LIENT The Micro-USB client interface is used for configuration only. Most Avisaro devices are powered through the Mico-USB client port, however only for configuration. A stable regular operation is not guaranteed. Use the regular power supply for normal operation. A “Micro USB” cable is used. As those cable are widely available, this cable is not part of scope of delivery to avoid electronic waste. - Page 9 Supply voltage does not carry an output voltage – thus if the device is powered via barrel connector, Pin 9 does not show the input voltage (internal diode). This is for security reason. If needed, Avisaro can modify the device such that this pin can be used to power other devices.
-
Page 10: Configuration: 'Pc Companion Software
6.3 D ETAILED DOCUMENTATION This current document shows only selected parts of the full “Avisaro PC Companion Software” user manual. The motivation is to keep this document as compact as possible. Please find the extensive “Avisaro PC Companion Software” document in the support section of the... -
Page 11: Pc Companion Software" Installation
6.5 D RIVER INSTALLATION If you connect the Avisaro Device to the PC using a Micro USB cable, a virtual COM port driver is installed. If this driver does not install automatically, you can download and install this manually: http://www.avisaro.de/de/40-PC-Treiber.html (German site) http://www.avisaro.com/en/40-ENG-PC-Driver.html... -
Page 12: Initial Set-Up
SING THE OMPANION Click on “Write Config” to transmit changes in the PC tool to the Avisaro device. Click on “Read Config” to display the currently stored values (if you navigate between options, the latest settings are read of course automatically). -
Page 13: Declarations
Jump to: Table of Content ECLARATIONS 7.1 EC/EU D ECLARATION OF ONFORMITY Page: 13 2021/06/16... -
Page 14: Contact And Support
Jump to: Table of Content ONTACT AND UPPORT Please contact Avisaro if there are any questions: Avisaro AG Grosser Kolonnenweg 18 E 30163 Hannover Germany Email: support@avisaro.com End of this documentation Page : 14 2021/06/16...
