Summary of Contents for Avisaro 4.0 Silver

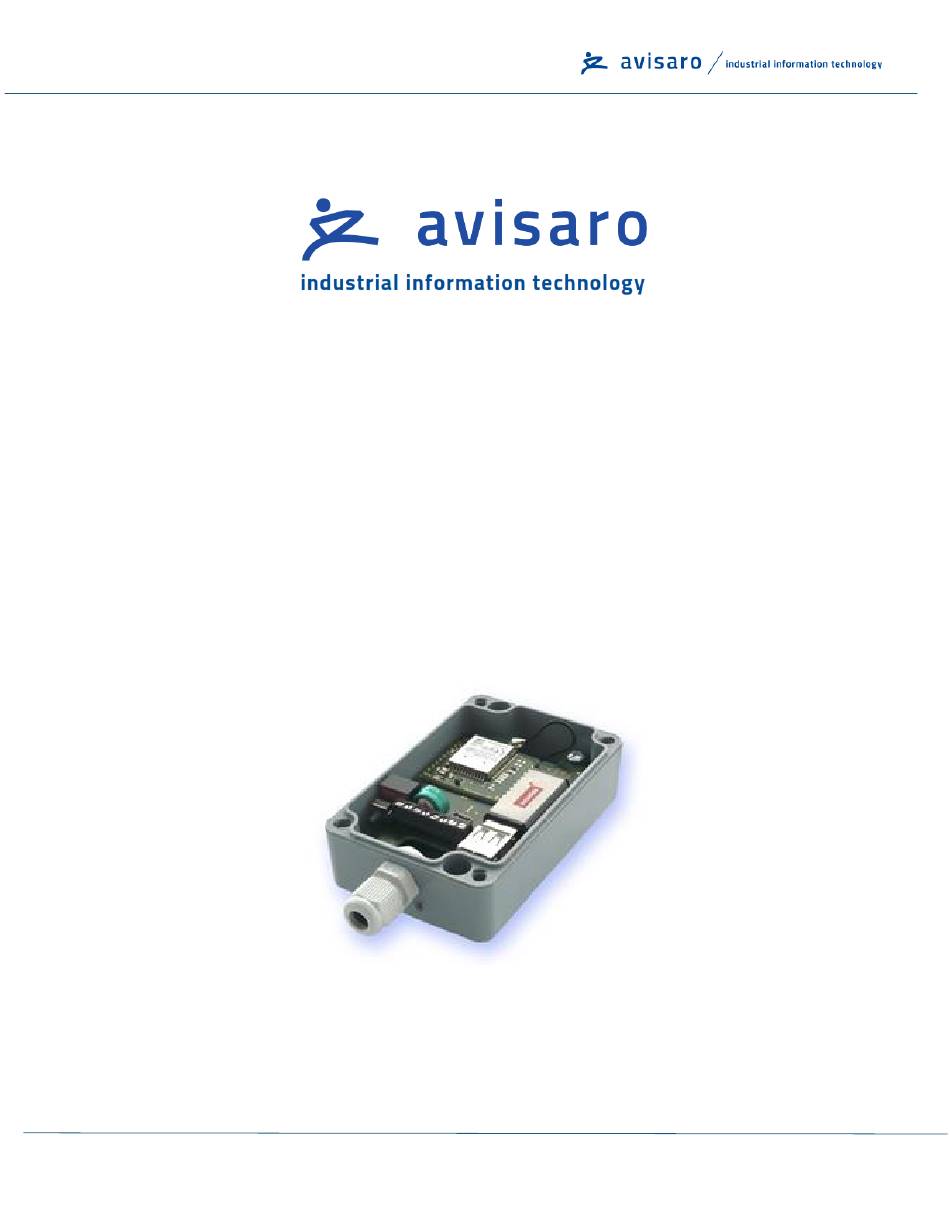

- Page 1 Jump to: Table of Content Avisaro 4.0 Product Series Quick Guide CAN-Bus Data Logger / Gateway ‘4.0 Silver’ ( “M43076” / “C43076” ) Version / Date: 2022/04/11 Page: 1 2022/04/11...
-
Page 2: Table Of Contents
Enclosure and User Controls ......................... 7 Start and stop operation ....................... 7 LED Blink-Codes..........................7 Real-Time Clock ..........................7 Enclosure “4.0 Silver” with screw type connector ................ 8 USB Storage Stick ..........................9 Filesystem and Storage size ......................9 Formatting............................. 9 Choosing the right memory stick .................... - Page 3 Jump to: Table of Content Configuration: ‘PC Companion Software’ ................... 15 How to configure Avisaro “Series 4.0” products ................ 15 Concept of operation ........................15 Detailed documentation ......................15 “PC Companion Software” Installation ..................16 Driver installation ........................16 Initial Set-Up ..........................17 Using the PC Companion Tool .....................
- Page 4 Via USB stick ........................31 7.2.3 Via “PC Companion” Software .................... 31 7.2.4 Via FTP server / internet ..................... 31 Avisaro internal data formats ......................33 CAN – CSV Text format........................ 33 8.1.1 CAN CSV text description ....................33 (TM) CAN Vector format .........................
-
Page 5: This Document
2.7 D OCUMENT CREATION This document was created using the “Avisaro Document Builder”. Single text blocks are merged into targeted documents. Thus, text blocks can be reused in several places, yet no need to update them manually when changes occur. -
Page 6: Imprint And Contact
Advantage is that compact and targeted documents are available. Disadvantage is that in rare occasions, a paragraph might have comments which do not fit to 100% in the place it is used. 2.8 I MPRINT AND CONTACT This document is provided by: Avisaro AG Grosser Kolonnenweg 18 E 30163 Hannover Germany Web: www.avisaro.com Email: info@avisaro.com... -
Page 7: Enclosure And User Controls
NCLOSURE AND ONTROLS 3.1 S TART AND STOP OPERATION The Avisaro 4.0 starts with operation right after power on if an USB stick is inserted. Also, after re- inserting a USB stick, the operation starts automatically. 3.2 LED B LINK ODES There is one multicolor LED to signal states of the Avisaro device. -
Page 8: Enclosure "4.0 Silver" With Screw Type Connector
Jump to: Table of Content 3.4 E “4.0 S ” NCLOSURE ILVER WITH SCREW TYPE CONNECTOR View into the enclosure with the lid unscrewed. Optional, a DIN rail fitting is available: During normal operation, the enclosure is sealed. Page : 8 2022/04/11... -
Page 9: Usb Storage Stick
Companion Software” .. “USB Storage” ether in this document, or in the overall “User Manual Serie 4.0” document. Alternatively, third party tools for Windows can be used to format large USB sticks. Please note: Avisaro can not support those third party tools within our technical support via telephone or email. -
Page 10: Recommended Memory Sticks
Jump to: Table of Content The appropriate memory size also depends on the intended use. Due to the technology, memory sticks with an extremely high capacity are typically less robust than smaller memory sizes. The loggers have a "ring memory" that can be optionally activated. If the memory stick becomes full (approx. less than 100MB free memory) the oldest files are deleted - this is a useful setting for some applications. -
Page 11: Not Recommended
Jump to: Table of Content Innodisk USB Drive 3SE 4-32 GB Industrial SLC Technology 4.4.2 Not recommended Manufacturer Model Picture Capacity Technology Remarks Verbatim Slider 8 GB Consumer Stick failures after Store N Go short period of time Page: 11 2022/04/11... -
Page 12: Interface Description And Pin Layout
Heads-up: There are sometimes Micro USB cable which only do power supply, but not data. Those are used i.e. with mobile phones. If the Avisaro device is powered, but no data connection to the PC – just choose a different USB cable. -
Page 13: Terminating Resistor
Jump to: Table of Content 5.2.4 Terminating resistor Whether or not there is a 120 ohm terminating resistor depends on the product: Product No Name 120 Ohm Termination M43076 / C43076 CAN Silver Can be switched on/off via configuration 5.2.5 1x CAN “SILVER”... -
Page 14: M12 (Male) - 1X Can Interface
Jump to: Table of Content 5.2.6 M12 (male) - 1x CAN Interface Optional, a M12 male connector is available. Standard M12 connector (male) Connector Interface Signal Direction M12, CAN-H 5 pol, male CAN-L do not use Supply Power Supply Power Signal and Power Ground Page : 14 2022/04/11... -
Page 15: Configuration: 'Pc Companion Software
6.3 D ETAILED DOCUMENTATION This current document shows only selected parts of the full “Avisaro PC Companion Software” user manual. The motivation is to keep this document as compact as possible. Please find the extensive “Avisaro PC Companion Software” document in the support section of the... -
Page 16: Pc Companion Software" Installation
6.5 D RIVER INSTALLATION If you connect the Avisaro Device to the PC using a Micro USB cable, a virtual COM port driver is installed. If this driver does not install automatically, you can download and install this manually: http://www.avisaro.de/de/40-PC-Treiber.html (German site) http://www.avisaro.com/en/40-ENG-PC-Driver.html... -
Page 17: Initial Set-Up
SING THE OMPANION Click on “Write Config” to transmit changes in the PC tool to the Avisaro device. Click on “Read Config” to display the currently stored values (if you navigate between options, the latest settings are read of course automatically). -
Page 18: Global Hardware Setup
In most cases, devices are shipped with proper settings on this page. 6.8.1 Global HW settings ⇨ System functions Don’t touch those settings unless advised by technical support team from Avisaro. Global HW settings ⇨ Networking 6.8.2 Activate the network interface which is physically present. -
Page 19: Interfaces
Baudrate Selected the matching baudrate Line Termination The 120 Ohm line termination resistor can be switch on/off with this setting. The feature is available for Avisaro “4.0 Silver” and “4.0 Sky D-Sub” only. Only for 2 CAN interface 6.9.2 Filter... - Page 20 Jump to: Table of Content To define the CAN IDs and the intervals, a configuration file is placed on USB stick. The file names are “can1flt.txt” for CAN 1 and “can2flt.txt” for CAN 2. The content of the file is (example): 218000622, 500 1616, 1000 1626, 1000...
-
Page 21: Data Processing ⇨ Can Data (Generic)
Jump to: Table of Content ⇨ CAN 6.10 D ROCESSING DATA GENERIC … 6.10.1 CAN data (generic) ⇨ Storage Format ⇨ Storage format No data is stored Text (CSV) data CAN data are stored in a text format. See paragraph “CAN Formats”... -
Page 22: 6.10.2 Can Data (Generic) ⇨ Storage Endpoint
Jump to: Table of Content 6.10.2 CAN data (generic) ⇨ Storage endpoint ⇨ Storage format No data are stored Generic file (A) Data are send to file (A). See “Data Endpoints->USB Stick” This is the default setting. Generic file (B) Not supported yet 6.10.3 CAN data (generic) ⇨... -
Page 23: 6.10.4 Can Data (Generic) ⇨ Forward Endpoint
Jump to: Table of Content 6.10.4 CAN data (generic) ⇨ Forward endpoint Description …: ⇨ Storage format This is the default setting. … Page: 23 2022/04/11... -
Page 24: Data Endpoints ⇨ Usb Stick
Jump to: Table of Content ⇨ USB S 6.11 D NDPOINTS TICK The file handling is configured in this section. Depending on the application, choose when and how to create files. 6.11.1 “Create new file” policy Description of “Create new file” policy selection. -
Page 25: Data Endpoints ⇨ Network Endpoint
Jump to: Table of Content at new event (time) at new event (keyword)(PDF) every new start ⇨ N 6.12 D NDPOINTS ETWORK ENDPOINT Data from a digital (RS232, CAN, ..) interface and some of the analog interfaces (0..10V, 4..20mA) can be streamed over the network. Remember to active the “Forward data”... - Page 26 Local port: not used TCP/IP client Data is send and received using the TCP/IP protocol. The Avisaro device is server – thus it is waiting for a client to connect to the Avisaro device. Target IP: ignore, not used Target port: ignore, not used Local port: port data are received (see “WiFi Setting”...
-
Page 27: Data Endpoints ⇨ Cloud Settings
⇨ C 6.13 D NDPOINTS LOUD ETTINGS The Cloud features of the Avisaro devices are best described in separate application specific documents. Thus, here the settings are described briefly without the ‘large picture’ behind it. 6.13.1 Data Endpoints ⇨ Cloud Settings ⇨ Mode Description of “General Settings”:... -
Page 28: 6.13.2 Data Endpoints ⇨ Remote Firmware Update
Jump to: Table of Content • User and Password • Device Name Typically, “Store&Collect” goes along with the “Avisaro Dashboard Software” (see separate documentation) 6.13.2 Data Endpoints ⇨ Remote firmware update Check chapter “Firmware and Configuration Update” later in this document for details. -
Page 29: Firmware And Configuration Update
7.1.1 Introduction The configuration of the Avisaro 4.0 defines how the devices behave. Settings like baudrate, time&date, Internet access parameter, etc. are variable and can be defined by the user. There are two ways to configure the Avisaro 4.0 devices: 1) Connect the device to a PC using a Micro-USB cable. -
Page 30: Firmware Update
There are three ways to update the firmware of the Avisaro 4.0 family: 1. Via USB Stick If the Avisaro 4.0 product has a USB Host port, a new firmware can be uploaded using a USB stick. See details below. -
Page 31: Via Usb Stick
7.2.4 Via FTP server / internet Avisaro Devices can be update remotely. This is a powerful service feature. To enable, navigate to “Data Endpoints”->“CLoud setting” and activate “Remote firmware update”. Please refer to the document “PC Companion” for details, chapter “Data Endpoints-> Cloud Settings”. - Page 32 30 seconds which is sensitive to power failure) Recommendations: • It is highly recommended to create a different user pointing to a different subdirectory for each Avisaro Data logger. This way, a firmware update can be directed to each Page : 32 2022/04/11...
-
Page 33: Avisaro Internal Data Formats
Jump to: Table of Content VISARO INTERNAL DATA FORMATS 8.1 CAN – CSV T EXT FORMAT This is the default format for CAN recording into a file. The format is 8.1.1 CAN CSV text description File name depends on configuration (every day a new file or every hour), i.e. “181102.txt”: Format: Date, Time, Millisecond, CAN Bus Nr., CAN ID, Message length, Data 2018/11/02,15:06:27,480, $C2, 0fffffff, 8, 00, 00, 00, 00, 00, 00, 00, 00 2018/11/02,15:06:28,512, $C2, 0fffffff, 8, 00, 00, 00, 00, 00, 00, 00, 00... -
Page 34: Can - Binary Data Format
Jump to: Table of Content 8466.949000 1 d 8 00 00 00 00 00 00 00 00 8467.133000 1 d 8 00 00 00 00 00 00 00 00 8467.269000 1 d 8 00 00 00 00 00 00 00 00 8467.591000 2 d 8 01 23 45 06 00 00 00 00 8467.710000 2... -
Page 35: Packaging
Jump to: Table of Content 23..16 31..23 7…0 Millisecond time stamp. Value in ms since module power on. 15...8 23..16 31..23 8.3.2 Packaging Multiple CAN frame container could be packed into one UDP or TCP packet. It is ensured that always a complete CAN container is packed. -
Page 36: Declarations
Jump to: Table of Content ECLARATIONS 9.1 EC/EU D ECLARATION OF ONFORMITY Page : 36 2022/04/11... -
Page 37: Contact And Support
Jump to: Table of Content 10 C ONTACT AND UPPORT Please contact Avisaro if there are any questions: Avisaro AG Grosser Kolonnenweg 18 E 30163 Hannover Germany Email: support@avisaro.com End of this documentation Page: 37 2022/04/11...
