Avisaro 4.0 Sky Quick Manual
4..20ma data logger & gateway
Hide thumbs
Also See for 4.0 Sky:
- Quick manual (14 pages) ,
- Quick start manual (16 pages) ,
- User manual (46 pages)
Subscribe to Our Youtube Channel
Related Manuals for Avisaro 4.0 Sky
Summary of Contents for Avisaro 4.0 Sky

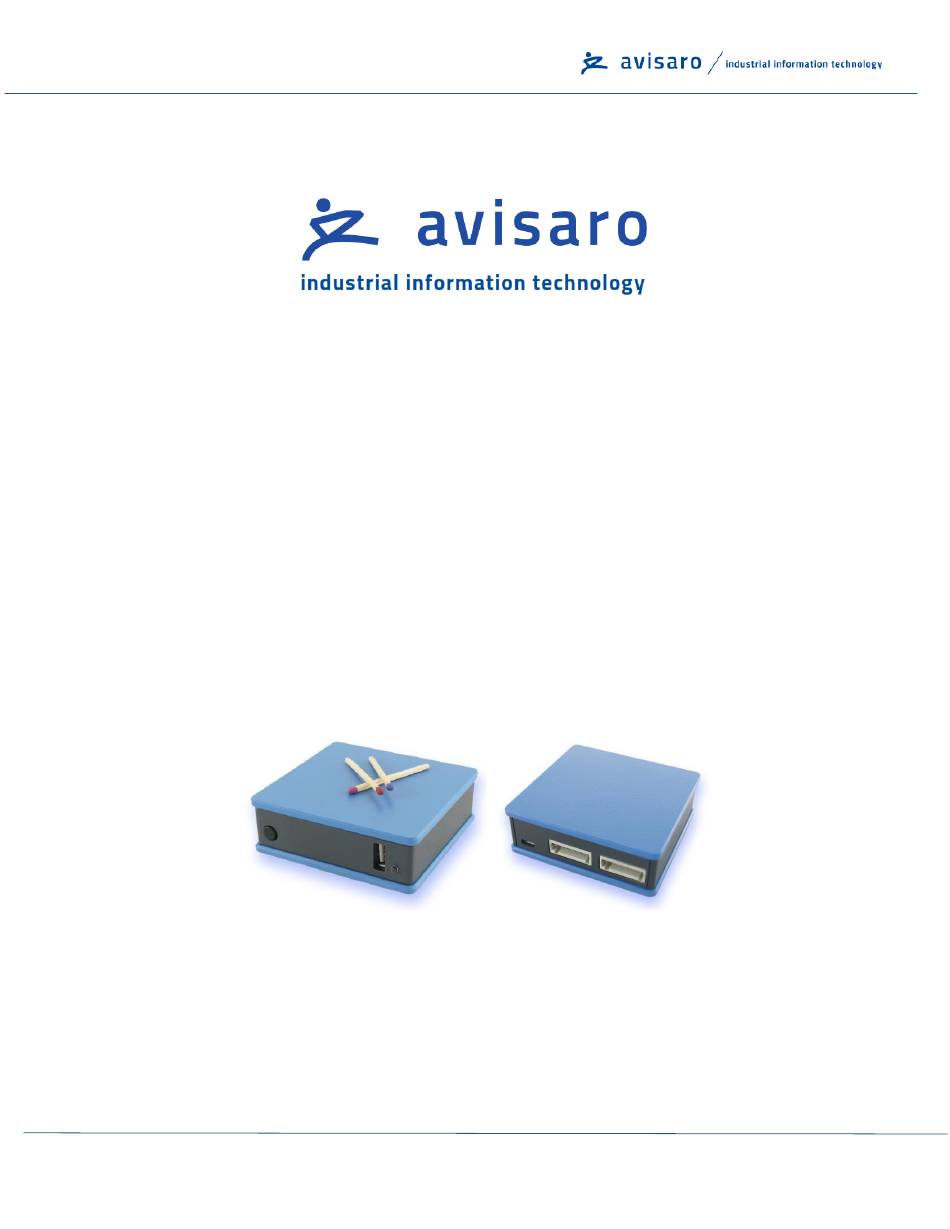

- Page 1 Jump to: Table of Content Avisaro 4.0 Product Series Quick Guide 4..20mA Data Logger & Gateway ‘4.0 Sky’ ( “M47724” / “C47724” ) Version / Date: 2022/04/11 Page: 1 2022/04/11...
-
Page 2: Table Of Contents
Enclosure and User Controls ......................... 7 Start and stop operation ....................... 7 LED Blink-Codes..........................7 Real-Time Clock ..........................7 Enclosure “4.0 Sky” with WAGO connector .................. 8 USB Storage Stick ..........................9 Filesystem and Storage size ......................9 Formatting............................. 9 Choosing the right memory stick .................... - Page 3 Jump to: Table of Content Detailed documentation ......................14 “PC Companion Software” Installation ..................15 Driver installation ........................15 Initial Set-Up ..........................16 Using the PC Companion Tool ..................... 16 Global Hardware Setup ....................... 17 6.8.1 Global HW settings ⇨ System functions ................17 6.8.2 Global HW settings ⇨...
- Page 4 Jump to: Table of Content 7.2.2 Via USB stick ........................29 7.2.3 Via “PC Companion” Software .................... 29 7.2.4 Via FTP server / internet ..................... 29 Declarations ............................31 EC/EU Declaration of Conformity ....................31 Contact and Support ........................... 32 Page : 4 2022/04/11...
-
Page 5: This Document
2.7 D OCUMENT CREATION This document was created using the “Avisaro Document Builder”. Single text blocks are merged into targeted documents. Thus, text blocks can be reused in several places, yet no need to update them manually when changes occur. -
Page 6: Imprint And Contact
Advantage is that compact and targeted documents are available. Disadvantage is that in rare occasions, a paragraph might have comments which do not fit to 100% in the place it is used. 2.8 I MPRINT AND CONTACT This document is provided by: Avisaro AG Grosser Kolonnenweg 18 E 30163 Hannover Germany Web: www.avisaro.com Email: info@avisaro.com... -
Page 7: Enclosure And User Controls
NCLOSURE AND ONTROLS 3.1 S TART AND STOP OPERATION The Avisaro 4.0 starts with operation right after power on if an USB stick is inserted. Also, after re- inserting a USB stick, the operation starts automatically. 3.2 LED B LINK ODES There is one multicolor LED to signal states of the Avisaro device. -
Page 8: Enclosure "4.0 Sky With Wago Connector
Jump to: Table of Content 3.4 E “4.0 S ” WAGO NCLOSURE WITH CONNECTOR Front with slot for USB stick. Matches are shown Reverse side shows the two WAGO connectors just for size reference: for data and power: Optional, a DIN rail fitting is available: WAGO connector are great with single wires. -
Page 9: Usb Storage Stick
Companion Software” .. “USB Storage” ether in this document, or in the overall “User Manual Serie 4.0” document. Alternatively, third party tools for Windows can be used to format large USB sticks. Please note: Avisaro can not support those third party tools within our technical support via telephone or email. -
Page 10: Recommended Memory Sticks
Jump to: Table of Content The appropriate memory size also depends on the intended use. Due to the technology, memory sticks with an extremely high capacity are typically less robust than smaller memory sizes. The loggers have a "ring memory" that can be optionally activated. If the memory stick becomes full (approx. less than 100MB free memory) the oldest files are deleted - this is a useful setting for some applications. -
Page 11: Not Recommended
Jump to: Table of Content Innodisk USB Drive 3SE 4-32 GB Industrial SLC Technology 4.4.2 Not recommended Manufacturer Model Picture Capacity Technology Remarks Verbatim Slider 8 GB Consumer Stick failures after Store N Go short period of time Page: 11 2022/04/11... -
Page 12: Interface Description And Pin Layout
Heads-up: There are sometimes Micro USB cable which only do power supply, but not data. Those are used i.e. with mobile phones. If the Avisaro device is powered, but no data connection to the PC – just choose a different USB cable. -
Page 13: Wago - 4X Current Loop 4
Jump to: Table of Content • Use external power – the data logger does not provide current sourcing • Tie “-“ of the ADC channel to Signal Ground if 2 wire setup is used • ADC channels are isolated 5.2.3 WAGO –... -
Page 14: Configuration: 'Pc Companion Software
6.3 D ETAILED DOCUMENTATION This current document shows only selected parts of the full “Avisaro PC Companion Software” user manual. The motivation is to keep this document as compact as possible. Please find the extensive “Avisaro PC Companion Software” document in the support section of the... -
Page 15: Pc Companion Software" Installation
6.5 D RIVER INSTALLATION If you connect the Avisaro Device to the PC using a Micro USB cable, a virtual COM port driver is installed. If this driver does not install automatically, you can download and install this manually: http://www.avisaro.de/de/40-PC-Treiber.html (German site) http://www.avisaro.com/en/40-ENG-PC-Driver.html... -
Page 16: Initial Set-Up
SING THE OMPANION Click on “Write Config” to transmit changes in the PC tool to the Avisaro device. Click on “Read Config” to display the currently stored values (if you navigate between options, the latest settings are read of course automatically). -
Page 17: Global Hardware Setup
In most cases, devices are shipped with proper settings on this page. 6.8.1 Global HW settings ⇨ System functions Don’t touch those settings unless advised by technical support team from Avisaro. Global HW settings ⇨ Networking 6.8.2 Activate the network interface which is physically present. -
Page 18: Interfaces ⇨ 4
Jump to: Table of Content ⇨ 4..20 6.9 I A / 0..10V NTERFACES The analog interfaces for 4..20mA and 0..10V are managed in the same settings page. 6.9.1 Sample Rate Select the desired sample rate in samples per seconds (hz). 6.9.2 Stream to In this point of time, only “Analog data (generic)”... -
Page 19: Data Processing ⇨ 4
Jump to: Table of Content ⇨ 4..20 6.10 D A / 0..10V ROCESSING Settings for collection 0..10V or 4..20mA analog data. 6.10.1 Storage Format ⇨ Storage format This is the default setting. … Page: 19 2022/04/11... -
Page 20: 6.10.2 Storage Endpoint
Jump to: Table of Content 4x Current (mA)(NMEA) Storage format example with the setting above: 2022/03/02,15:45:33,332, $20MA, 9.979 mA, 0.761 mA, 0.001 mA,-0.001 mA 2022/03/02,15:45:34,331, $20MA, 9.980 mA, 0.730 mA,-0.001 mA, 0.001 mA 2022/03/02,15:45:35,330, $20MA, 9.980 mA, 0.742 mA,-0.001 mA, 0.000 mA 2x Current (mA)(NMEA) Storage format example with the setting: 2022/03/02,16:41:24,795, $20MA,... -
Page 21: Data Endpoints ⇨ Usb Stick
Jump to: Table of Content No network forwarding Network (IP) Data are forwarded to the “Network (IP)” endpoint The same format is used as set in “Storage format” (PC companion version 2.65 and firmware version 2.65 or higher required) ⇨ USB S 6.11 D NDPOINTS TICK... -
Page 22: Data Endpoints ⇨ Network Endpoint
Jump to: Table of Content ⇨ “Create new file” No log file is created, no data are logged one file every hour Every hour a new file Log file name: yymmddhh.txt every hour with ringbuffer Every hour a new file. If memory space is exceeded, the oldest file is deleted. -
Page 23: 6.12.1 Data Endpoints ⇨ Network Endpoint ⇨ Protocol
Target port: port data are sent to Local port: not used TCP/IP client Data is send and received using the TCP/IP protocol. The Avisaro device is server – thus it is waiting for a client to connect to the Avisaro device. Page: 23 2022/04/11... -
Page 24: Data Endpoints ⇨ Cloud Settings
IP address) ⇨ C 6.13 D NDPOINTS LOUD ETTINGS The Cloud features of the Avisaro devices are best described in separate application specific documents. Thus, here the settings are described briefly without the ‘large picture’ behind it. Page : 24... -
Page 25: 6.13.1 Data Endpoints ⇨ Cloud Settings ⇨ Mode
Stored data are made available to be picked up by a Server Software. Parameter are: • User and Password • Device Name Typically, “Store&Collect” goes along with the “Avisaro Dashboard Software” (see separate documentation) 6.13.2 Data Endpoints ⇨ Remote firmware update Page: 25 2022/04/11... - Page 26 Jump to: Table of Content Check chapter “Firmware and Configuration Update” later in this document for details. Page : 26 2022/04/11...
-
Page 27: Firmware And Configuration Update
7.1.1 Introduction The configuration of the Avisaro 4.0 defines how the devices behave. Settings like baudrate, time&date, Internet access parameter, etc. are variable and can be defined by the user. There are two ways to configure the Avisaro 4.0 devices: 1) Connect the device to a PC using a Micro-USB cable. -
Page 28: Firmware Update
There are three ways to update the firmware of the Avisaro 4.0 family: 1. Via USB Stick If the Avisaro 4.0 product has a USB Host port, a new firmware can be uploaded using a USB stick. See details below. -
Page 29: Via Usb Stick
7.2.4 Via FTP server / internet Avisaro Devices can be update remotely. This is a powerful service feature. To enable, navigate to “Data Endpoints”->“CLoud setting” and activate “Remote firmware update”. Please refer to the document “PC Companion” for details, chapter “Data Endpoints-> Cloud Settings”. - Page 30 30 seconds which is sensitive to power failure) Recommendations: • It is highly recommended to create a different user pointing to a different subdirectory for each Avisaro Data logger. This way, a firmware update can be directed to each Page : 30 2022/04/11...
-
Page 31: Declarations
Jump to: Table of Content ECLARATIONS 8.1 EC/EU D ECLARATION OF ONFORMITY Page: 31 2022/04/11... -
Page 32: Contact And Support
Jump to: Table of Content ONTACT AND UPPORT Please contact Avisaro if there are any questions: Avisaro AG Grosser Kolonnenweg 18 E 30163 Hannover Germany Email: support@avisaro.com End of this documentation Page : 32 2022/04/11...
