Avisaro 4.0 Series Quick Start Manual
Rs232 data logger with lan(rj45)
Hide thumbs
Also See for 4.0 Series:
- Technical user's manual (57 pages) ,
- User manual (46 pages) ,
- Quick manual (11 pages)
Subscribe to Our Youtube Channel
Related Manuals for Avisaro 4.0 Series
Summary of Contents for Avisaro 4.0 Series

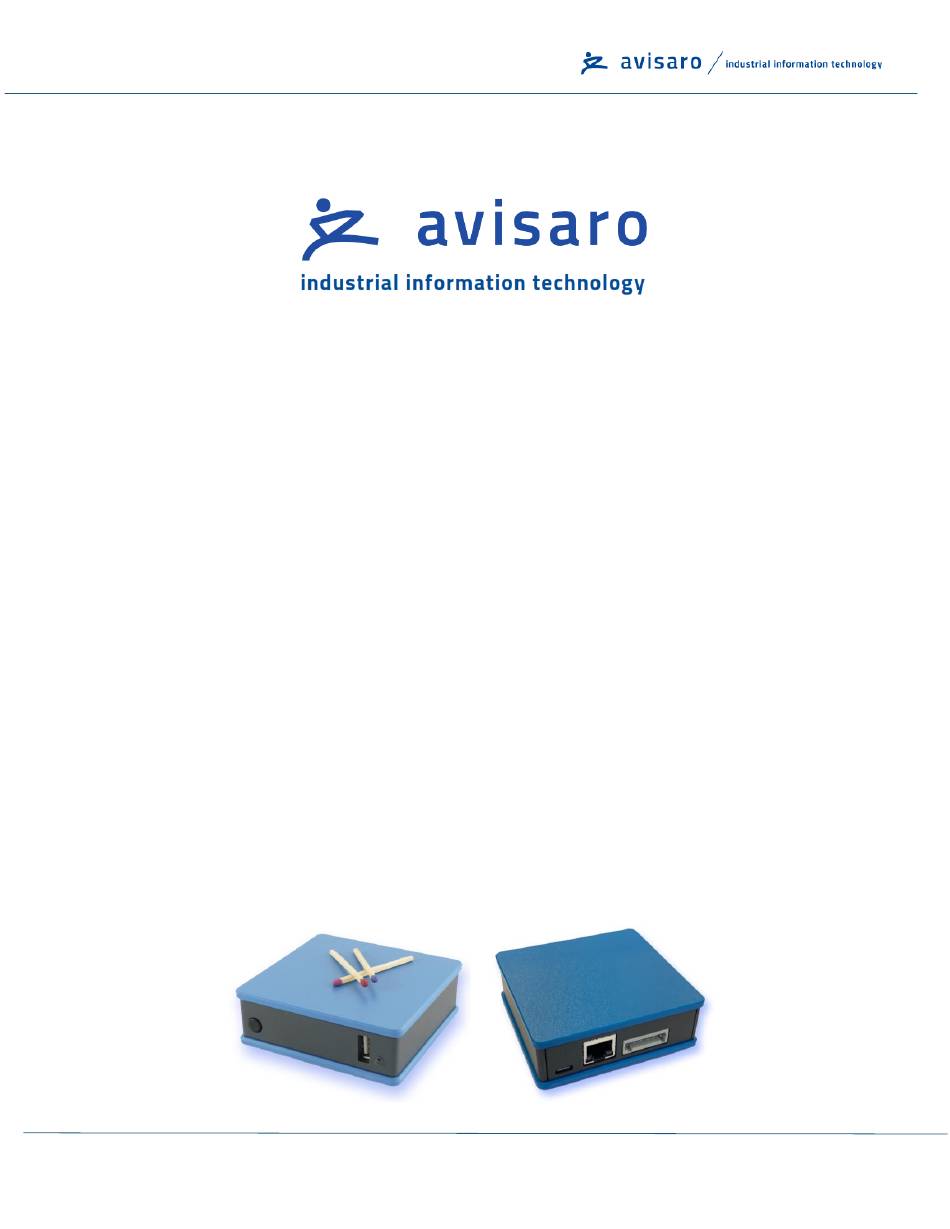

- Page 1 Jump to: Table of Content Avisaro 4.0 Product Series Quick Guide RS232 Data Logger with LAN(RJ45) ( “4.0 Sky”: M41434 ) RS232 Data Logger with Ethernet Version / Date: 2021/11/23 Page: 1 2021/11/23...
-
Page 2: Table Of Contents
D-Sub Connector - 1x RS232 (“M41014”, “C41014”) ............10 Ethernet (RJ45 LAN) Interface ..................... 11 Configuration: ‘PC Companion Software’ ................... 12 How to configure Avisaro “Series 4.0” products ................ 12 Concept of operation ........................12 Detailed documentation ......................12 “PC Companion Software” Installation ..................13 Driver installation ........................ - Page 3 Jump to: Table of Content Initial Set-Up ..........................14 Using the PC Companion Tool ..................... 14 Declarations ............................15 EC/EU Declaration of Conformity ....................15 Contact and Support ........................... 16 Page: 3 2021/11/23...
-
Page 4: This Document
2.7 D OCUMENT CREATION This document was created using the “Avisaro Document Builder”. Single text blocks are merged into targeted documents. Thus, text blocks can be reused in several places, yet no need to update them manually when changes occur. -
Page 5: Imprint And Contact
Jump to: Table of Content 2.8 I MPRINT AND CONTACT This document is provided by: Avisaro AG Grosser Kolonnenweg 18 E 30559 Hannover Germany Web: www.avisaro.com Email: info@avisaro.com Page: 5 2021/11/23... -
Page 6: Enclosure And User Controls
NCLOSURE AND ONTROLS 3.1 S TART AND STOP OPERATION The Avisaro 4.0 starts with operation right after power on if an USB stick is inserted. Also, after re- inserting a USB stick, the operation starts automatically. 3.2 LED B LINK ODES There is one multicolor LED to signal states of the Avisaro device. -
Page 7: Enclosure "4.0 Sky" With Ethernet And Wago Connector

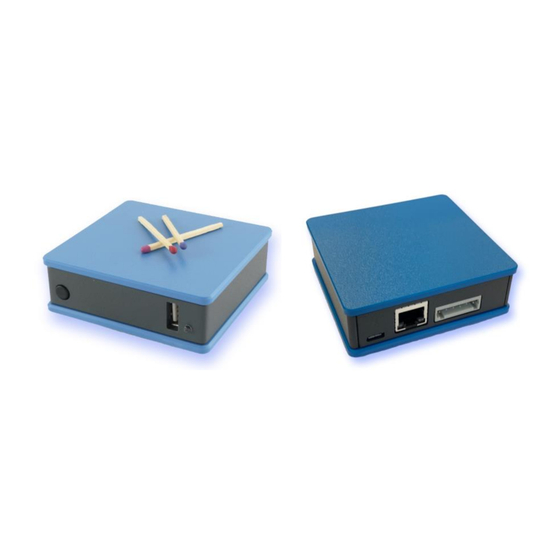

Jump to: Table of Content 3.4 E “4.0 S ” WAGO NCLOSURE WITH THERNET AND CONNECTOR Front with slot for USB stick. Matches are shown Reverse side shows Ethernet (RJ45) and WAGO just for size reference: connector for data and power. The micro USB port is for configuration only: Optional, a DIN rail fitting is available: There is an optional adapter piece to connect the... -
Page 8: Usb Storage Stick
There are no speed requirements. Memory sticks that are advertised as particularly fast offer no (!) advantage in the Avisaro data logger. Typically these optimizations are designed for cameras etc.. Memory sizes from 4 to 256 GByte are supported. As file system FAT or FAT32 (preferred) is used. NTSF or others are not supported. -
Page 9: Interface Description And Pin Layout
Heads-up: There are sometimes Micro USB cable which only do power supply, but not data. Those are used i.e. with mobile phones. If the Avisaro device is powered, but no data connection to the PC – just choose a different USB cable. -
Page 10: D-Sub Connector - 1X Rs232 ("M41014", "C41014")
Supply voltage does not carry an output voltage – thus if the device is powered via barrel connector, Pin 9 does not show the input voltage (internal diode). This is for security reason. If needed, Avisaro can modify the device such that this pin can be used to power other devices. -
Page 11: Ethernet (Rj45 Lan) Interface
Jump to: Table of Content 5.3 E (RJ45 LAN) I THERNET NTERFACE This is an industry standard Ethernet (LAN) interface. Supported rates are: • 10 BaseT • 100 BaseT The port does not (!) cross automatically. Thus, if connected directly to a PC, either the PC has to be auto-crossing or you need to use a Ethernet Cross-Over cable. -
Page 12: Configuration: 'Pc Companion Software
6.3 D ETAILED DOCUMENTATION This current document shows only selected parts of the full “Avisaro PC Companion Software” user manual. The motivation is to keep this document as compact as possible. Please find the extensive “Avisaro PC Companion Software” document in the support section of the... -
Page 13: Pc Companion Software" Installation
6.5 D RIVER INSTALLATION If you connect the Avisaro Device to the PC using a Micro USB cable, a virtual COM port driver is installed. If this driver does not install automatically, you can download and install this manually: http://www.avisaro.de/de/40-PC-Treiber.html (German site) http://www.avisaro.com/en/40-ENG-PC-Driver.html... -
Page 14: Initial Set-Up
SING THE OMPANION Click on “Write Config” to transmit changes in the PC tool to the Avisaro device. Click on “Read Config” to display the currently stored values (if you navigate between options, the latest settings are read of course automatically). -
Page 15: Declarations
Jump to: Table of Content ECLARATIONS 7.1 EC/EU D ECLARATION OF ONFORMITY Page: 15 2021/11/23... -
Page 16: Contact And Support
Jump to: Table of Content ONTACT AND UPPORT Please contact Avisaro if there are any questions: Avisaro AG Grosser Kolonnenweg 18 E 30163 Hannover Germany Email: support@avisaro.com End of this documentation Page : 16 2021/11/23...
