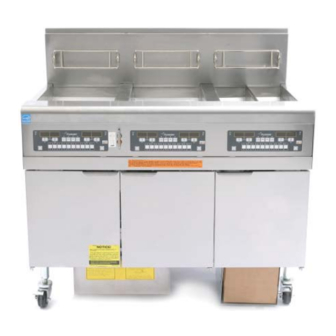

Frymaster LOV M3000 Quick Reference

Responding to Filtration Questions on the M3000 Computer Display
Is Vat Full?
1. Computer displays IS VAT FULL?
yes/no *.
2. Press 2 (NO).
3. Computer displays FILLING, as the oil is being
pumped back to the frypot.
4. After pumping cycle quits, computer displays IS
VAT FULL? Yes/no.
5. If pot is filled press 1 (YES) and go to Step 9.
6. If pot is not filled, press 2 (NO). The pump will run
again for 30 seconds and display Is VAT
FULL? Yes /no. (Three unsuccessful
Responding to Fryer
Filter Prompts
Yes to Filter Prompt
1. Computer displays FILTER
NOW? Yes no and the blue
LED flashes.
2. Press 1 (YES) .
3. Computer displays SKIM VAT.
4. Use skimmer to remove debris from
frypot.
5. Computer displays CONFIrM?
Yes no .
6. Press 1 (YES) .
7. Computer displays draining,
washing, FILLING during fil-
tration.
8. Computer displays LOW TEMP
until back to operating temperature.
9. Computer displays product name or
dashed lines.
No to Filter Prompt
1. Computer displays FiLTER
NOW? Yes no and the blue
LED flashes.
2. Press 2 (NO).
3. Fryer resumes normal operation.
05/11 LOV™ Fryer 819-6867
LOV Quick Reference
attempts to fill the vat will lead to a change
filter pad? YES/NO display.)
7. Computer displays Change Filter pad?
YES/NO. Press 1 (YES) .
8. Clean the filter pan and replace the filter paper and
powder.
9. Once the pan is pulled from the cabinet for a mini-
mum of thirty seconds the computer display returns
to the last state or OFF.
10. Re-install the filter pan.
*
NOTE: After six unsuccessful attempts to fill the vat, the
fryer displays Service Required. Pressing NO
Daily Maintenance Filtration
1. Press and hold Filter button for three
seconds (right side for full vat; desired
side for split vat).
2. Computer chirps, displays FILTER
MENU and AUTO FILTER .
3. Use button to scroll to MAINT FILTER
4. Press 1 .
5. Computer displays MAINT
FILTER? and YES NO .
6. Press 1 (YES).
7. Computer displays
FIL-
.
TERING
8. Oil drains from frypot
9. Computer displays SCRUB
VAT COMPLETE? and
YES .
10. Scrub vat and Press 1 (YES).
11. Computer displays is oil sensor
clean? and YES (gas only).
12. Clean oil sensor (gas only) with a no
scratch pad and press 1 (YES) (see
photo).
13. Computer displays WASH VAT?
YES .
14. Press 1 (YES).
15. Oil flows across frypot and computer
displays
WASHING.
16. Computer displays WASH AGAIN?
allows cooking , but the fryer will re-prompt every 15 min-
utes. Call for service.
Clogged Drain
1. Computer displays CLEAR DRAIN changing to
2. Clear debris from the drain using the fryer's friend
3. The computer displays DRAINING and normal
and YES NO .
17. Press 2 for NO ; 1 for
18. After NO response, computer displays
RINSING .
19. Oil washes across frypot.
.
20. Computer Displays RINSE AGAIN?
and YES NO .
21. Press 2 for NO ; 1 for
22. After NO response, computer
displays POLISH? and
23. Press 1
24. Oil flows through frypot.
25. Computer displays
ING and a five-minute countdown
timer.
26. After five minutes, or a pressing of the
2 button to stop the polishing, the
computer displays FILL VAT?
YES .
27. Press 1 (YES).
Frypot fills and displays FILLING.
28.
29. Computer displays IS VAT FULL?
and
and YES NO .
30. Press 1 for yes; 2 for no.
31. With yes selection, computer displays
OFF.
32. With a no selection, pump runs and
steps repeat, starting at step 29.
IS DRAIN CLEAR? alternating with YES.
and press the (1 yes) button once the drain is
cleared to continue.
auto filtration operation resumes.
Responding to Low
Oil Warning Light
YES.
JIB System (Jug In Box)
1. Orange LED on fryer lights.
2. Open cabinet door to access JIB.
3. Remove oil line from JIB
4. Remove JIB.
YES.
5. Open new oil jug and remove liner
under cap.
YES NO .
6. Position pick-up tube in new box
with attached cap in place.
7. Position the new jug in the fryer
POLISH-
cabinet.
8. Press and hold orange reset button
until orange LED goes out.
Bulk Oil System
and
1. Orange LED on fryer lights.
2. Open JIB door.
3. Press and hold orange reset button
until the jug is full then release.
DO NOT OVERFILL THE JUG.
4. Orange light goes out.
