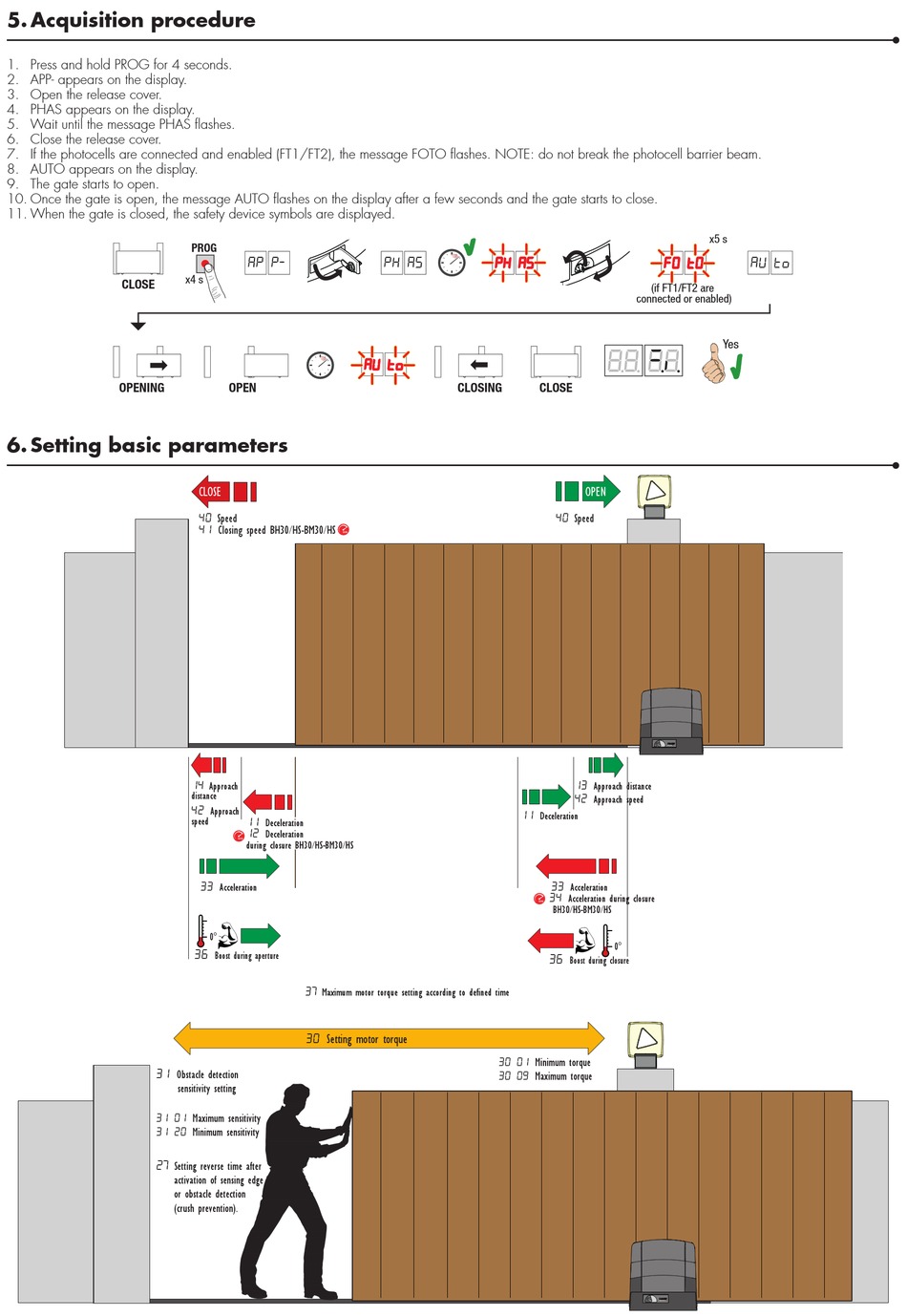

5. Acquisition procedure
1. Press and hold PROG for 4 seconds.
2. APP- appears on the display.
3. Open the release cover.
4. PHAS appears on the display.
5. Wait until the message PHAS flashes.
6. Close the release cover.
7. If the photocells are connected and enabled (FT1/FT2), the message FOTO flashes. NOTE: do not break the photocell barrier beam.
8. AUTO appears on the display.
9. The gate starts to open.
10. Once the gate is open, the message AUTO flashes on the display after a few seconds and the gate starts to close.
11. When the gate is closed, the safety device symbols are displayed.
CLOSE
OPENING

6. Setting basic parameters


Obstacle detection
sensitivity setting
  Maximum sensitivity
  Minimum sensitivity

Setting reverse time after
activation of sensing edge
or obstacle detection
(crush prevention).
PROG
AP P-
x4 s
OPEN
CLOSE
 Speed
 Closing speed BH30/HS-BM30/HS

Approach
distance

Approach
speed

Deceleration

Deceleration
during closure BH30/HS-BM30/HS

Acceleration
0°

Boost during aperture

Maximum motor torque setting according to defined time
 Setting motor torque
PH A5 PH A5 PH A5
AU to AU to
CLOSING

  Minimum torque
  Maximum torque
x5 s
FO FO TO TO
(if FT1/FT2 are
connected or enabled)
CLOSE
OPEN
 Speed

Approach distance

Approach speed
Deceleration

Acceleration

Acceleration during closure
BH30/HS-BM30/HS
0°

Boost during closure
AU to
Yes
