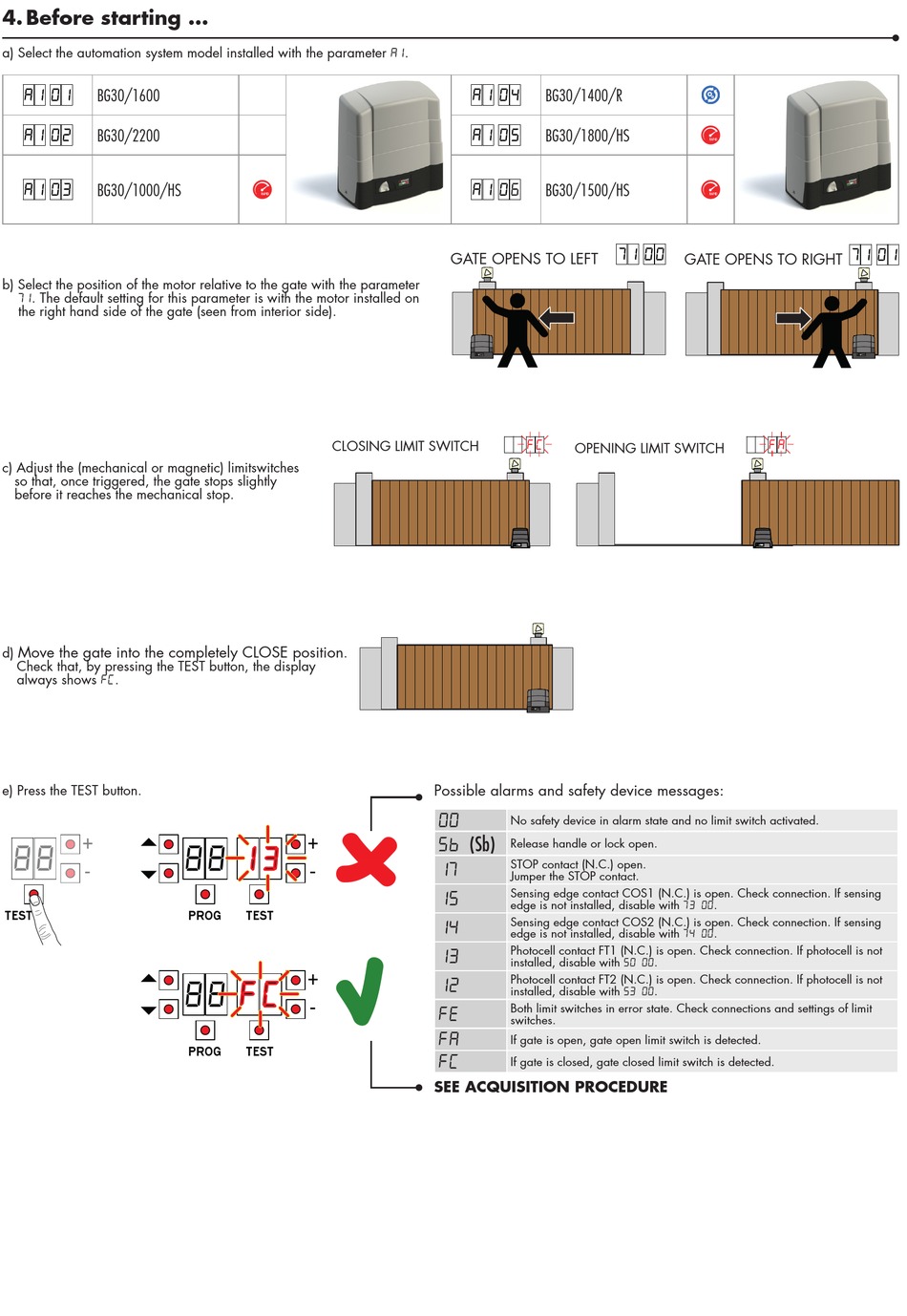

4. Before starting ...
a) Select the automation system model installed with the parameter .
BG30/1600
BG30/2200
BG30/1000/HS
b) Select the position of the motor relative to the gate with the parameter
. The default setting for this parameter is with the motor installed on
the right hand side of the gate (seen from interior side).
c) Adjust the (mechanical or magnetic) limitswitches
so that, once triggered, the gate stops slightly
before it reaches the mechanical stop.
Move the gate into the completely CLOSE position
d)
Check that, by pressing the TEST button, the display
always shows FC.
e) Press the TEST button.
+
-
CLOSING LIMIT SWITCH
.
+
-
PROG TEST
+
-
PROG TEST
BG30/1400/R
BG30/1800/HS
BG30/1500/HS
GATE OPENS TO LEFT
OPENING LIMIT SWITCH
Possible alarms and safety device messages:
00
No safety device in alarm state and no limit switch activated.
Sb (Sb)
Release handle or lock open.
STOP contact (N.C.) open.

Jumper the STOP contact.
Sensing edge contact COS1 (N.C.) is open. Check connection. If sensing
5
edge is not installed, disable with 3 00.
Sensing edge contact COS2 (N.C.) is open. Check connection. If sensing
4
edge is not installed, disable with 4 00.
Photocell contact FT1 (N.C.) is open. Check connection. If photocell is not
3
installed, disable with 50 00.
Photocell contact FT2 (N.C.) is open. Check connection. If photocell is not
2
installed, disable with 53 00.
Both limit switches in error state. Check connections and settings of limit
fe
switches.
fa
If gate is open, gate open limit switch is detected.
fC
If gate is closed, gate closed limit switch is detected.
SEE ACQUISITION PROCEDURE
GATE OPENS TO RIGHT
