Snap Server
These instructions explain how to install a SCSI card on the Snap Server 4400.

Shutting Down the Server

Shut down the server before you make any repairs. Improper shutdown may
Caution
lead to loss of data or physical harm.
To start the shutdown process, press the power button on the front of the server.
1
The green power LEDs remains lit until the
shutdown process is complete. Do not disconnect
the AC power cord while the LED remains lit.
After the power LED is off, disconnect the AC power cord from the back of the
2
server.
If you need to remove the server from a rack to access to the back panel,
3
disconnect the Ethernet cable(s).
Field Service Documentation
Copyright © 2009, Overland Storage, Inc. All rights reserved. Information in this document is subject to change without notice and does
not represent a commitment on the part of Overland Storage or any of its subsidiaries.

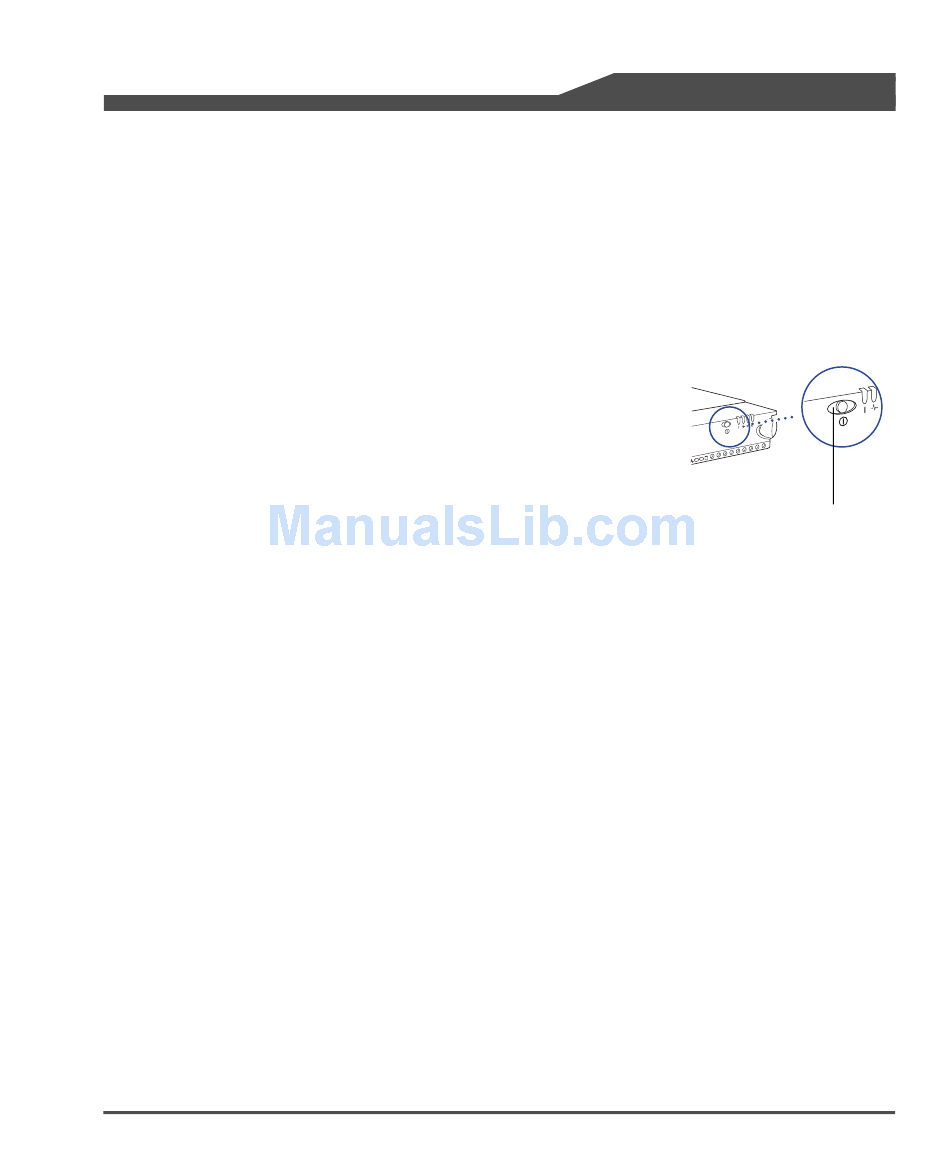

4400 SCSI Card
Snap Server 4400
Power button
1
