Summary of Contents for Adaptec 5325301843

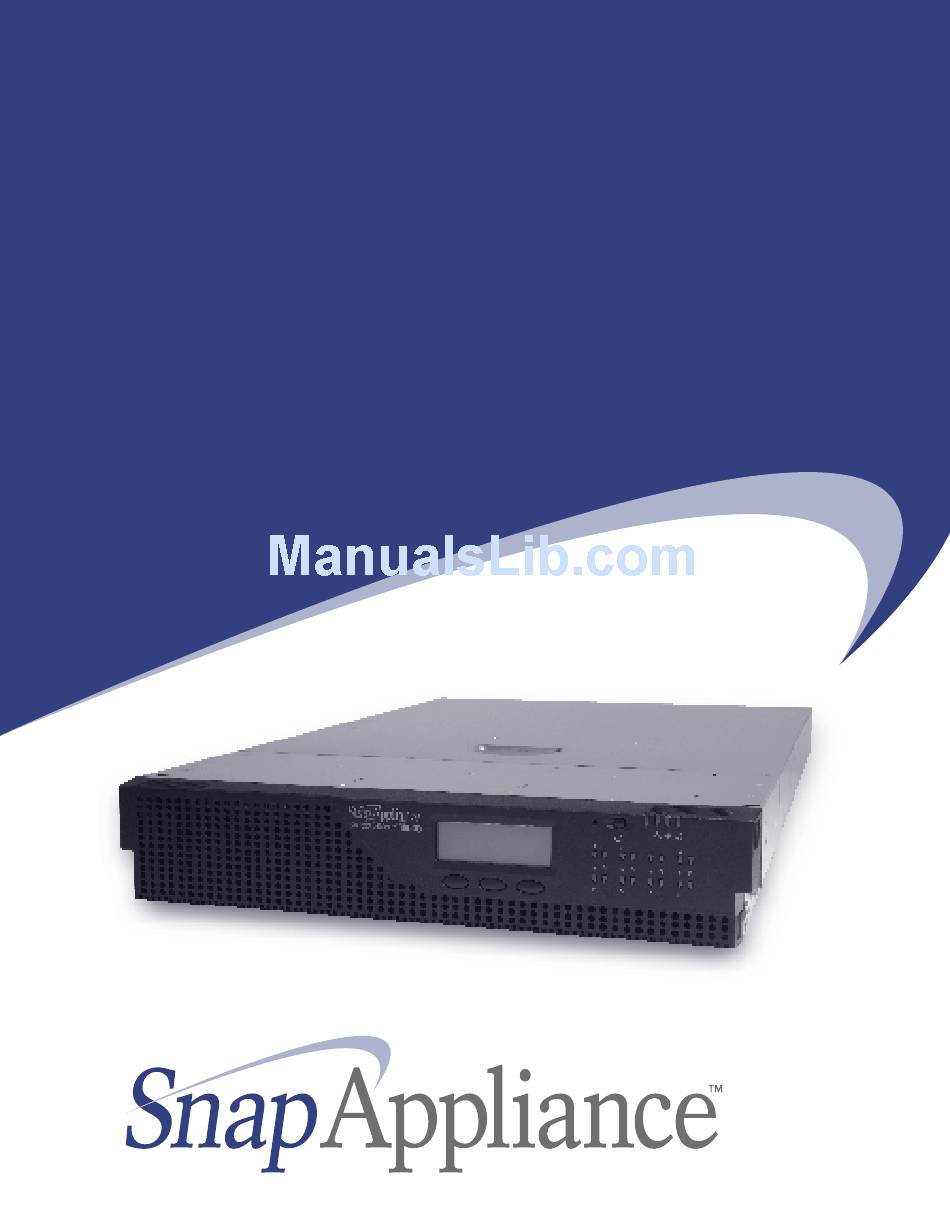

- Page 1 Quick Start Guide and User CD Kurzanleitung und Benutzer-CD Guía de iniciación rápida y CD del usuario Guide de mise en route rapide et CD de l’utilisateur...
-
Page 2: About This Guide
About This Guide This guide shows you how to quickly install and connect your Snap Server installation, gather all the hardware components required for your system: Check the contents of your shipping package for all the items shown in Hardware Features. Gather any optional components needed to complete your system as described next in Optional Hardware Components. -
Page 3: Hardware Features
Hardware Features Reset button Power button System status lights Quick Start Guides LCD control buttons Disk drive status lights Note The monitor, USB, keyboard, and mouse connectors on the back of the Snap Server are disabled and cannot be used for administrative purposes. Snap Servers are managed via the browser-based Administration tool. 10 11 Ethernet cables Backup software... -
Page 4: Installing The Server In A Rack
Installing the Server in a Rack As shown in the Hardware Features illustration, the Snap Server ships with two slide rail assemblies with a packet of screws for mounting the rails to the chassis and rack; left and right front brackets with a packet of screws for securing the server to the rails. - Page 5 Attaching the Cable Management Assembly The cable management assembly consists of the cable arm and a packet of velcro strips to secure the cables to the arm. The assembly simply snaps into the left slide rail; no tools are required for installation. Thread the velcro ties through the cable management arm.
- Page 6 Connecting to the Snap Server for the First Time Snap Servers are preset to acquire an IP address from a DHCP server. If no DHCP server is found on the network, the Snap Server defaults to an IP address of 10.10.10.10, and you may not be able to see the server on your network.
- Page 7 User CD For immediate response to a service inquiry, you can submit a question to our technical support department using our Expert Knowledge Base System Sie finden den technischen Service oder Kundendienst für Ihren Snap Server auf unserer Website. Wenn Kunden sofortige Antworten auf eine Serviceanfrage wünschen, können sie mit Hilfe unseres Expert Knowledge Base System Para obtener servicio o asistencia técnica para su Snap Server, visite nuestro sitio Web.
