Table of Contents

Installing a SAS HBA Card

The SAS HBA card is required for connectivity to an S50 expansion array.
There are static-sensitive electronics inside the unit. Before you handle any
Caution
parts, make sure you are working at a static-controlled workstation and that you are
properly grounded.

Shutting Down the Server

Power down the server before you make any repairs. Improper shutdown may lead to
loss of data or physical harm.
To start the shutdown process, press the power
1
button on the front of the server.
The green power LED remains lit until the shutdown
process is complete. DO NOT disconnect the AC
power cord while the LED remains lit.
After the power LED is off, disconnect the AC power cord(s) and all other cables
2
from the back of the server.
The server is heavy. With the help of an assistant, remove the server from the
3
rack to a clean surface with ample room to the front and rear.

Removing the Top Cover and SCSI Card

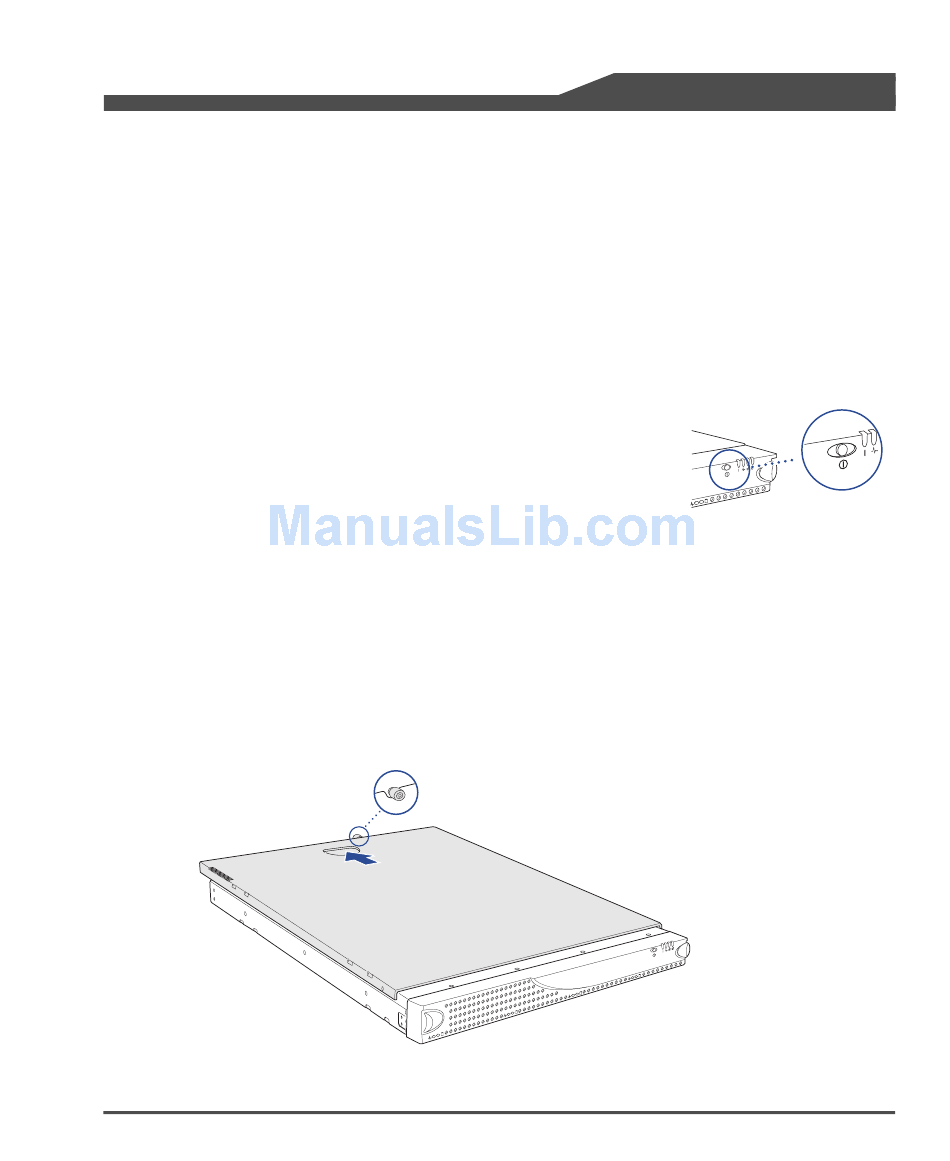

Remove the top cover of the Snap Server by turning the cover retention screw at
1
the back of the server counterclockwise until it becomes loose.
Field Service Documentation
Copyright © 2009, Overland Storage, Inc. All rights reserved. Information in this document is subject to change without notice and does
not represent a commitment on the part of Overland Storage or any of its subsidiaries.
Snap Server 4500
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5325301841 and is the answer not in the manual?

Questions and answers

Related Manuals for Adaptec 5325301841

Summary of Contents for Adaptec 5325301841

  • Page 1 Installing a SAS HBA Card The SAS HBA card is required for connectivity to an S50 expansion array. There are static-sensitive electronics inside the unit. Before you handle any Caution parts, make sure you are working at a static-controlled workstation and that you are properly grounded.
  • Page 2 Installing a SAS HBA Card Standing in front of the server, press down firmly on the cover with both hands, and push the cover backwards with a short, forceful thrust. Slide the cover off the rear of the server and set it aside. Remove the plastic PCI retention clip from the right rear corner of the server by lifting it out of the chassis.
  • Page 3 Snap Server 4500 Install the SAS HBA card into the lower (PCIX) slot by grasping only the edges of the card and pressing firmly until it snaps into place. SCSI SAS HBA Do one of the following: • If reinserting the SCSl card to the upper (PCI) slot, grasp only the edges of the card and press firmly until it snaps into place.
  • Page 4 Installing a SAS HBA Card Restoring Power to the Server If you disconnected the Ethernet cable(s), reattach them to the server. Connect the power cord. Press the power button on the front of the server. Copyright © 2009, Overland Storage, Inc. All rights reserved. Information in this document is subject to change without notice and does not represent a commitment on the part of Overland Storage or any of its subsidiaries.
