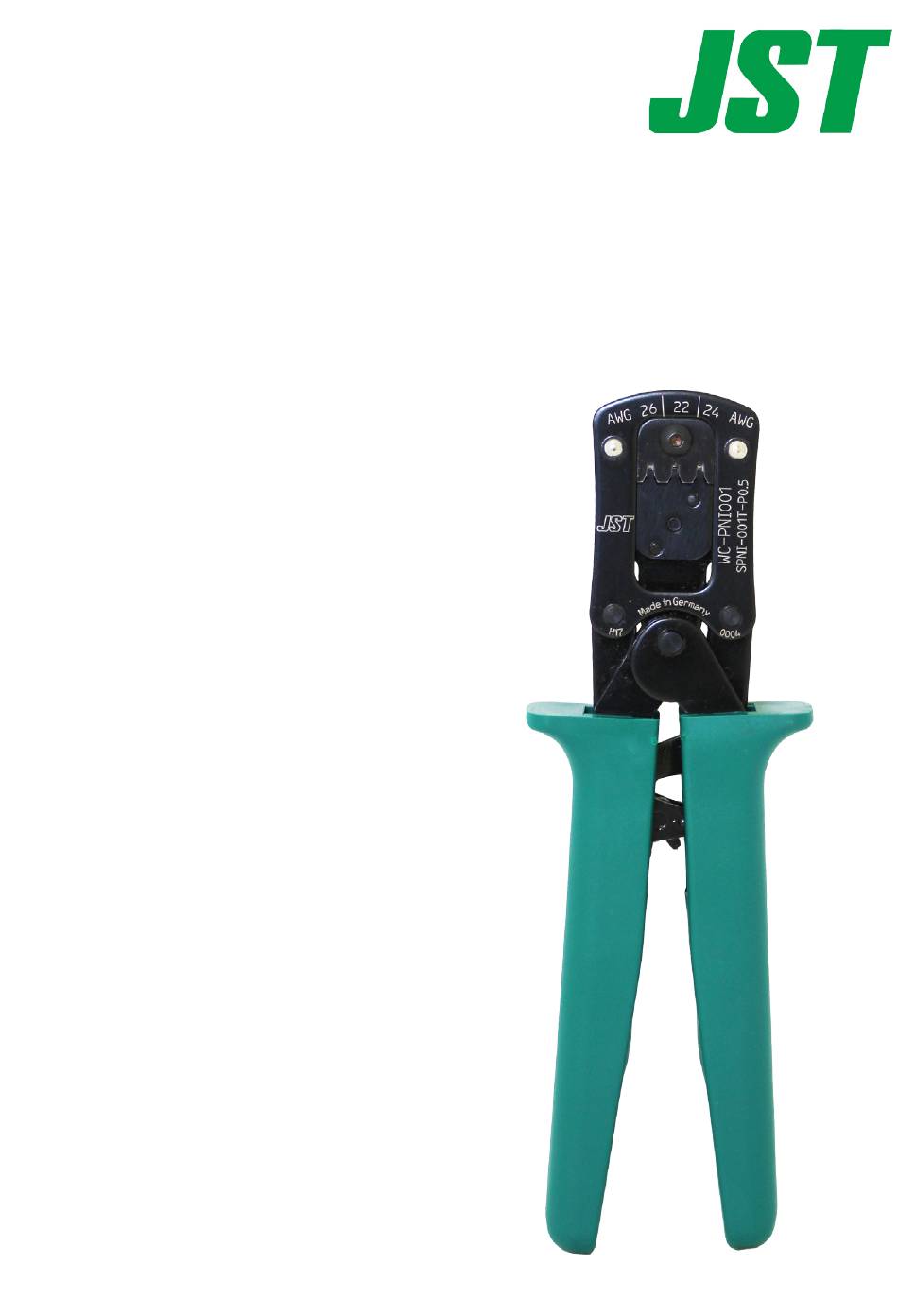

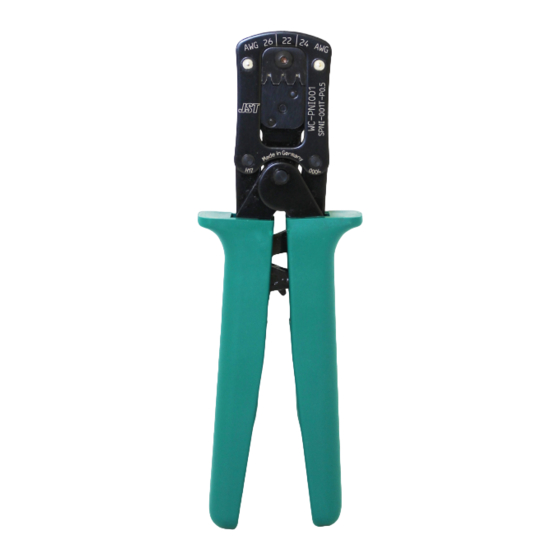

- Page 1 INSTRUCTION MANUAL BEDIENUNGSANLEITUNG Crimp Tool/Crimpwerkzeug CS 10 - WC - PNI001 Application/Anwendungsbereich for processing of JST contacts zur Verarbeitung von JST Kontakten SPNI-001T-P0.5 AWG 26 AWG 22 AWG 24 08/2017-Rev. A...
- Page 2 Pos. 1: AWG 26 Open the tool. Pos. 2: AWG 22 Werkzeug öffnen. Pos. 3: AWG 24 Open the flap locator. Contact has to be inserted until Klapppositionierer herausklappen. stop. Please pay attention to the correct cross section. Kontakt bis Anschlag einschieben. Querschnittsbereich beachten! Close the flap locator.
- Page 3 Close the tool lightly until the Insert the cable until insulation contact is held stop blade. (1.rachet lever). Leiter bis Iso-Stop Blech Werkzeug leicht einschieben. vorschließen, bis Kontakt gehalten wird (1.Rastung). Close the tool. Open the tool. Werkzeug schließen. Werkzeug öffnen. Loosen the flap locator.
- Page 4 MAINTENANCE The tool has to be kept clean and oiled occasionally. Referring to the results of the life-time simulation we recommend the exchange of the locator after 1000 cycles at the latest. Furthermore we recommend checking the tool regularly by measuring the dimensions indicated in the specifications of the crimp terminal.
