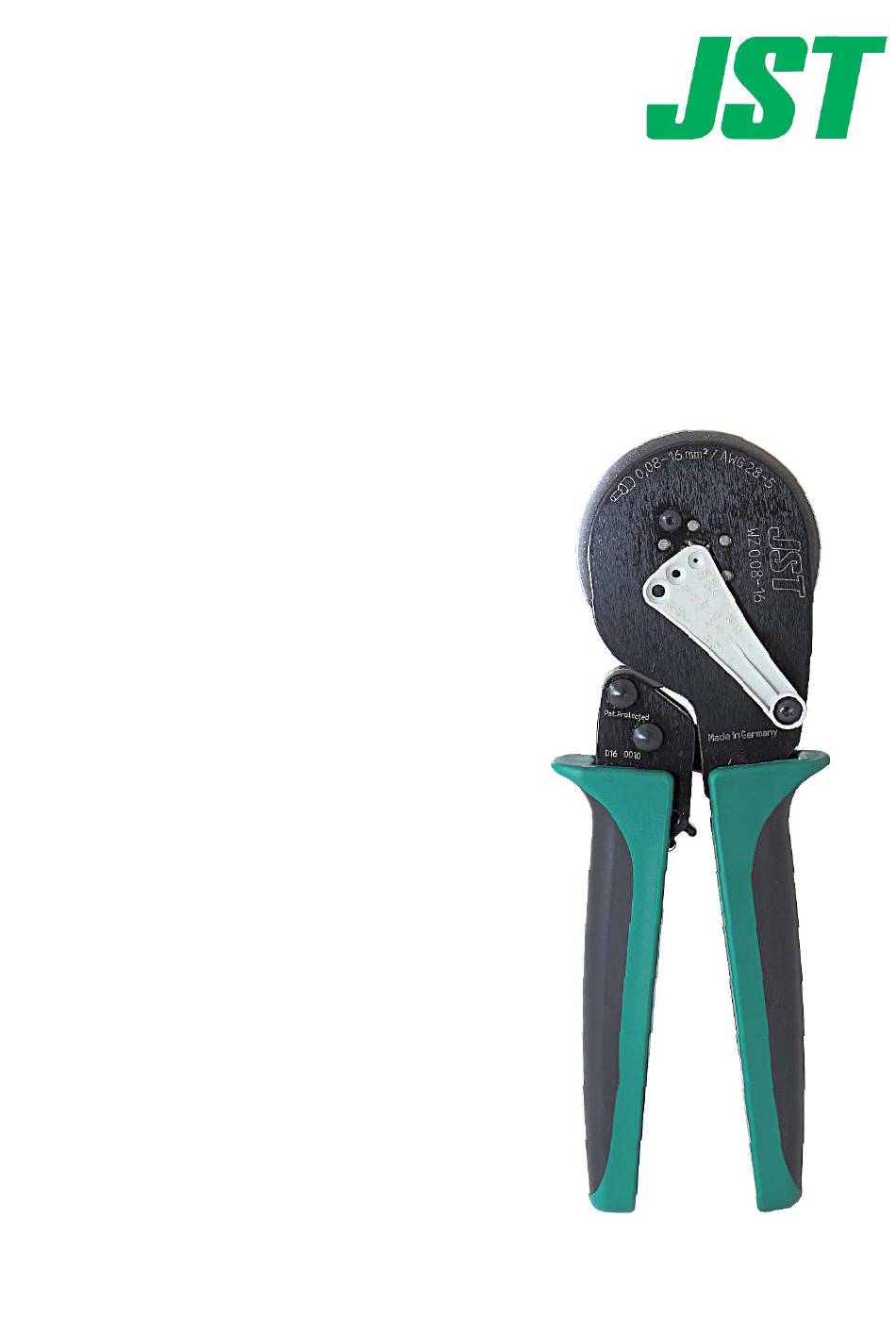

- Page 1 INSTRUCTION MANUAL BEDIENUNGSANLEITUNG Crimp Tool/Crimpwerkzeug WZ 0.08-16 Application/Anwendungsbereich for processing of wire end ferrules with or without insulation sleeve zur Verarbeitung von Aderendhülsen mit und ohne Isolierkragen AWG 28-5 04/2016-Rev. A...
- Page 2 CRIMPING/CRIMPEN Strip the wire to the correct length and Close the tool until it opens automati- insert it into the terminal until stop. cally. Kabel auf die dem Kontakt ange- Werkzeug schließen, bis es selbst- passte Länge abisolieren und bis ständig öffnet.
- Page 3 LOCATOR CHANGE/POSITONIERERWECHSEL Loosen the screw of the locator. Re- Insert the locator on the backside of the move the locator. Pay attention that the tool and bring up the screw until stop. black rubber loop doesn‘t get lost! Positionierer auf der Rückseite mon- Schraube des Positionierers herausdre- tieren, Schraube bis zum Anschlag hen.
- Page 4 MAINTENANCE The tool has to be kept clean and oiled occasionally. Referring to the results of the life-time simulation we recommend the exchange of the locator after 1000 cycles at the latest. Furthermore we recommend checking the tool regularly by measuring the dimensions indicated in the specifi...
