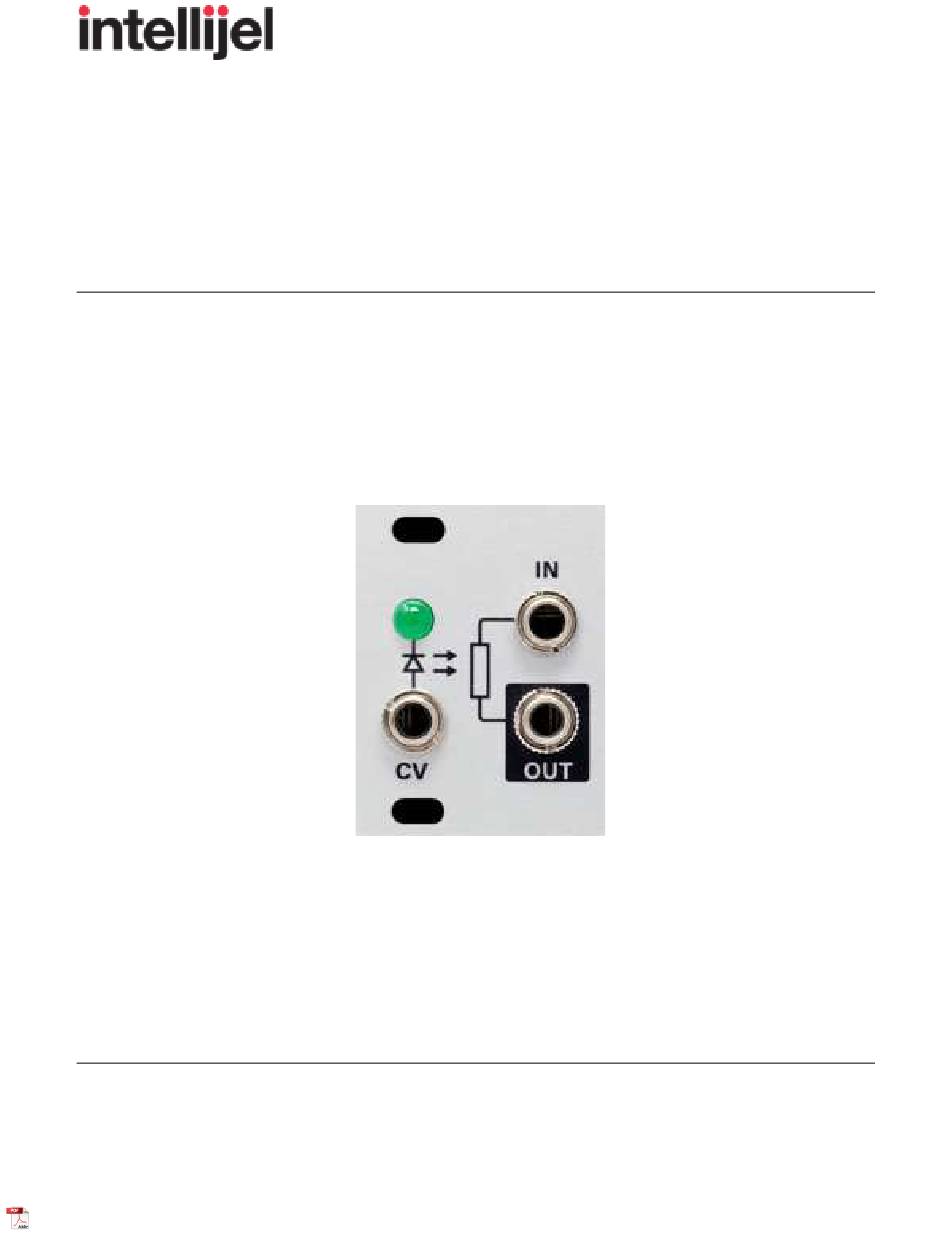

- Page 1 Passive LPG 1U Passive Low Pass Gate Manual (English) Revision: 2021.07.27...
-
Page 2: Table Of Contents
TABLE OF CONTENTS COMPLIANCE INSTALLATION OVERVIEW FRONT PANEL TECHNICAL SPECIFICATIONS Passive LPG 1U Manual... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Installation
INSTALLATION This module is designed for use within an Intellijel-standard 1U row, such as contained within the Intellijel 4U and 7U Eurorack cases. Intellijel’s 1U specification is derived from the Eurorack mechanical specification set by Doepfer that is designed to support the use of lipped rails within industry standard rack heights. -
Page 5: Overview

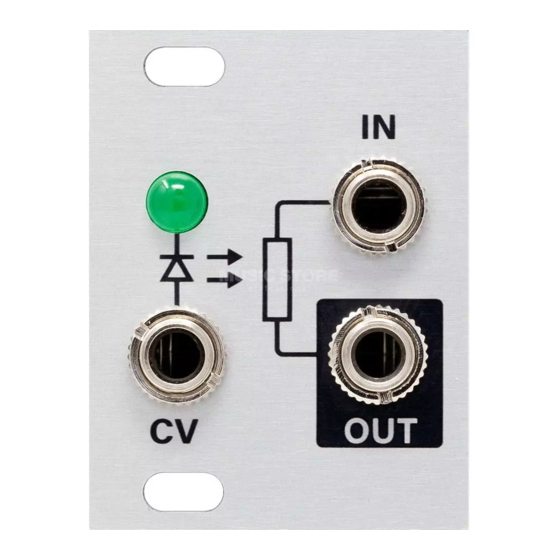

Indeed, low pass gates are the main ingredient of the so-called “Buchla Bongo” sound. The Intellijel Passive Low Pass Gate 1U is a simple, DC coupled, vactrol based, 1-pole passive low pass gate, which is controlled by an external CV input. Without positive control voltage, the gate is completely closed and none of the LPG’s input signal is passed through to the output. -
Page 6: Front Panel
CV IN jack. When excited this way, the circuit imparts a more natural sounding filter/envelope to the input that’s reminiscent of the sonic characteristics of a struck object, such as a hand drum or marimba. Passive LPG 1U Manual... -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS Width 6 hp Maximum Depth 19 mm Current Draw None (passive module) Passive LPG 1U Manual...
