rosseto PROC-4S Assembly Instructions

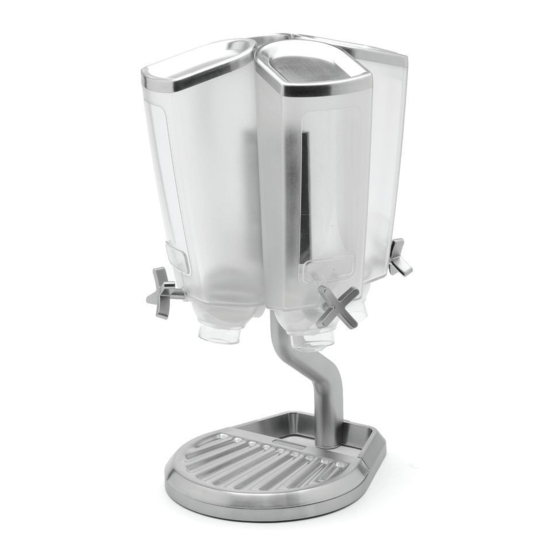

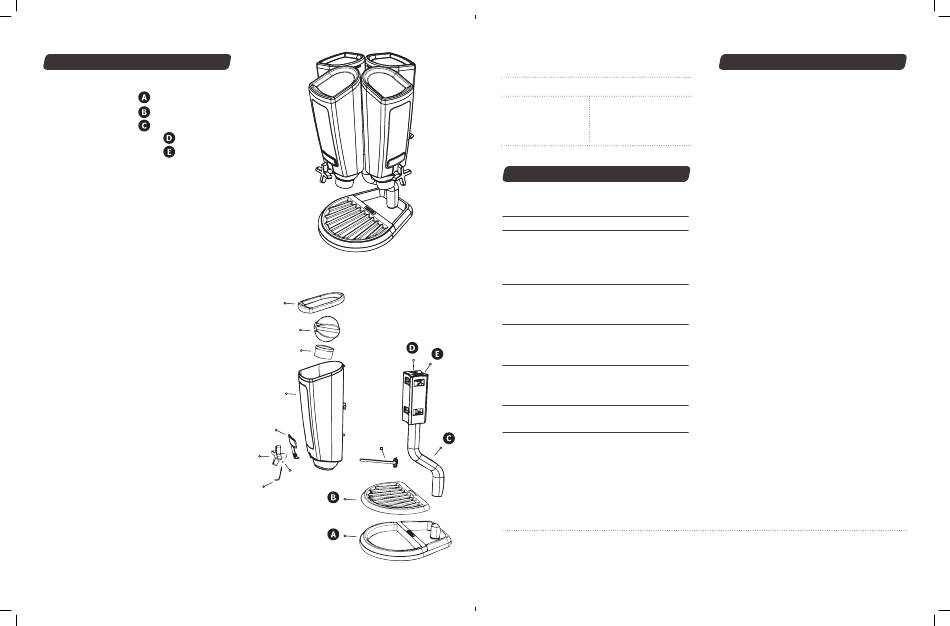

Assembly Instructions for PROC-4S
1. Carefully remove all parts from packaging:
• 1-PRO C-Base
• 1-PRO C-Tray
• 1-PRO C-Pole3.5
I. 1.5mm Allen Wrench
II. 5mm Allen Wrench
• 4-PROC Containers
I. 4-PRO Lid, Stainless Steel (1)
II. 4-6WR PRO Silicon Paddle Wheel (2)
III. 4-Regular Nozzle (3)
IV. 4-Container (4)
V. 4-Name Tag (5)
VI. 4-PRO Handle (6)
VII. 4-Mini 1.5mm Screw for Handle (7)
VIII. Plastic Pin (8)
2. Remove all four PRO Containers (4) from individual
packaging and poly bags
3. Remove all four PRO Lid (1), from cardboard insert
before discarding packaging
4. Insert back of container onto PRO Pole3.5 (C),
making sure it locks into place and container is secure
5. Repeat step 3 for the three remaining containers
6. Place PRO C-Tray (B) on PRO C-Base (A)
7. Fill Containers with desired dry product
8. Place all four lids on each corresponding container
9. Dispense as you please!
(1)
(2)
(3)
(4)
(5)
(8)
(6)
(7)
(D)
C I
LEANING NSTRUCTIONS
1. Gently disassemble all parts of unit as indicated below
2. Wash all parts in warm
3. Reassemble unit only after
soapy water (never use all parts are completely dry
abrasive sponge or cloth)
(see assembly instructions below)
PRO Container Disassembly
1) Carefully remove PRO Container (4) from PRO
C-Pole3.5 (C)
2) Remove PRO Lid (1) from top of Container
3) Loosen mini 1.5mm screw for handle (7) found
on side of PRO Handle (6) until handle is free
utilizing 1.5mm Allen Wrench (D) from top of
pole (Do Not Remove Screw)*
4) Gently remove PRO Handle from the Plastic Pin
(8) along with Name Tag (5) from front of
Container
5) Gently push Plastic Pin from front of Container
with thumb until there is enough space on the
back side to pull Plastic Pin out
6) Remove Plastic Pin from the back of the
Container, leaving 6WR PRO Silicon Paddle
Wheel (2) free-standing inside Container
7) Reach into Container and remove Paddle Wheel
by gently pulling upwards
8) Again reach into Container and remove Nozzle
(3) from the inside of Container
* IMPORTANT NOTE, PLEASE READ:
•
Make sure to use long side of Allen wrench to tighten screw. When
tightening screw, turn handle so screw hole is facing the bottom of
Container towards nozzle for easy access. 5mm Allen Wrench to be used
only to disassemble pole from base.
PRO Container Assembly
1) Place Nozzle (3) into bottom of PRO Container (4),
narrow part first so it catches on bottom of
Container and clicks into place
2) Place 6WR PRO Silicon Paddle Wheel (2) into
Container, making sure the holes of the paddle
wheel align with the container's holes
3) Insert Plastic Pin (8) through back of Container,
through the Paddle Wheel, until it securely fits
onto the back of the Container, with the Plastic Pin
coming out on the front side of the Container (make
sure back of Plastic Pin fits properly onto back of
Container)
4) If desired, place Name Tag (5) on front side of
Container through the Plastic Pin until it fits snuggly
to front of Container
5) Next, Insert PRO Handle (6) into Plastic Pin so the
holes from the Handle and Plastic Pin are aligned
6) Tighten mini 1.5 mm screw for handle (7) with 1.55
Allen Wrench (D) until Handle is secure, making sure
screw goes into Hinge as well*
7) Fill Container with desired dry product and
place PRO Lid (1) on Container
8) Carefully insert back of Container onto PRO Pole3.5
(C), making sure it locks into place and container is
secure
