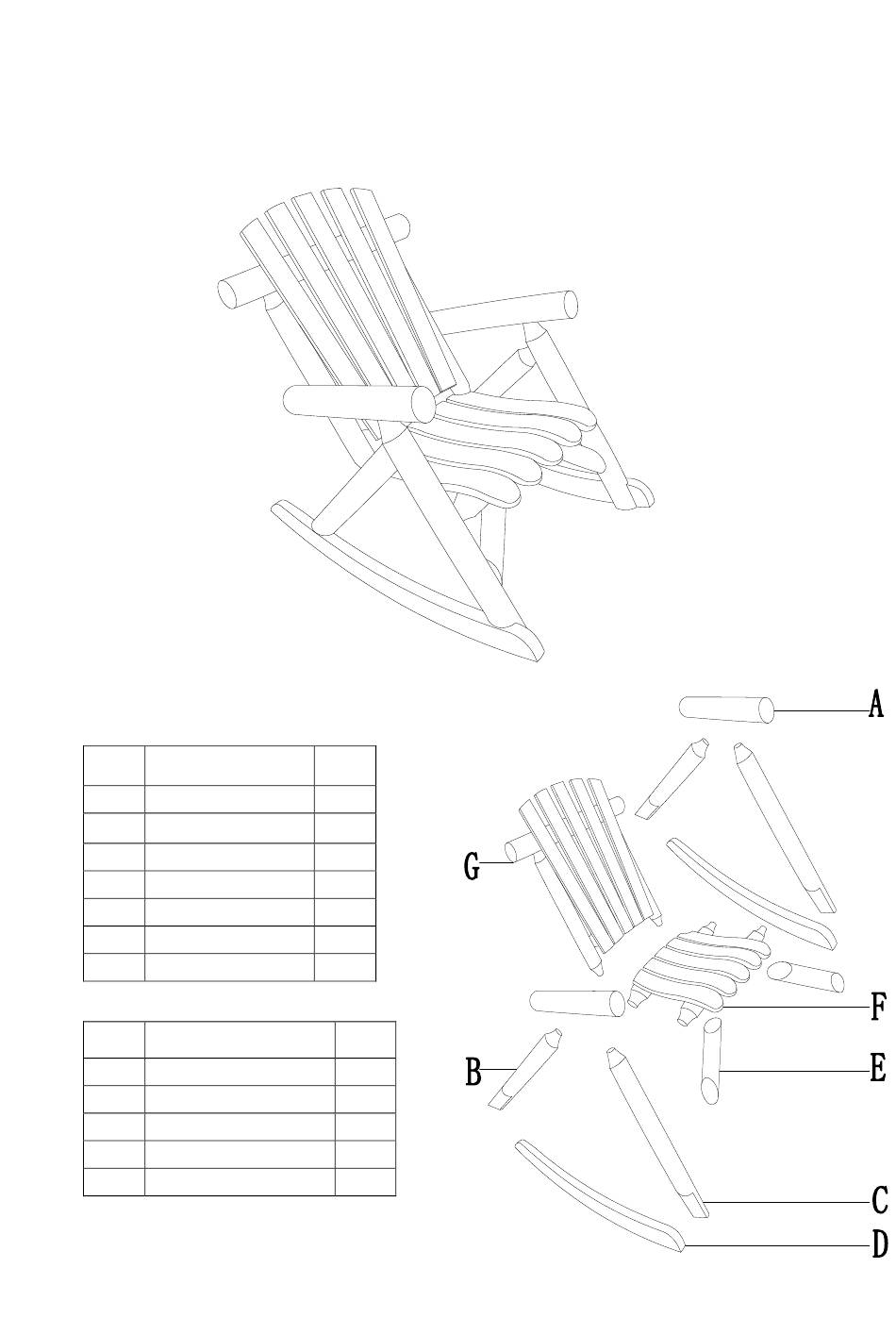

- Page 1 Assembly Instructions D-BS950SWD-RC Part List Part Description Qty. Armrest Back Leg Front Leg Rocking Bar Support Bar Seat Back Hardware Pack Part Description Qty. M8*90 Bolt M8 Nut M4*40 Screw M8*100 Screw M8 Washer...
- Page 2 Step 1: Attach Back Leg (B) to Front Leg (C) with Screw DD(see Fig.1). Step 2: Attach Rocking Bar (D) to Front Leg (C) and Back Leg (B) with Bolt AA, Washer GG and Nut CC (see Fig.2). Step 3: Attach Seat (F) to Front Leg (C) and Back Leg (B) with Screw DD(see Fig.3). Step 4: Attach Back (G) to Back Leg (B) with Screw DD(see Fig.4).
- Page 3 WARNING: Repeated assembly can weaken the locking ability of the screw/bolt/nut. Periodically check all bolted connections on your product to make sure they are tight and secure. Keep these instructions for future reference. Some parts may contain sharp edges. Wear protective gloves as necessary. Set it up on the level ground.
