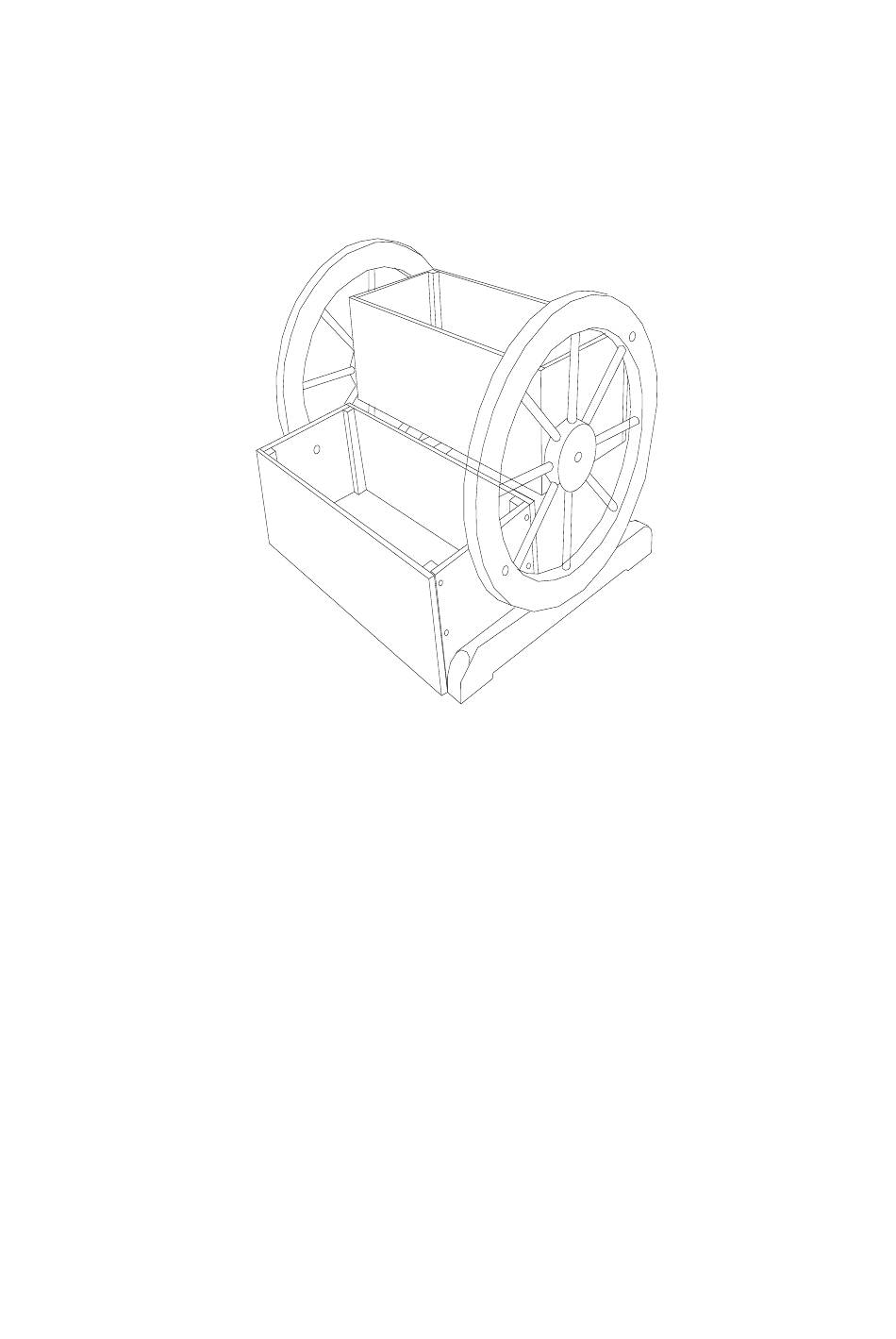

Assembly Instructions
Item# D-PS1047PWD
WARNING:
Repeated assembly can weaken the locking ability of the screw/bolt/nut. Periodically
check all bolted connections on your product to make sure they are tight and secure. Keep
these instructions for future reference.
Some parts may contain sharp edges. Wear protective gloves as necessary.
Set it up on the level ground.
Attention: There may have slots on the product, this is not inferior, it is nature of
the wood item, this is to allow the wood to naturally shrink and expand.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy D-PS1047PWD
Summary of Contents for Sunjoy D-PS1047PWD
- Page 1 Assembly Instructions Item# D-PS1047PWD WARNING: Repeated assembly can weaken the locking ability of the screw/bolt/nut. Periodically check all bolted connections on your product to make sure they are tight and secure. Keep these instructions for future reference. Some parts may contain sharp edges. Wear protective gloves as necessary.
- Page 2 Part# Dec. wooded wheel side panel front/rear panel bottom panel M3.5*25 screw screw M6*50 M6 flat washer M6 nut Step 1: Attach the side panel (B) and Step 2: Attach the bottom panel (D) to the front/rear panel (C) by screw (AA). side panel (B) by screw (AA).
- Page 3 Limited Warranty: This limited warranty is extended to the original purchaser and applies to defects in materials and workmanship of your item provided the item is maintained with care and used only for personal, residential purposes. The item is warranted to be free from defects in material or workmanship for a period of six (6) months.
