Warning
Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should
always be followed to reduce the risk of personal injury and damage to the product. Please read all instructions
before assembly and use.
Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
Important: For technical assistance on assembly or replacement parts, please call Sunjoy Industries at 1(866) 578-6569
from 8:00 AM EST to 8:00 PM PST
place your order or fax your parts replacement order form together with your purchase receipt to 1-740-283-3549 for
assistance.
Limited Warranty: The item is warranted to be free from defects in material or workmanship for a period of
Months. However, we don't reimburse for transportation or delivery costs, or compensate the individual or any outside
party for assembling or disassembling the product. This limited warranty is extended to the original purchaser and
applies to defects in materials and workmanship of your item, provided the item is maintained with care and used only
for personal residential purposes.
May 2016 (生产日期)

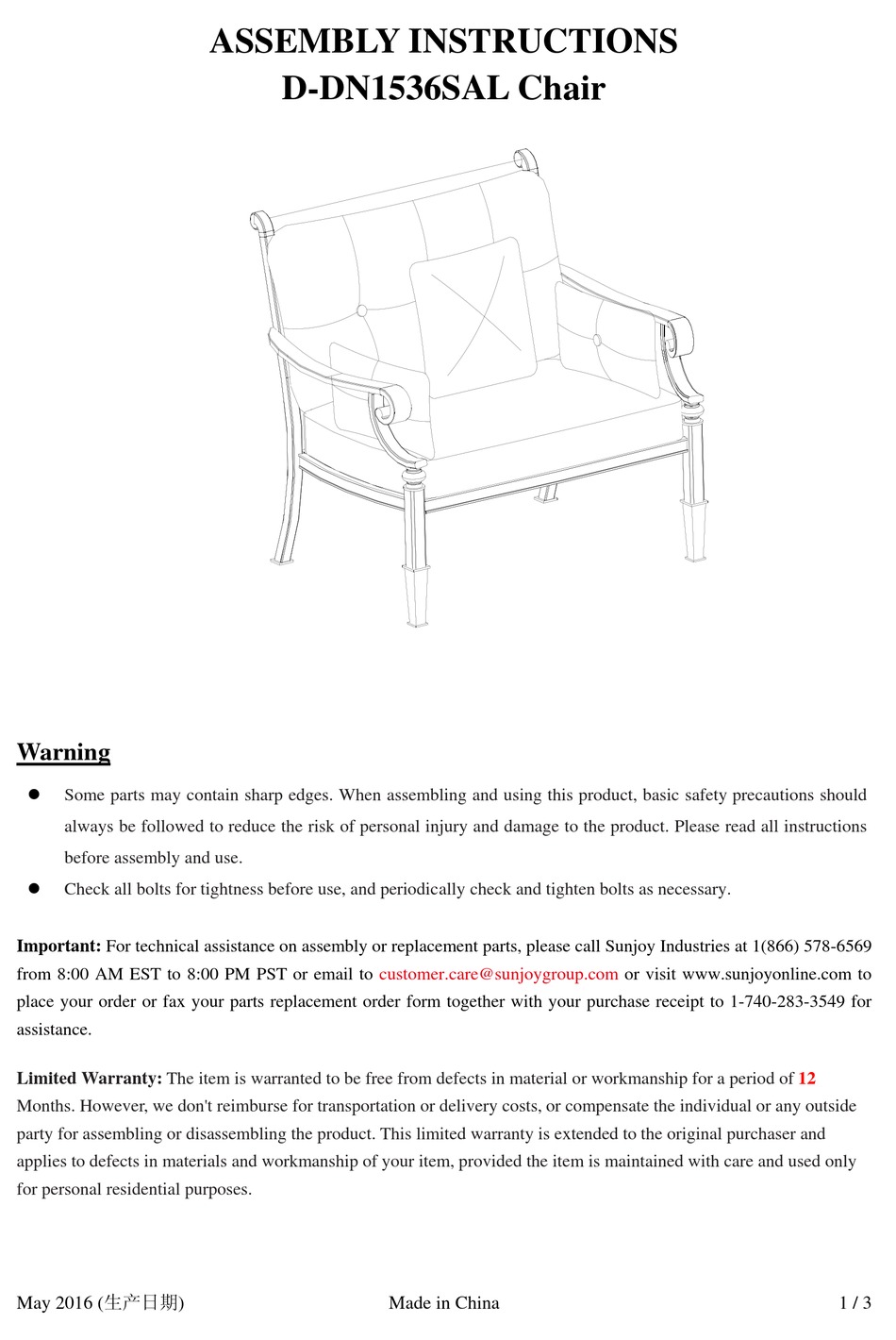

ASSEMBLY INSTRUCTIONS
D-DN1536SAL Chair
or email to
customer.care@sunjoygroup.com
Made in China
or visit www.sunjoyonline.com to
12
1 / 3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy D-DN1536SAL
Summary of Contents for Sunjoy D-DN1536SAL
- Page 1 Check all bolts for tightness before use, and periodically check and tighten bolts as necessary. Important: For technical assistance on assembly or replacement parts, please call Sunjoy Industries at 1(866) 578-6569 from 8:00 AM EST to 8:00 PM PST or email to customer.care@sunjoygroup.com...
-
Page 2: Assembly Steps
Parts List Part# Description Chair back Armrest (right) Armrest (left) Seat panel Seat cushion Back cushion Lumbar Throw pillow Bolt M6x20 Bolt M6x35 Spring washer M6 Flat washer M6 Wrench M6 Foot pad (preassembled) ASSEMBLY STEPS Step 1. Attach Seat panel (C) and Armrest (B1/B2) together with Bolt (BB), Spring washer (CC) and Flat washer (DD). - Page 3 Step 2. Attach Chair back (C) and Armrest (B1/B2) together with Bolt (AA). Fasten all the bolts at this step. Step 3. Place Seat cushion (D) and Back cushion (E) on the assembled chair and lock the loop and hook. Place Lumbar (G) and Throw pillow (F) on respectively.
- Page 4 Check all bolts for tightness before use, and periodically check and tighten bolts as necessary. Important: For technical assistance on assembly or replacement parts, please call Sunjoy Industries at 1(866) 578-6569 from 8:00 AM EST to 8:00 PM PST or email to customer.care@sunjoygroup.com...
- Page 5 Parts List Part# Description Ottoman leg Seat panel Cushion Bolt M6x35 Spring washer M6 Flat washer M6 Bolt M6x20 Wrench M6 Foot pad (preassembled) ASSEMBLY STEPS Step 1 Attach Seat panel (B) and Ottoman leg (A) together with Bolt (AA), Spring washer (BB) and Flat washer (CC).
