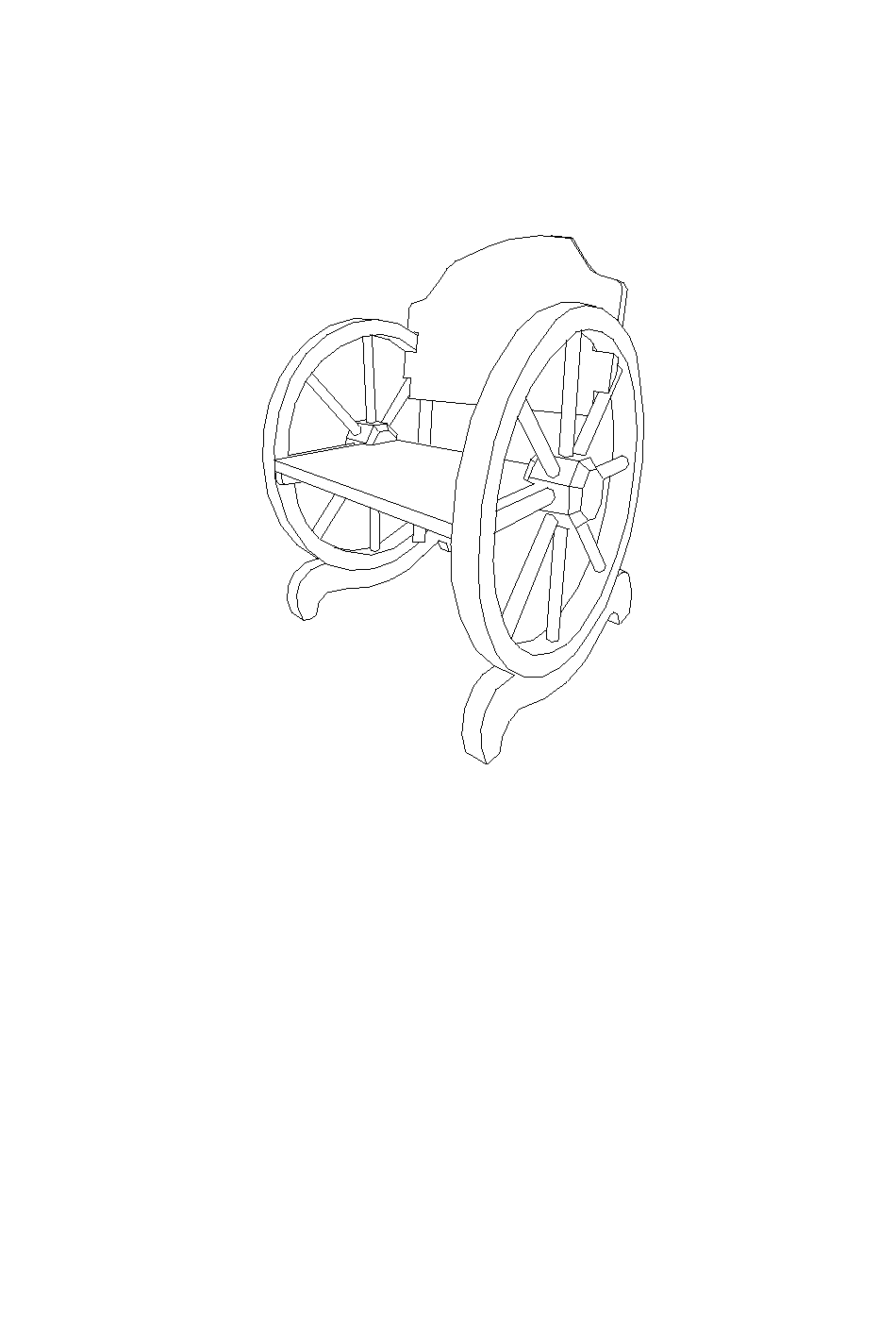

Assembly Instructions
D-DNC489PWD
WARNING:
Repeated assembly can weaken the locking ability of the screw/bolt/nut. Periodically
check all bolted connections on your product to make sure they are tight and secure. Keep
these instructions for future reference.
Some parts may contain sharp edges. Wear protective gloves as necessary.
Set it up on the level ground.
Attention: There may have slots on the product, this is not inferior, it is nature of the
wood item, this is to allow the wood to naturally shrink and expand.
Advertisement
Table of Contents
Related Manuals for Sunjoy D-DNC489PWD
Summary of Contents for Sunjoy D-DNC489PWD
- Page 1 Assembly Instructions D-DNC489PWD WARNING: Repeated assembly can weaken the locking ability of the screw/bolt/nut. Periodically check all bolted connections on your product to make sure they are tight and secure. Keep these instructions for future reference. Some parts may contain sharp edges. Wear protective gloves as necessary.
- Page 2 Part# Description Back Wheel support Seat Bolt M8*75 Flat washer M8 Nut M8 Bolt M8*105 Step 1: Attach wheel support (B) and back (A) by using Bolt (AA), flat washer (BB) and nut (CC). Then lock them tightly as showed in the picture.
- Page 3 Now the chair is ready to use. Limited Warranty: This limited warranty is extended to the original purchaser and applies to defects in materials and workmanship of your item provided the item is maintained with care and used only for personal, residential purposes.
