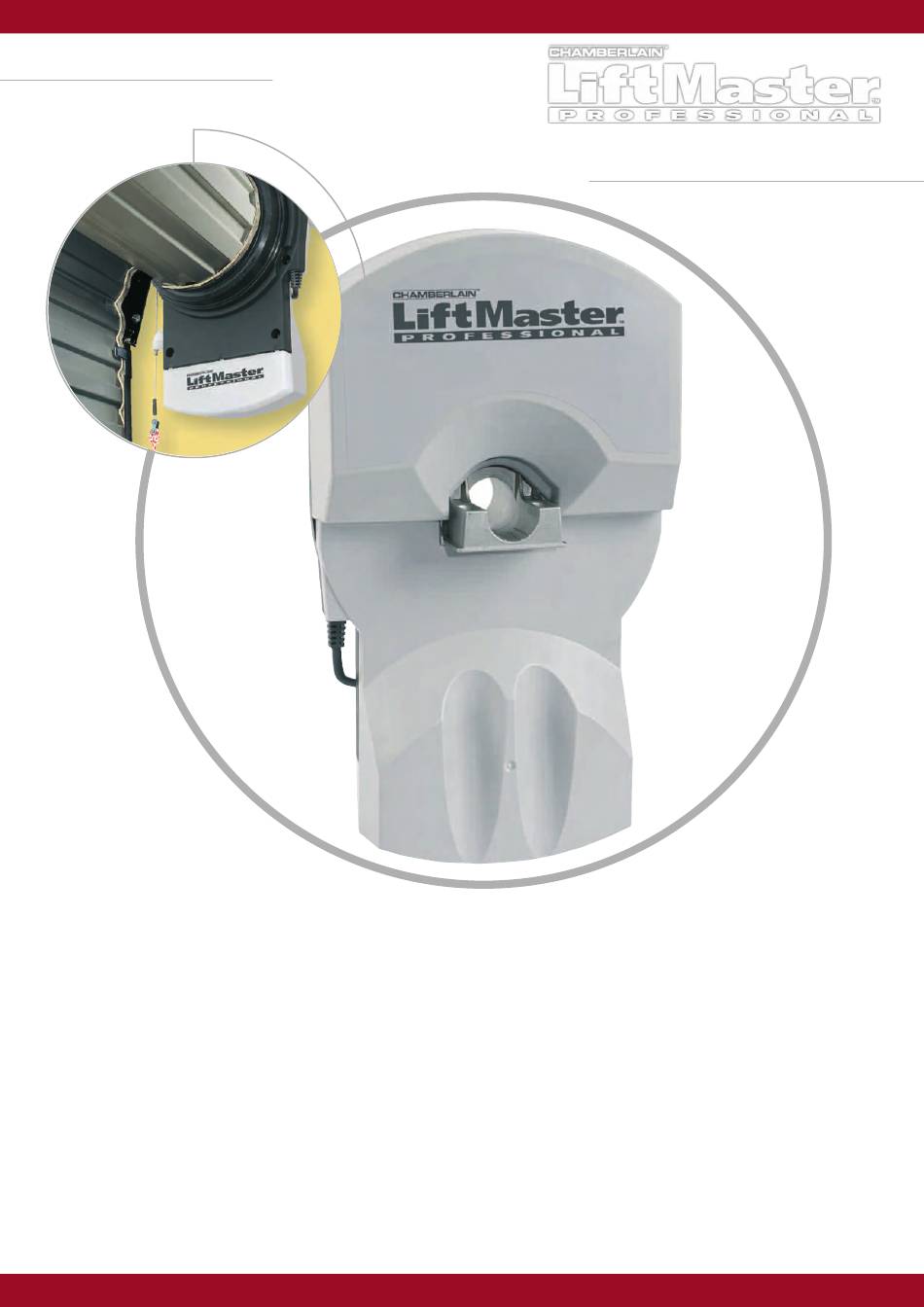

RDO800-UK
For
residential
commercial use
Features:
• For single and double car garage doors
• Soft-start and soft-stop function
• Electronic limit switch programming
• Automatic force adjustment
• Safety system constantly monitors force, door reverses immediately
if obstructed
• Meets all current safety standards
• High-security rolling code eliminates code scanning
• Light goes on automatically and switches off after 2 1/2 minutes
• Battery backup
• Slim design to save side room
and
light
Rolling Door Operator
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Chamberlain LiftMaster Professional RDO800 Series
Summary of Contents for Chamberlain LiftMaster Professional RDO800 Series
- Page 1 RDO800-UK Rolling Door Operator residential light commercial use Features: • For single and double car garage doors • Soft-start and soft-stop function • Electronic limit switch programming • Automatic force adjustment • Safety system constantly monitors force, door reverses immediately if obstructed •...
- Page 2 For residential and light commercial use Packaging contents 94335E • Operator with power cord • 3-channel remote control (2x) • 2-channel wirelesss wall control • Stop bracket collar • Clamp bracket 128LM • Bracket plate • Installation material • Release handle and cord •...
- Page 3 Installation and operating instructions for rolling door opener Model RDO800-series Chamberlain GmbH Alfred-Nobel-Strasse 4 66793 Saarwellingen Germany TEL: +49 (0) 6838/907-250 FAX: +49 (0) 6838/907-179 www.liftmaster.com...
-
Page 4: Carton Inventory
Start by Reading These Important Safety Instructions WARNING: Failure to comply with the following instructions may result in serious personal injury or property damage. • Read these instructions carefully and follow ALL instructions carefully • The garage door opener is designed and tested to offer reasonable safe service provided it is installed and operated in strict accordance with the instructions in this manual. -
Page 5: Door Requirements
Door Requirements The maximum allowable door height is 4.5m, maximum allowable curtain area is 12.0m² (door height in metres multiplied by the width in metres) and maximum allowable door weight is 100kg. The Protector System™ (Safety Beams) must be installed if the force at the edge of the closing door force exceeds 400N (40kgf). - Page 6 Prepare Opener Set Opener Position (Left or Right hand) For left hand side installations For right hand side installations the wire jumper should be removed. the wire jumper should be in place (factory installed). Attaching the Extension Poles (if required) 1.
-
Page 7: Installation Steps
Installation steps FOR RIGHT HAND INSTALLATIONS (REFER SECTION 5, page 3) 1. Ensure that the opener position jumper (wire connector) is in place (refer section 5, page 3). 2. Place the opener in manual release mode (refer section 5, page 3). 3. -
Page 8: Pinning The Door
Attach the Release Handle and Cord • Thread one end of the rope through the hole in the top of the Release cable red handle so “NOTICE” reads right side up as shown. Secure with an overhand knot at least 25mm from the end of the rope to prevent slipping. -
Page 9: Setting The Limits
Program your Opener & Remote Please note your remote controls and wall plate have already been programmed into your operator. Activate the opener only when door is in full view, free of obstruction and properly adjusted. No one should enter or leave garage while door is in motion. Do not allow children to operate push button(s) or remote(s). -
Page 10: Setting The Force
Setting the Force The force, as measured on the closing edge of the door, should not exceed 400N (40kgf). If the closing force is measured to more than 400N, the Protector System must be installed. See section 14. The force setting regulates the amount of power required to open and close the door. -
Page 11: Special Features
Special Features 1.Motion Detecting Control Panel Connect white/red wire to the red quick connect terminal and the white wire to the white quick connect terminal. 2.The Protector System™ (Safety Beams) Connect both white wires to the white quick connect terminal and both white/black wires to the grey quick 180 sec. -
Page 12: Troubleshooting
Troubleshooting 1. The opener doesn't operate from either the green start button or the remote controls: • Does the opener have electric power? Plug a lamp into the outlet. If it doesn't light, check the fuse box. • Have you disabled all door locks? Review installation instruction warnings on page 1. •... -
Page 13: Operation Of Your Opener
Operating Frequency: 433.92MHz • The green start button SPECIAL NOTE: Chamberlain strongly recommends that the Hold the button down until door starts to move. protector system be installed on all garage door openers. • The Wall Control, Outside Keylock or Keyless Entry System (if you have installed any of these accessories). - Page 14 All technical file information for the operator and its accessories is held at The Chamberlain Group and defective and does not cover the costs or risks of transportation will be made available at the request of the authorities should the need arise.
