1. Introduction

1.1 Product design
The Profinet Card allows the soft starter to connect to an Ethernet network and be
controlled or monitored using an Ethernet communication model.
Familiarity with Ethernet protocols and networks is required to operate the device
successfully. For difficulties using this device with third party products, including
PLCs, scanners and commissioning tools, contact the relevant supplier.

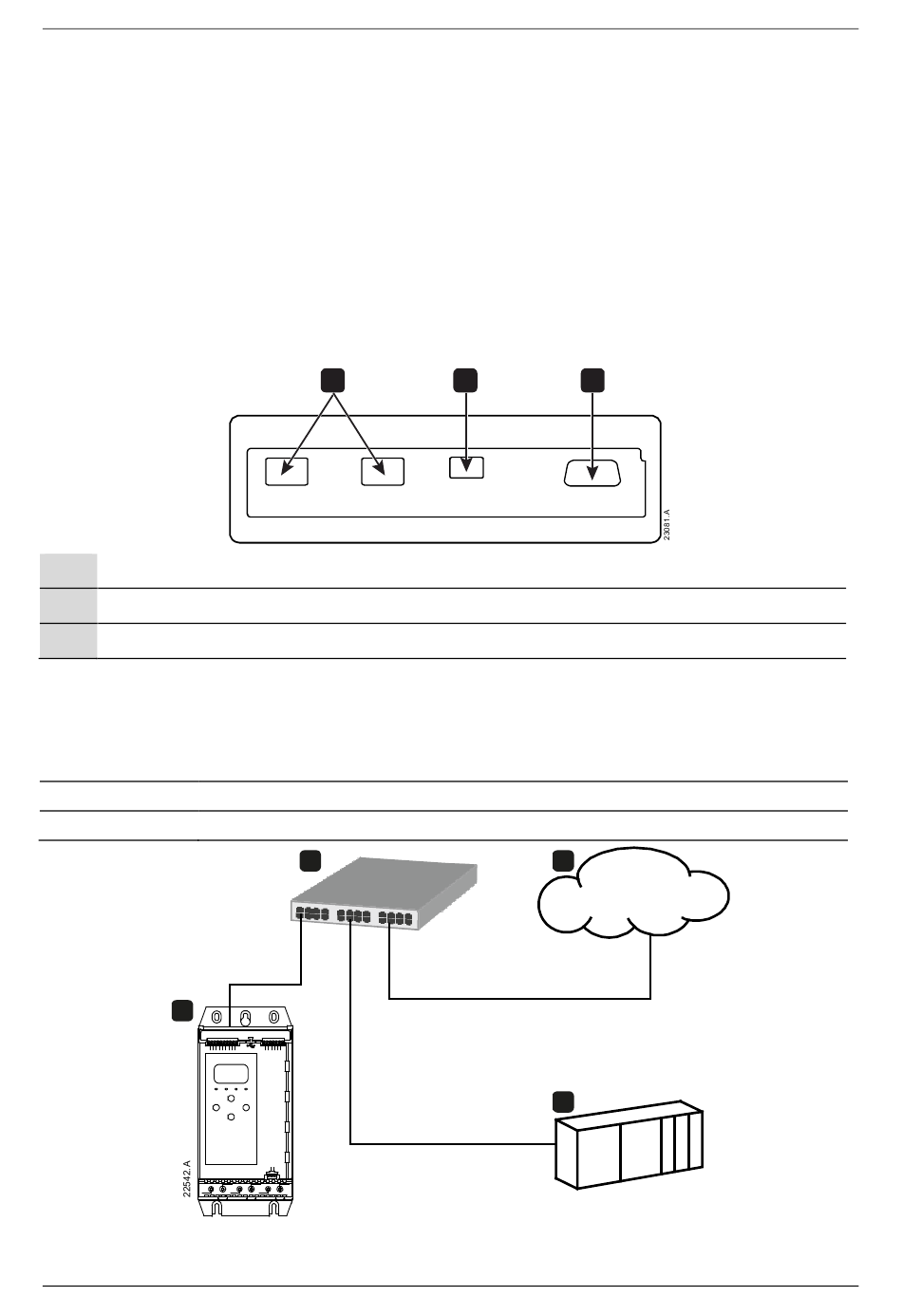

1.2 Connections
2 x RJ45 ethernet ports, supporting line, star, ring and loop network topologies
1
2 pin connector for ground fault CT (selected models)
2
DB9 connector for optional remote keypad
3
1.3 Communication protocols
The Profinet Card supports the following protocols:
Profinet Industrial ethernet via Profinet
MQTT Message Queue Telemetry Transport
OPC UA Open Platform Communications Unified Architecture
1
Profinet Card (710-16502-00C)
1 2
2
INSTRUCTIONS
3
3
4
3
