MOTORIZED TREADMILL
Turbo 772

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Turbo 772 and is the answer not in the manual?

Questions and answers

Related Manuals for JKEXER Turbo 772

Summary of Contents for JKEXER Turbo 772

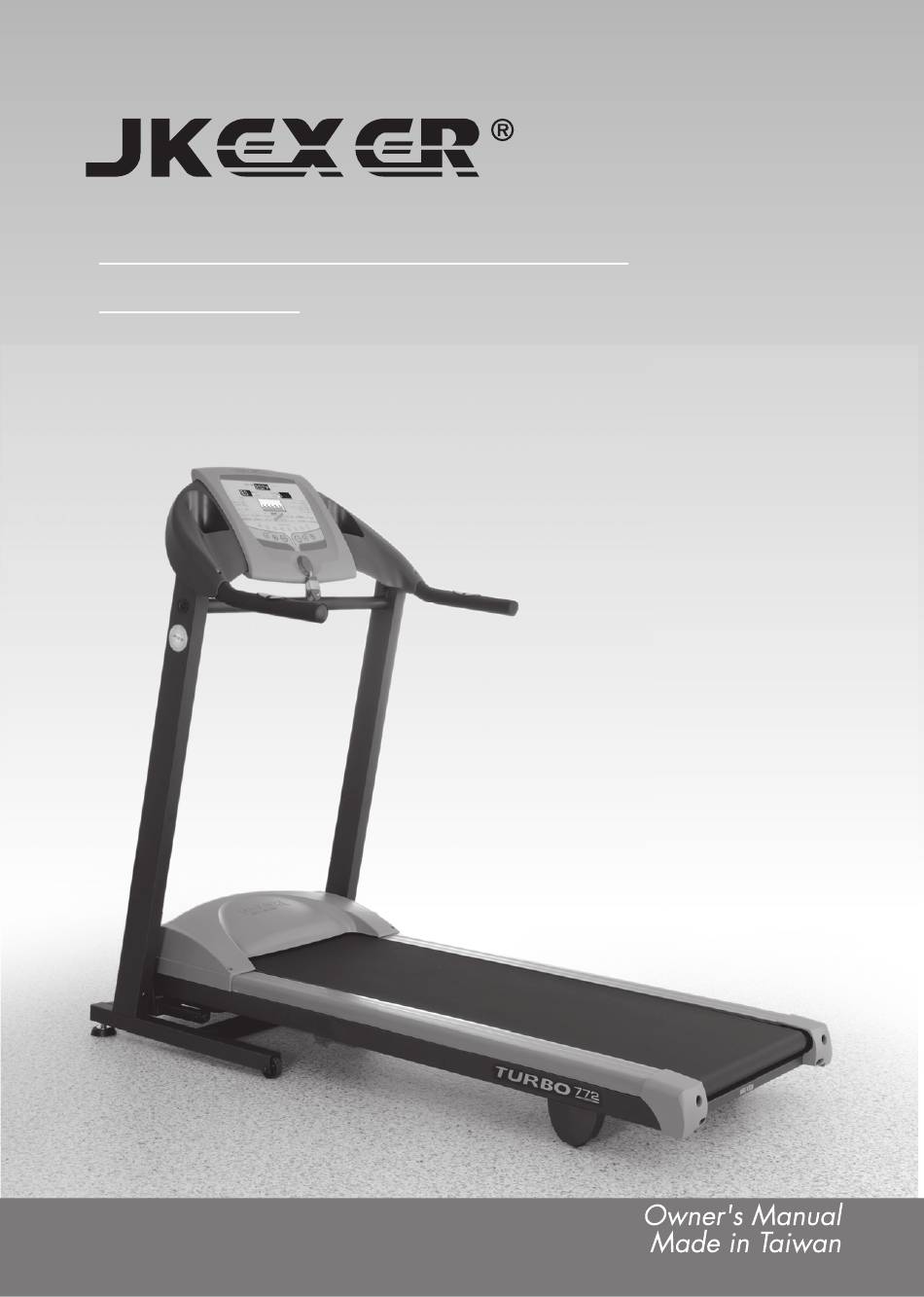

  • Page 1 MOTORIZED TREADMILL Turbo 772...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..... . P . 1 ELECTRICAL GROUNDING INSTRUCTIONS ....P . 2 CAUTION: BEFORE AND AFTER RUNNING ON THE TREADMILL .

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Please read the following basic precautions prior to use of the treadmill: * Never operate the treadmill with the air openings blocked. Keep air openings free of lint, hair, and the like. WARNING * This treadmill requires a dedicated circuit as 110V/220V 15/10AMP separately that is not shared by any other electrical appliances .

  • Page 4: Electrical Grounding Instructions

    * Do not walk or jog barefoot or without shoes . * Do not plug into the same outlet with any * Do not walk or jog in loose shoes or slippers . other electrical appliance while using this Athletic shoes are always recommended treadmill .

  • Page 5: Caution: Before And After Running On The Treadmill

    CAUTION: BEFORE AND AFTER RUNNING ON THE TREADMILL Before Running: 1. Read the manual first for familiarization of the computer and other important features. 2. Before starting the treadmill, always stand on two side rails on both sides (not on the running belt) as shown on drawing.
  • Page 6 What to lubricate? Do not lubricate with other than our approved lubricant. Your treadmill comes with one 30ml tube of silicone. For further lubrication, you may order from distributor for our 200ml silicone: • 200ml silicone in one bottle with 35cm applicator •...

  • Page 7: Assembly Parts List

    ASSEMBLY PARTS LIST 1. MAIN FRAME ....................1 2. FRONT POST ....................2 3. COMPUTER ...................... 1 4. CROSS BAR ..................... 1 5. POWER CABLE ....................1 A. BOLT & WASHER ..................2+2 B. BOLT ......................... 2 C. BOLT & WASHER ..................8+8 D.

  • Page 8: Assembly Instructions

    Step 1. Please note there are 2 Front Posts (2), right and left. The right post is with 2 FRONT POST cables at the bottom and 3 cables at the top. And the left post is with only 1 cable at the top.
  • Page 9 Step 3. Use Bolt + Washer (C) to fix 2 Front Posts FRONT POST (2) to the Main Frame (1). Do not tighten yet. MAIN FRAME BOLT & WASHER (C) PHOTO (4-2) PHOTO (4-1) COMPUTER COMPUTER RIGHT HANDLEBAR LEFT Step 4. 4-1.

  • Page 10: Positioned For Operation

    Step 5 SCREW (D) BOLT & WASHER (C) Use Bolt + Washer (C) to tighten the Computer (3) on the Front Post (2) from under side, and use Screw (D) to tighten it from upper side. Then tight all the bolts ( A + B + C ). FRONT POST Step 6.

  • Page 11: Treadmill Operation

    TREADMILL OPERATION CAUTION: Before beginning a workout session make sure the safety key is properly placed onto the computer console and the safety clip is securely attached to an article of your clothing . Always start the treadmill while standing on the side rails but not on the running belt . Allow the treadmill to reach a speed of at lease 1 .0 KPH before walking on the running belt .
  • Page 12 For Target Program (Time, Distance, Calories) Press MODE button to choose target program for countdown exercise. Target Time Program: Press MODE to choose target time, default setting 32:00 flashes, then press INCLINE SPEED ) button to set desired workout time 10~99 minutes, press START button to start running.
  • Page 13 COMPUTER INFORMATION 1. Distance: 0 ~ 99.9km 2. Incline: 0 ~ 12% Level: L1~ L3 3. Calories: 0 ~ 999KCAL 4. Time: 0 ~ 99.59 (Default setting 32:00) 5. Pulse: 40 ~ 200 BPM 6. Speed: 0.8 ~ 16kph 7. Dot Matrix: 8 x 16 for speed & incline In quick start and target modes, accumulated laps show at the center, and circle of lap shows around Dot Matrix.
  • Page 14 Following are detailed profile in different program( P1、P2、P3、P4) SPEED LEVEL 1 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE Interval 1 4.0 KPH 4.0 KPH 5.0 KPH 5.0 KPH Interval 2 5.0 KPH 7.0 KPH 11.0 KPH 5.0 KPH Interval 3 7.0 KPH 11.0 KPH 15.0 KPH...
  • Page 15 Following are detailed profile in different program( P5、P6、P7、P8) SPEED LEVEL 1 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE Interval 1 4.0 KPH 4.0 KPH 4.0 KPH 4.0 KPH Interval 2 4.0 KPH 4.0 KPH 4.0 KPH 4.0 KPH Interval 3 4.0 KPH 4.0 KPH 4.0 KPH...
  • Page 16 Following are detailed profile in different program( P9、P10、P11、P12) NCLINE LEVEL 1 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE Interval 1 4.0 KPH 4.0 KPH 5.0 KPH 5.0 KPH Interval 2 5.0 KPH 7.0 KPH 11.0 KPH 5.0 KPH Interval 3 7.0 KPH 11.0 KPH 15.0 KPH...

  • Page 17: Master Power Switch Location

    MASTER POWER SWITCH LOCATION To complete shut off power to the treadmill, turn off master power switch and unplug from outlet . COMPUTER INSTRUCTIONS (A) SAFETY KEY Safety Key is for the operation and emergency stop. Before beginning a workout session ensure safety key is securely attached to an article of your clothing.

  • Page 18: Error Message & Trouble Shooting

    DISTANCE: Count up; Accumulates total working distance from 0 to 99.9KM or MILES. Count down; Counts the preset working distance (1-20km) backwards to 0 to stop running. PULSE: It shows your heart beat when holding sensor plates on two handlebars. INCLINE: Display desired incline from 0 –...

  • Page 19: Asa Operation

    ASA OPERATION There is an ASA system (Adjustable Shock Absorbing system) installed on the right side of main frame. By turning the knob, user can change shock intensity from soft (1) (decrease 60%) to Firm (5) (decrease 20%). Do not adjust it when some one is running on the machine.

  • Page 20: Aligning The Running Belt

    ALIGNING THE RUNNING BELT Ensure the running belt is centered on your treadmill at all times . FIGURE A Running style and Non-level surface are two instances which may cause the belt to drift off center . Minor adjustments to the two bolts at the rear of the treadmill are necessary when the belt has drifted off center .

  • Page 21: Cleaning

    CLEANING Firstly, make sure the treadmill is off and unplugged from the electrical outlet . To remove dust, use a small vacuum nozzle to carefully vacuum around all visible components . To remove film or dust, use a slightly damp rag with a mild cleaning agent sprayed onto the rag only . Be careful not to immerse any treadmill component with any liquids .

  • Page 22: Exploded Drawing

    Exploded Drawing...

  • Page 23: Parts List

    Parts List DESCRIPTION DESCRIPTION DESCRIPTION MAIN FRAME ADJUST TIP (Ø40) SPRING WASHER (1/4") BOTTOM STAND CAP (38 x 38) WASHER (M6 x 13) SIDE FRAME ( R ) CAP (25.4 x 50.8) BOLT (M6 x 45) SIDE FRAME ( L ) CAP (25.4 x 25.4) BOLT (M6 x 25) RUNNING DECK...
  • Page 24 2016.01.07...
