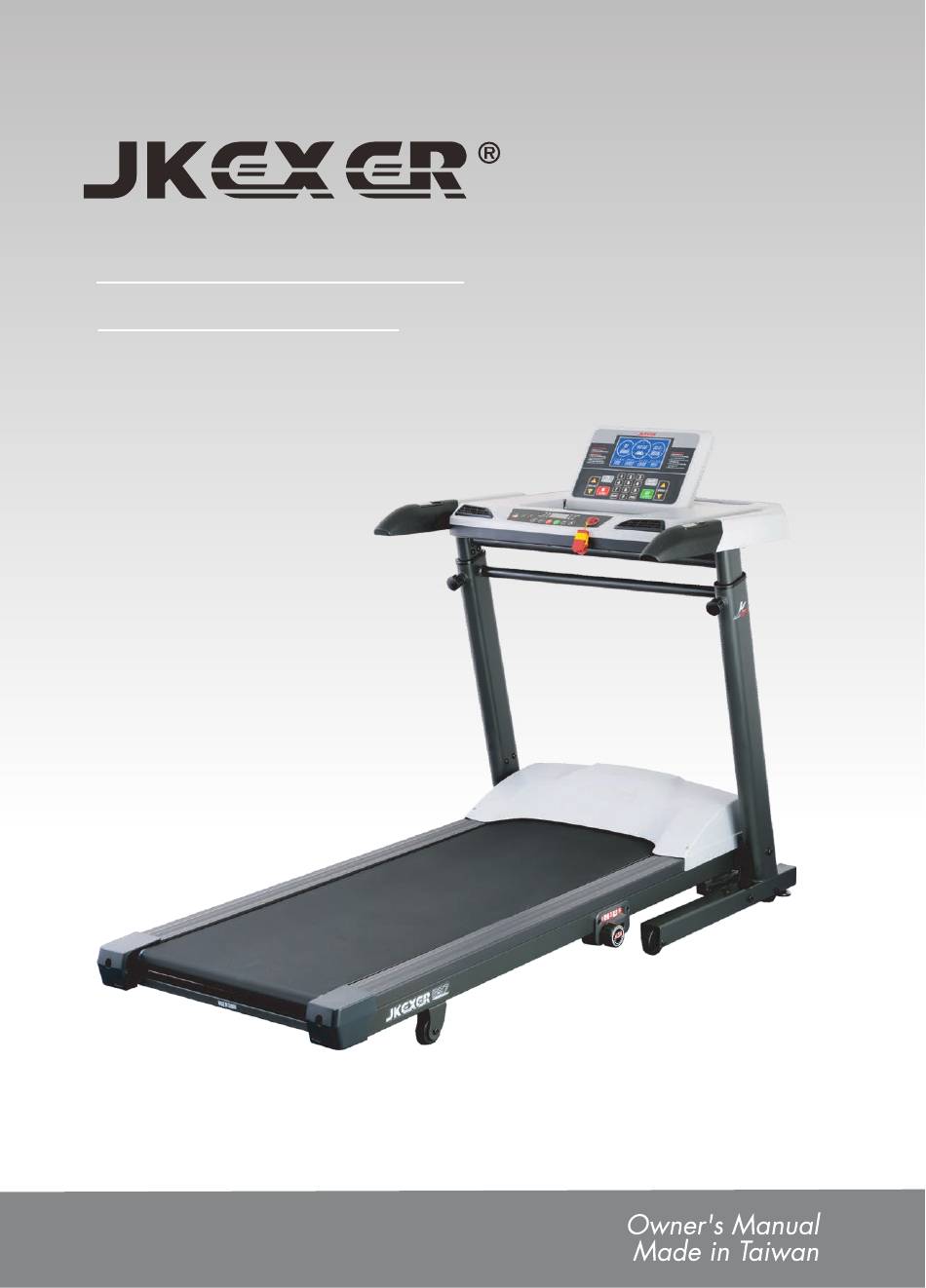

  • Page 1 Desk Treadmill AeroWork 897...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..... . P . 1 ELECTRICAL GROUNDING INSTRUCTIONS ....P . 2 CAUTION: BEFORE AND AFTER RUNNING ON THE TREADMILL .

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Please read the following basic precautions prior to use of the treadmill: * Never operat e the treadmill with the air openings bloc ed. Keep air openings free of lint, hair, and the like. WARNING * This treadmill requires a dedicated circuit as 110V/220V 15/10AMP separately that is not shared by any other electrical appliances .

  • Page 4: Electrical Grounding Instructions

    * Do not walk or jog barefoot or without shoes . * Do not plug into the same outlet with any * Do not walk or jog in loose shoes or slippers . other electrical appliance while using this Athletic shoes are always recommended treadmill .

  • Page 5: Caution: Before And After Running On The Treadmill

    CAUTION: BEFORE AND AFTER RUNNING ON THE TREADMILL Before Running: 1. Read the manual first for familiarization of the computer and other important features. 2. Before starting the treadmill, always stand on two side rails on both sides (not on the running belt) as shown on drawing.
  • Page 6 What to lubricate? Do not lubricate with other than our approved lubricant. Your treadmill comes with one 30ml tube of silicone. For further lubrication, you may order from distributor for our 200ml silicone: • 200ml silicone in one bottle with 35cm applicator •...

  • Page 7: Assembly Parts List

    ASSEMBLY PARTS LIST D D D D ....................1 1. MAIN FRAME A. KNOB ......................... 4 ......................... B. PIN ........................ C. TOOL ..................... D. SAFETY KEY ................... 1 E. POWER CABLE...

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Step 1. Fold the front post up Step 2 Use Knob (A) to fix both sides of bottom frame. Knob (A) Step 3 Fold the handlebar and desktop down. Step 4. Use Knob (A) to fix both handlebars to the top of front post.

  • Page 9: Positioned For Operation

    Step 5. Fold the frame up then use Pin (B) to fix air shock at the bottom of frame. Pin (B) STEP 6: Place Safety Key on the console. STEP 7: Plug in the power cable for operation. POSITIONED FOR OPERATION There are balancers at the front bottom .
  • Page 10 Walking MODE Flip down master computer to become a desktop and use secondary control panel to walk at max. 6 kph. Desktop can be moved close to your body for you to work on desktop while walking. And for safety cocern, incline is not adjustable.

  • Page 11: Treadmill Operation

    TREADMILL OPERATION CAUTION: Before beginning a workout session, make sure the safety key is properly placed onto the computer console and the safety clip is securely attached to an article of your clothing. Always start the treadmill while standing on the side rails instead of the running belt. Allow the treadmill to reach a speed of at least 1.0 KPH before walking on the running belt.
  • Page 12 REMARKS: HRC 1 (SPEED ADJUSTMENT) OPERATION 1. Wearing a transmitter or holding two hands on the pulse plates, in 30 seconds after pressing START button, computer will detect user's pulse and show it on the computer for further operation. 2. If computer could not detect user's pulse in 30 seconds, machine will stop and figure on the Pulse display will flash 3 times.

  • Page 13: Master Power Switch Location

    6th. Press to confirm all 12 ranges are set. Default setting time 30 flashes. 7th. Press SPEED or INCLINE or digital button 0 ~ 9 to set desired workout time. 8th. Press to confirm then press to start running. U1 & U2 are for setting two running profiles that you prefer. After finishing setting of two User programs, you may follow below to operate: 1st.

  • Page 14: Profile For Programs

    PROFILES FOR PROGRAMS P 1 ~ P 4 PROGRAM for SPEED LEVEL 1 INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED 2.0 KPH 2.0 KPH 3.0 KPH 3.0 KPH Interval 1 4.0 KPH 6.0 KPH 3.0 KPH 3.0 KPH Interval 2 6.0 KPH 8.0 KPH 5.0 KPH...
  • Page 15 P 5 ~ P 8 PROGRAM FOR INCLINE LEVEL 1 INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED 4.0 KPH 4.0 KPH 4.0 KPH 4.0 KPH Interval 1 4.0 KPH 4.0 KPH 4.0 KPH 4.0 KPH Interval 2 4.0 KPH 4.0 KPH 4.0 KPH 4.0 KPH...
  • Page 16 P9 ~ P12 PROGRAM FOR SPEED & INCLINE LEVEL 1 INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED 2.0 KPH 2.0 KPH 3.0 KPH 3.0 KPH Interval 1 4.0 KPH 6.0 KPH 3.0 KPH 3.0 KPH Interval 2 6.0 KPH 8.0 KPH 5.0 KPH 4.0 KPH...

  • Page 17: Master Computer Function Description

    MASTER COMPUTER FUNCTION DESCRIPTION 1. INCLINE: 0 ~ 12%. 8 x 12 Dot Matrix will show circle of running and incline data. 2. TIME: 00:00 ~ 99.59. Default setting: 30 minutes. Trees will flash in running. 3. SPEED: 0.8 ~ 18 KPH. 8 x 12 Dot Matrix will show lap for 400m and speed data. 4.

  • Page 18: Secondary Control Panel Function Description

    2) For quick incline adjustment, press figure then press INCLINE button Press 5 then press INCLINE, incline is adjusted to 5%. 3) For quick selection of program, press figure then press ENTER MANUAL: Press 0 then press ENTER P1: Press 1 then press ENTER P12: Press 1 &...

  • Page 19: Secondary Control Panel Operation

    SECONDARY CONTROL PANEL OPERATION Once master computer is flipped down, LED on secondary control panel will light up for operation. to begin exercise, TIME LED flashes 1. Insert Safety Key, Time LED lights up. Press as Scan mode to display TIME, SPEED, DISTANCE, CARLOIES, PULSE and STEP at 6 seconds interval.

  • Page 20: Error Message & Trouble Shooting

    WARNING: For safety concern, suggest do not operate tablet or laptop when you are running or walking at high speed. TRANSPORTATION: This machine is equipped with 4 transport wheels. For reference, tilting the frame in one side to screw in 2 balancers, then do the same to screw in another 2 balancers in another side. Then fold the frame up, the unit can be easily moved.

  • Page 21: How To Fold Up For Storage

    HOW TO FOLD UP FOR STORAGE Please refer to the photo. Firstly, move desktop to the very front of the machine, then lift the rear end of the frame to the computer till you hear a "CLICK" sound from cylinder then push and pull it to make sure the frame is fixed.

  • Page 22: Aligning The Running Belt

    ALIGNING THE RUNNING BELT Ensure the running belt is centered on your treadmill at all times . FIGURE A Running style and Non-level surface are two instances which may cause the belt to drift off center . Minor adjustments to the two bolts at the rear of the treadmill are necessary when the belt has drifted off center .

  • Page 23: Cleaning

    CLEANING Firstly, make sure the treadmill is off and unplugged from the electrical outlet . To remove dust, use a small vacuum nozzle to carefully vacuum around all visible components . To remove film or dust, use a slightly damp rag with a mild cleaning agent sprayed onto the rag only . Be careful not to immerse any treadmill component with any liquids .

  • Page 24: Exploded Drawing

    897 Exploded Drawing...

  • Page 25: Parts List

    Parts List DESCRIPTION DESCRIPTION DESCRIPTION MAIN FRAME PLASTIC BUSH (Ø14 x Ø24 x 27.5L) BOLT (M10 x 15L) GEAR (POM) L-PLATE (BOTTOM) BOTTOM FRAME SCREW (5/32" x 12.7L) FIXING CLIP (UCR-0.5) SUPPORT FRAME WASHER (Ø8 x Ø19 x 1.5t) SCREW (M4 x 6L) FRONT FRAME CABLE FIXER ARMREST FRAME (L)
  • Page 26 2016.02.26...
