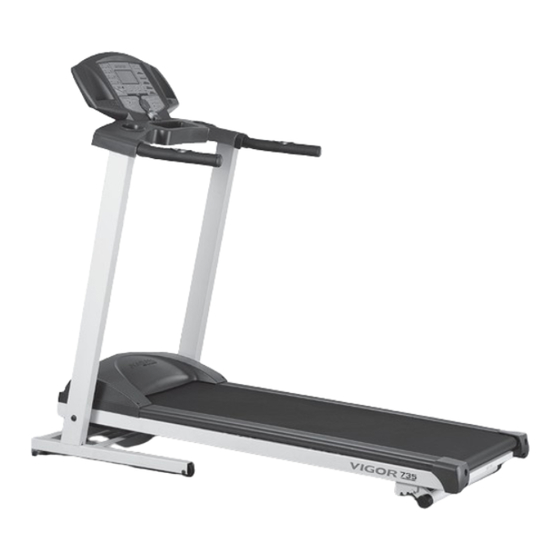

MOTORIZED TREADMILL
VIGOR 735

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIGOR 735 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JKEXER VIGOR 735

Summary of Contents for JKEXER VIGOR 735

  • Page 1 MOTORIZED TREADMILL VIGOR 735...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..........P .

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Please read the following basic precautions prior to use of the treadmill: * Never operate the treadmill with the air openings blocked. Keep air openings free of lint, hair, and the like. WARNING * This treadmill requires a dedicated circuit as 110V/220V 15/10AMP separately that is not shared by any other electrical appliances .

  • Page 4: Electrical Grounding Instructions

    * Do not walk or jog barefoot or without shoes . * Do not plug into the same outlet with any * Do not walk or jog in loose shoes or slippers . other electrical appliance while using this Athletic shoes are always recommended treadmill .

  • Page 5: Caution: Before And After Running On The Treadmill

    CAUTION: BEFORE AND AFTER RUNNING ON THE TREADMILL Before Running: 1. Read the manual first for familiarization of the computer and other important features. 2. Before starting the treadmill, always stand on two side rails on both sides (not on the running belt) as shown on drawing.
  • Page 6 What to lubricate? Do not lubricate with other than our approved lubricant. Your treadmill comes with one 30ml tube of silicone. For further lubrication, you may order from distributor for our 200ml silicone: • 200ml silicone in one bottle with 35cm applicator •...

  • Page 7: Assembly Parts List

    ASSEMBLY PARTS LIST MAIN FRAME ........BOTTOM STAND .

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1: Make the frame lying as photo shown. Use bolt (A) to x Bottom Stand (2) to the bottom end of two front posts. Then x 2 Balancers (6) underneath the bottom frame. Step 2: Use Bolt, Nut (B) to fix one end of Air shock (3) (thicker part) at the bottom of Main Frame (1) and fix another end (thinner part) at the Bottom Stand (2) as photo shown .
  • Page 9 STEP 4: Pull out the cable from the right front post and connect it with the Main Frame (1) cable. Ensure proper connection and push it back inside the post. STEP 5: Place the accessory holder (4) on the handle bar and secure it using the Sc (C).

  • Page 10: Positioned For Operation

    Step 6: Plug in the Power Cable (5) for operation . POSITIONED FOR OPERATION There are balancers at the front bottom . Adjust these balancers to make sure main frame is stably positioned on the ground for exercise .

  • Page 11: Treadmill Operation

    TREADMILL OPERATION BASIC INFORMATION 1. When safety key is removed: There is no gure shown on LCD. 2. When safety key is positioned: It is in MANUAL mode, and all the functions are ready for manual operation. You may also press FAST or SLOW key to choose program mode from P1, P2, P3, P4, P5 HOW TO OPERATE POWER UP Press the Master Power Switch located at the front of the frame (see MASTER POWER SWITCH...

  • Page 12: Profiles For Programs

    PROFILES FOR PROGRAMS (1). P 1 ~ P 5 PROGRAM SPEED 14.1~16.0 KPH 14.1~16.0 KPH 12.1~14.0 KPH 12.1~14.0 KPH 10.1~12.0 KPH 10.1~12.0 KPH 8.1~10.0 KPH 8.1~10.0 KPH 6.1~8.0 KPH 6.1~8.0 KPH 4.1~6.0 KPH 4.1~6.0 KPH 2.1~4.0 KPH 2.1~4.0 KPH 0.8~2.0 KPH 0.8~2.0 KPH SPEED DOT MATRIX SPEED DOT MATRIX...

  • Page 13: Master Power Switch Location

    MASTER POWER SWITCH LOCATION To complete shut off power to the treadmill, turn off master power switch and unplug from outlet . COMPUTER INSTRUCTION (A) SAFETY KEY Safety Key is for the operation and emergency stop. Before beginning a workout session ensure safety key is securely attached to an article of your clothing.

  • Page 14: Error Message & Trouble Shooting

    ERROR MESSAGE & TROUBLE SHOOTING E1 (Error 1): When the machine starts but computer could not read the signal from sensor for 7 seconds, E1 will be shown on the computer. If any above trouble happens, please consult the distributor. SMELL If any smell comes out from motor, please rstly lubricate running board with silicone (Please refer to page: RUNNING BOARD MAINTENANCE), and see if the situation improves.

  • Page 15: How To Fold Up For Storage

    HOW TO FOLD UP FOR STORAGE Lift the rear end of the frame to the computer till you hear a "CLICK" sound from cylinder then push and pull it to make sure the frame is fixed . HOW TO FOLD DOWN FOR EXERCISE There is a safety pin on the air-shock .

  • Page 16: Aligning The Running Belt

    ALIGNING THE RUNNING BELT Ensure the running belt is centered on your treadmill at all times . FIGURE A Running style and Non-level surface are two instances which may cause the belt to drift off center . Minor adjustments to the two bolts at the rear of the treadmill are necessary when the belt has drifted off center .

  • Page 17: Cleaning

    CLEANING Firstly, make sure the treadmill is off and unplugged from the electrical outlet . To remove dust, use a small vacuum nozzle to carefully vacuum around all visible components . To remove film or dust, use a slightly damp rag with a mild cleaning agent sprayed onto the rag only . Be careful not to immerse any treadmill component with any liquids .

  • Page 18: Exploded Drawing

    Exploded Drawing...

  • Page 19: Parts List

    Parts List Description No Description No Description MAIN FRAME 34 RUBBER TIP 69 CABLE (90 mm / blue) BOTTOM STAND 35 PLASTIC BUSH 70 CABLE (60 mm / brown) FRONT POST (R) 36 CAP (25.4 x 50.8mm) 71 CABLE (600 mm / blue) FRONT POST (L) 37 T- SLEEVE 72 CABLE (600 mm / brown)
  • Page 20 Factory: JIH KAO ENTERPRISE CO., LTD...
