Summary of Contents for JKEXER CHEER 465

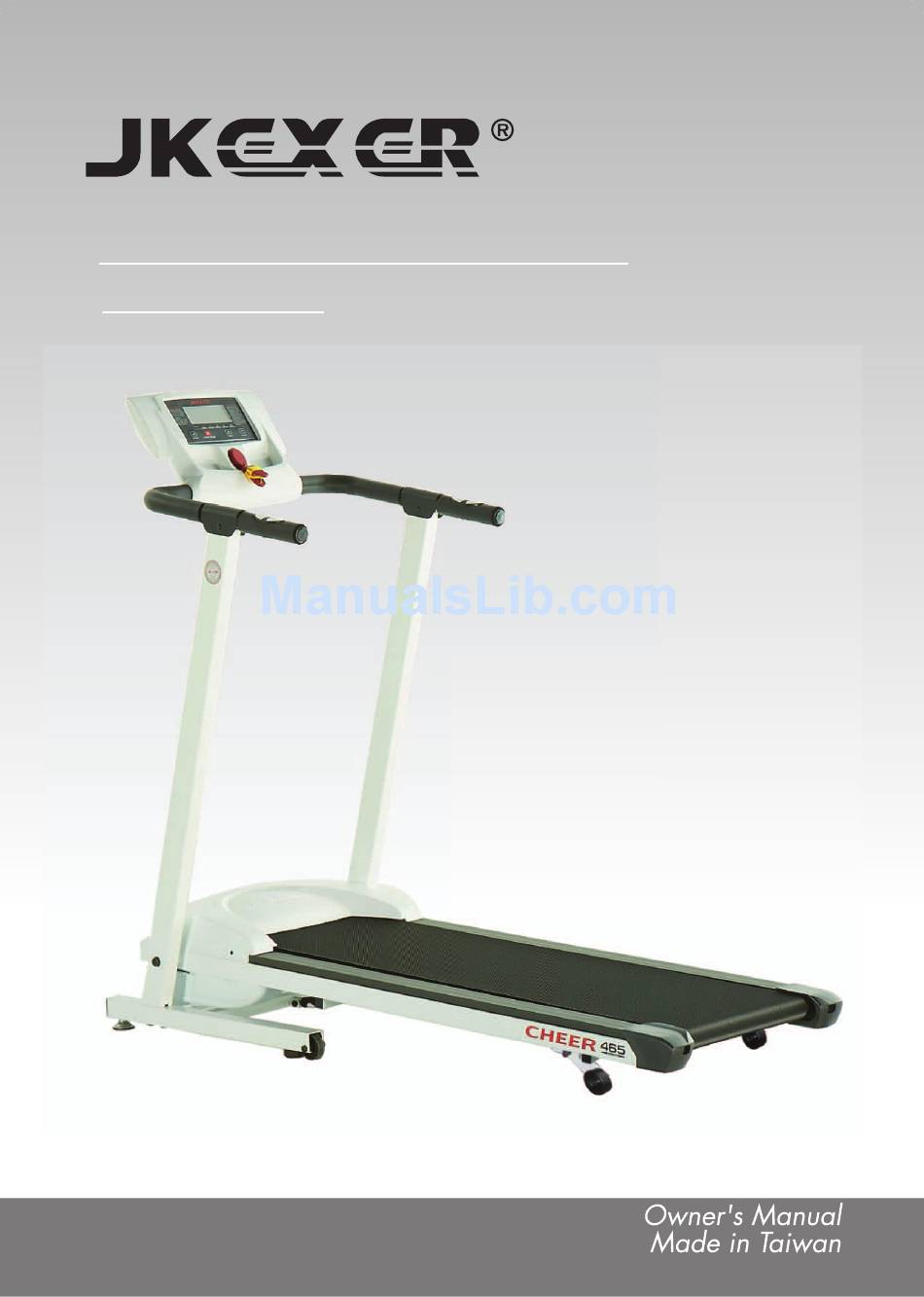

- Page 1 MOTORIZED TREADMILL CHEER 465...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..........P . -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read the following basic precautions prior to use of the treadmill: * Never operate the treadmill with the air openings blocked. Keep air openings free of lint, hair, and the like. WARNING * This treadmill requires a dedicated circuit as 110V/220V 15/10AMP separately that is not shared by any other electrical appliances . -
Page 4: Electrical Grounding Instructions
* Do not walk or jog barefoot or without shoes . * Do not plug into the same outlet with any * Do not walk or jog in loose shoes or slippers . other electrical appliance while using this Athletic shoes are always recommended treadmill . -
Page 5: Caution : Before And After Running On The Treadmill
CAUTION: BEFORE AND AFTER RUNNING ON THE TREADMILL Before Running: 1. Read the manual first for familiarization of the computer and other important features. 2. Before starting the treadmill, always stand on two side rails on both sides (not on the running belt) as shown on drawing. - Page 6 What to lubricate? Do not lubricate with other than our approved lubricant. Your treadmill comes with one 30ml tube of silicone. For further lubrication, you may order from distributor for our 200ml silicone: • 200ml silicone in one bottle with 35cm applicator •...
-
Page 7: Assembly Parts List
ASSEMBLY PARTS LIST 1. MAIN FRAME ........1 BOTTOM FRAME . -
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS Step 1: Make the Main Frame (1) lying as photo shown. Use Bolt (A) to fix Bottom Frame (2) onto the bottom end of two front posts. Step 2: Use Bolt, Nut (B) to fix one end of Air Shock (8) (thicker part) at the bottom of Main Frame (1) and fix another end (thinner part) at the bottom frame as photo shown. -
Page 9: Positioning For Operation
Step 5: Step 6: Use Knob and Washer Use Screw (E) to fix Computer (4) onto the (7) to fix Computer bracket as shown. Then tighten all above- Bracket (4) on the Handlebar (3), then mentioned bolts. connect two wires provided from Handlebar (3) and Computer (4). -
Page 10: Treadmill Operation
TREADMILL OPERATION BASIC INFORMATION 1. When safety key is removed: There is no figure shown on LCD. 2. When safety key is positioned: It is in MANUAL mode, and all the functions are ready for manual operation. You may also Press SPEED FAST / SLOW key to choose program mode from P1, P2, P3, P4, P5, When pressing SPEED FAST key, the sequence is MN ->... -
Page 11: Profiles For Programs
PROFILES FOR PROGRAMS (1). P 1 ~ P 5 PROGRAM SPEED 8.0~10 8.0~10 7.0~7.9 KPH 7.0~7.9 KPH 6.0~6.9 KPH 6.0~6.9 KPH 5.0~5.9 KPH 5.0~5.9 KPH 4.0~4.9 KPH 4.0~4.9 KPH 3.0~3.9 KPH 3.0~3.9 KPH 2.0~2.9 KPH 2.0~2.9 KPH 0.8~1.9 KPH 0.8~1.9 KPH SPEED DOT MATRIX SPEED DOT MATRIX 8.0~10... -
Page 12: Master Power Switch Location
MASTER POWER SWITCH LOCATION To complete shut off power to the treadmill, turn off master power switch and unplug from outlet. COMPUTER INSTRUCTIONS (A) SAFETY KEY Safety Key is for the operation and emergency stop. Before beginning a workout session ensure safety key is securely attached to an article of your clothing. -
Page 13: Error Message & Trouble Shooting
ERROR MESSAGE & TROUBLE SHOOTING E1 (Error 1): When the machine starts but Computer could not read the speed signal from sensor for 7 seconds, E1 will be shown on the computer. E5 (Error 5): If it’s over current in running, E5 will be shown. After turning on master power switch and the safety key is placed on the computer, one of Error message E2, E3, or E4 will be shown if the below symptom happens: E2 (Error 2):... -
Page 14: How To Fold Up For Storage
HOW TO FOLD UP FOR STORAGE Lift the rear end of the frame to the computer till you hear a "CLICK" sound from cylinder then push and pull it to make sure the frame is fixed. HOW TO FOLD DOWN FOR EXERCISE There is a safety pin on the air-shock . -
Page 15: Computer Angle Adjustment
COMPUTER ANGLE ADJUSTMENT Loosen the knob at the back side of computer and adjust the computer to a proper angle to get the best viewing for the runner then tighten the knob to fix it. ALIGNING THE RUNNING BELT Ensure the running belt is centered on your treadmill at all times . FIGURE A Running style and Non-level surface are two instances which may cause the belt to drift off center . -
Page 16: Adjust The Running Belt Tension
ADJUSTING THE RUNNING BELT TENSION Adjust belt tension if it begins to slip on the rollers. This is important as it increases Longevity of the treadmill's components. When adjusting belt tension, keep the belt as loose as possible!!! 1. Press the Master Power Switch (located at the front of the treadmill) to ON POSITION and ensure safety key is properly placed onto the computer console. -
Page 17: Storage
STORAGE Store your treadmill in a clean and dry environment. Ensure the master power switch Is off and unplugged from the electrical wall outlet. HOW TO WORK OUT SAFELY AND EFFICIENTLY? First of all, we strongly suggest you to check with your doctor before you start your walking program. Of course, if your have arthritis, anemia, low back pain, uncontrolled diabetes, or serious diseases of the lungs, kidneys, liver, or heart, you should see a doctor regularly anyway. -
Page 18: Exploded Drawing
Exploded Drawing... -
Page 19: Parts List
PARTS LIST DESCRIPTION NO. DESCRIPTION MAIN FRAME GROUND CABLE FRONT POST(L) CAP (20mm x 20mm) FRONT POST(R) CAP (20mm x 40mm) BOTTOM FRAME FRONT ROLLER HAND RAIL ADJUSTING TIP ( 60) Ø BOLT (M10 x 15L) FIXING CLIP CAP ( 38) Ø... - Page 20 2016.02.01...
