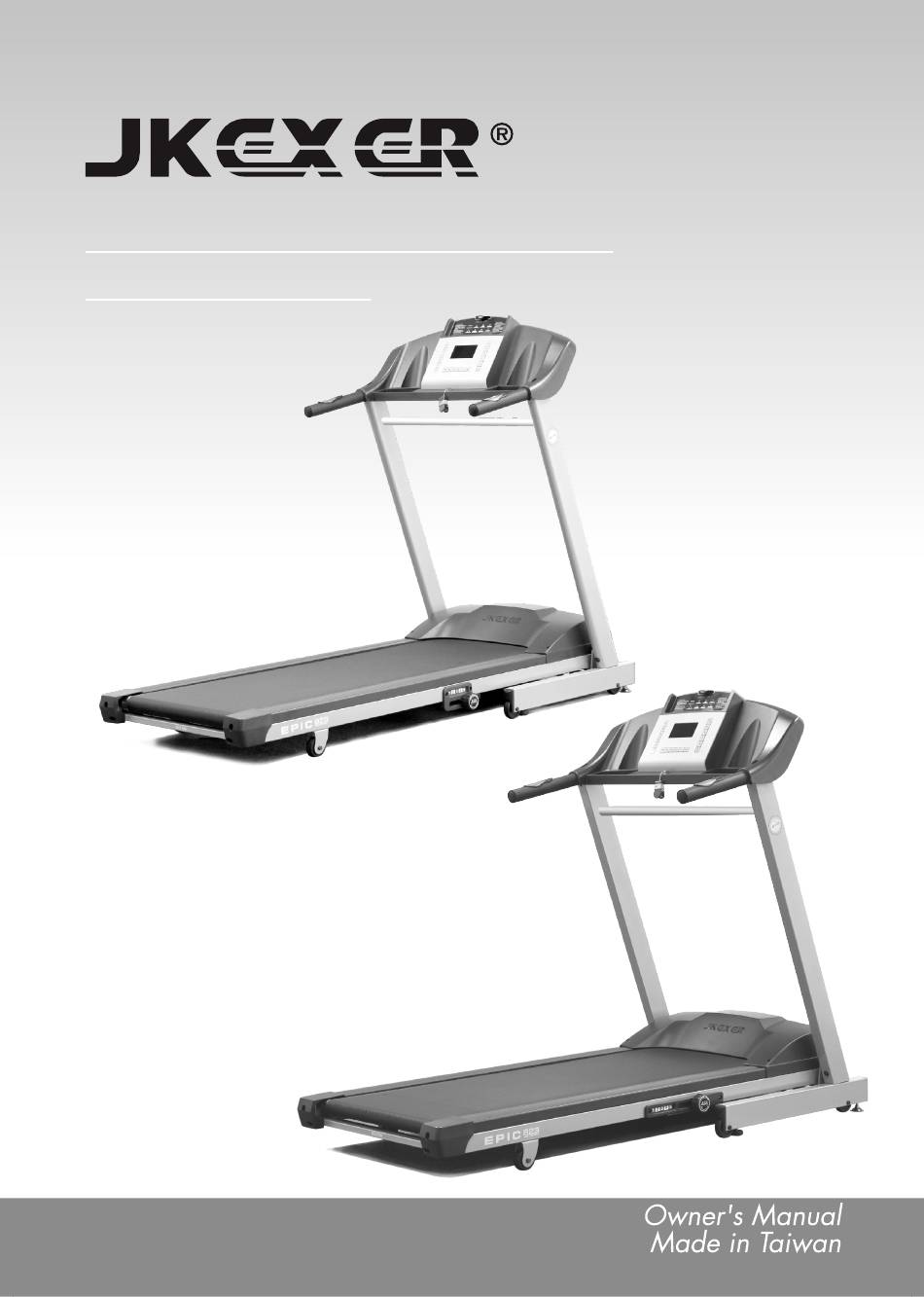

MOTORIZED TREADMILL
EPIC 823 / 825
825
823

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPIC 823 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JKEXER EPIC 823

Summary of Contents for JKEXER EPIC 823

  • Page 1 MOTORIZED TREADMILL EPIC 823 / 825...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ......P. 1 ELECTRICAL GROUNDING INSTRUCTIONS .

  • Page 3: Important Safety Instructions

    * While turning on the power, please stand beside the treadmill, not on the treadmill. * The weight limit is 136KGS (300LBS) for EPIC 823, 159KGS (350LBS) for EPIC 825. * Do not operate in a wet or moist condition.

  • Page 4: Electrical Grounding Instructions

    * Do not walk or jog barefoot or without shoes. * Do not plug into the same outlet with any * Do not walk or jog in loose shoes or slippers. other electrical appliance while using this Athletic shoes are always recommended treadmill.

  • Page 5: Caution: Before And After Running On The Treadmill

    CAUTION: BEFORE AND AFTER RUNNING ON THE TREADMILL Before Running: 1. Read the manual first for familiarization of the computer and other important features. 2. Before starting the treadmill, always stand on two side rails on both sides (not on the running belt) as shown on drawing.
  • Page 6 What to lubricate? Do not lubricate with other than our approved lubricant. Your treadmill comes with one 30ml tube of silicone. For further lubrication, you may order from distributor for our 200ml silicone: 200ml silicone in one bottle with 35cm applicator. 100% silicone, non-petroleum base, contains of no harmful solvents, non-toxic and nonflammable.

  • Page 7: Assembly Parts List

    ASSEMBLY PARTS LIST FOR EPIC 823 / 825 MAIN FRAME ......FRONT POST .

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Step 1. Please note there are 2 Front Posts (2) for right and left. The post for the right side is with cable inside. Well connect the cable from the bottom of right post to the cable from Main Frame (1), then insert this right post onto the U-bracket on the right side of Main Frame (1).
  • Page 9 Step 4. Mount Handlebar (4) at the top of two Front Posts (2), well connect the cable from right side of Handlebar to the cable from right Front Post. Step 5. Use Bolt & Washer (E) to fix Handlebar onto Front Posts. Step 6.

  • Page 10: Positioned For Operation

    Step 8. Plug in the power cable for operation . POSITIONED FOR OPERATION There are balancers at the front bottom. Adjust these balancers to make sure main frame is stably positioned on the ground for exercise. HOW TO OPERATE For quick start (manual) Press Start/Stop button to start running.
  • Page 11 3. Press Speed or Incline button to set age 13 ~ 70 years old. Preset maximum heartbeat will also appear. 4. Press Enter button, L1 flashes, then press Speed or Incline button to choose L1 ~ L3. Press Enter button ,default setting time 32:00 flashes, press Speed / or Incline button to set desired workout time from 10 ~ 99 minutes.

  • Page 12: Master Power Switch Location

    MASTER POWER SWITCH LOCATION To complete shut off power to the treadmill, turn off master power switch and unplug from outlet . PROFILES FOR PROGRAMS P 1 ~ P 7 PROGRAM SPEED & INCLINE (LEVEL 1) LEVEL 1 INCLINE SPEED INCLINE SPEED INCLINE SPEED...

  • Page 13: Computer Instructions

    COMPUTER INSTRUCTIONS (A) SAFETY KEY Safety Key is for the operation and emergency stop. Before beginning a workout session ensure safety key is securely attached to an article of your clothing. (B) FAST/SLOW BUTTON They are for adjusting Speed, choosing Program and Level . (C) START/STOP BUTTON It’s to start the machine and figures 5 to 0 will count down in the window before machine starts.

  • Page 14: Functions Display

    PULSE : It shows your heart beat when holding your hands on the sensor plates on two handlebars. SPEED : 0.8 to 18 KPH for EPIC 823 / 0.8 to 20KPH for EPIC 825 INCLINE : 0 ~ 12% PROGRAM : 1 ~ 7...

  • Page 15: Error Message & Trouble Shooting

    BODY TYPE: 1~5 Skinny Underweight Normal Overweight Extremely Overweight FAT % Normal 10~20% Overweight Male 20~25% Extremely Overweight Over25% Normal 15~25% Overweight Female 25~35% Extremely Overweight Over35% ERROR MESSAGE & TROUBLE SHOOTING E1 (ERROR 1): When the machine starts but computer could not read the signal from sensor for 7 seconds, E1 will be shown on the computer.

  • Page 16: How To Fold Up For Storage

    HOW TO FOLD UP FOR STORAGE Please refer to the photo. Lift the rear end of the frame to the computer till you hear a "CLICK" sound from cylinder then push and pull it to make sure the frame is fixed. HOW TO FOLD DOWN FOR EXERCISE There is a safety pin on the air-shock .

  • Page 17: Aligning The Running Belt

    ALIGNING THE RUNNING BELT Ensure the running belt is centered on your treadmill at all times FIGURE A Running style and Non-level surface are two instances which may cause the belt to drift off center. Minor adjustments to the two bolts at the rear of the treadmill are necessary when the belt has drifted off center (See Fig.

  • Page 18: Cleaning

    CLEANING Firstly, make sure the treadmill is off and unplugged from the electrical outlet. To remove dust, use a small vacuum nozzle to carefully vacuum around all visible components. To remove film or dust, use a slightly damp rag with a mild cleaning agent sprayed onto the rag only. Be careful not to immerse any treadmill component with any liquids.

  • Page 19: Exploded Drawing

    823 Exploded Drawing...

  • Page 20: Parts List

    Parts List DESCRIPTION DESCRIPTION DESCRIPTION MAIN FRAME E-CLIP (ETW-12) POWER SWITCH BOTTOM FRAME SPRING PIN (Ø4.5 x 22L) T-BUSHING (T023) SUPPORT FRAME SPRING (Ø14.5 x Ø1.5 x 13L) L-HOOK FRONT FRAME PLASTIC BUSH (Ø14 x Ø24 x 27.5L) WASHER (Ø10 x Ø32 x 2t) ARMREST FRAME GEAR (POM) BUSH (Ø20+10 x Ø8 x 7+3L)
  • Page 21 825 Exploded Drawing...
  • Page 22 Parts List DESCRIPTION DESCRIPTION DESCRIPTION MAIN FRAME SPRING PIN (Ø4.5 x 22L) L-HOOK BOTTOM FRAME SPRING (Ø14.5 x Ø1.5 x 13L) WASHER (Ø10 x Ø32 x 2t) PLASTIC BUSH (Ø14 x Ø24 x 27.5L) BUSH (Ø20+10 x Ø8 x 7+3L) IRON PLATE FRONT FRAME GEAR (POM)

  • Page 23: How To Maintain Your Motorized Treadmill

    WHEN AND HOW TO MAINTAIN YOUR MOTORIZED TREADMILL ? ITEM DAILY (Before Use) DAILY (After Use) WEEKLY MONTHLY 3 MONTHS 6 MONTHS Use dry cloth to Examine if the frame Use damp cloth to wipe and clear is stable for exercise. clean.
  • Page 24 20170222M...
