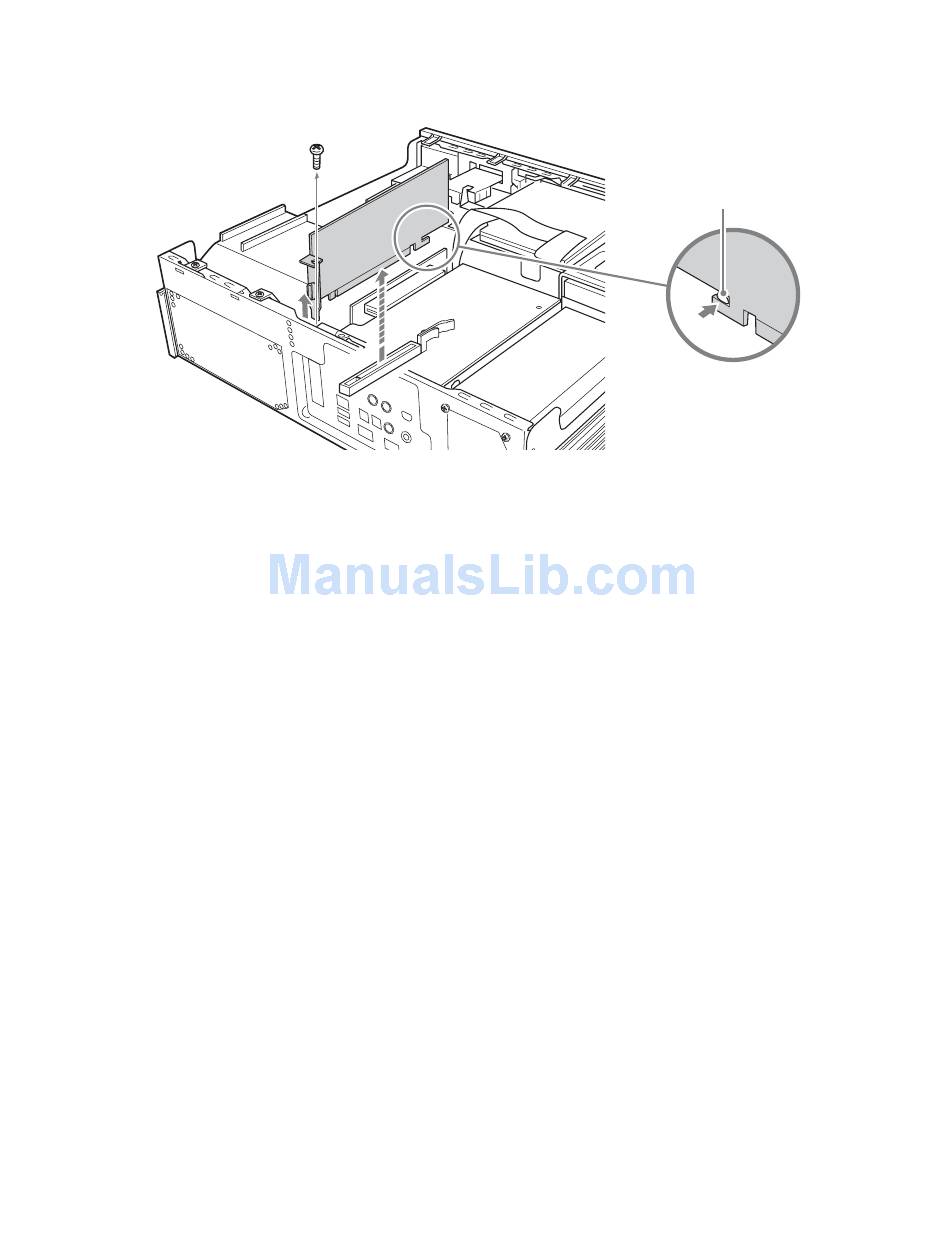

3 Remove the graphic card. Remove the cable and screw first and remove the
graphic card while pressing the latch.
4 Touch metal to discharge any static buildup in your body and then remove the
memory module from of the package.
5 Carefully install the memory module. (Please refer to the Install Notes listed
above.) If you have any problems please contact your Sony Technical Support
Representative. See VAIO Support Central.
•
•
•
•
•
•
VGX-XL2A Digital Living System
Remove screw
Match the memory module to the slot by paying attention to the
direction of the notch as shown in the illustration below.
Insert the memory module in the slot vertically until the clips come up
and secure it.
Install two memory modules as one set. There is no guarantee that it
will work if only one memory module is installed. Also, use two
memory modules of the same model name and same capacity and
install them in the same bank.
Please be careful not to catch your finger on the cables inside this
device and remove the cable when installing the memory.
The harness connector may be raised when installing the memory.
Check by pressing the harness connector to make sure there is no
gap.
Please be careful not to get cut on the parts or the circuit board inside
this device when installing the memory.
Press down
on latch
46
