Specifications
Operating System
Microsoft® Windows® XP Embedded or
Windows® XP Pro for Embedded Systems or
Windows® Embedded Standard 7
Processor
Intel® Atom™ Z530, 1.6GHz
Memory
1GB DDR2 533MHZ
Display
10.4" TFT LCD
1024 x 768
Resistive touchscreen
Optional: Outdoor-viewable screen
Storage
2GB to 16GB Internal Flash Module, 32GB to 64GB SSD
Stylus
Non-electronic tip
802.11 a, b, g, n wireless (mini PCIe), Bluetooth 2.0
Operating Conditions
Temperature
32°F - 104°F
Humidity
0% - 90% non-condensing
Multimedia
Optional: 3 Megapixel camera
Call 1.888.TANGENT
© 2010 Tangent Inc. All rights reserved. Prices and specifications valid in U.S. only and subject to change without notice. Product names are for identification purposes only
and may be trade names of their respective companies.
Thin Tablet 312
Thin Client
BASIC OPERATION GUIDE
INTRODUCTION

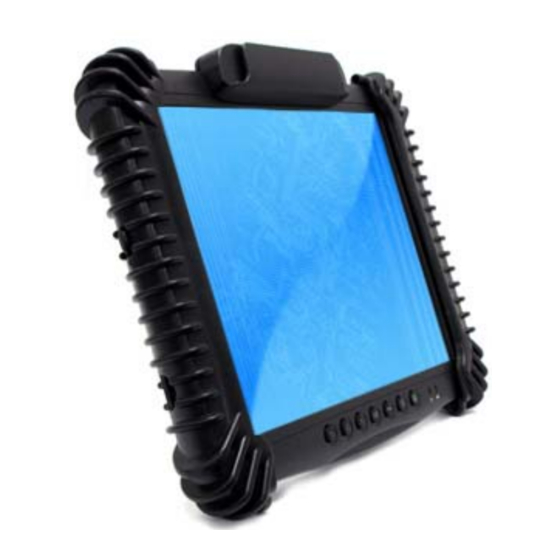

Thank you for acquiring the Thin Tablet 312. Featuring a slim yet robust
enclosure, the two-pound Thin Tablet 312 with a 10.4" TFT display is
powered by the Intel® Atom™ processor, offering optimal combinations
of performance and power savings. An external battery expansion op-
tion provides approximately 3-4 hours of additional battery operation for
up to six hours of mobile usage.
PACKAGE CONTENTS
• One Thin Tablet 312 with Internal Battery Pack (2200mAh), Stylus,
Grips and Screen Cover
• AC-DC Power Adapter with Power cord
• Basic Operation Guide
Battery
Internal (2S2P; 7.4V, 2200mAh) or (2S2P; 7.4V, 3760mAh)/
Optional: External (2S2P; 7.2V, 3900mAh)
Power
Input: 100 – 240VAC
Output: 12VDC@3A
Audio
1 x built-in speaker
I/O Ports
2 x USB 2.0 ports
1 x DC-in jack
Audio ports (line-in/mic, line-out/headset)
Accessories
Optional: Docking cradle with USB port, RJ45, power jack
Optional: Magnetic stripe reader
Optional: Barcode scanner
Compliance
FCC Class B, CE, C-Tick, RoHS compliant
Dimensions/Weight
10.3" W x 8.3" H x 0.8" D
Weight: 2.05 lb (excl. AC adapter, bumpers, secondary battery)
Limited Warranty
1-year parts & labor, return to depot
www.tangent.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tangent Thin Tablet 312
Summary of Contents for Tangent Thin Tablet 312
- Page 1 Optional: 3 Megapixel camera www.tangent.com Call 1.888.TANGENT © 2010 Tangent Inc. All rights reserved. Prices and specifications valid in U.S. only and subject to change without notice. Product names are for identification purposes only and may be trade names of their respective companies.
- Page 2 Report the problem to your Battery/Power LED device provider immediately. Wireless LED • Never attempt to disassemble the Thin Tablet 312, as this will Calibration void the warranty. Battery and Power Meter Wireless Network Settings...
- Page 3 Power Button to the left of the front bezel. The display will shipping. In the event that the calibration has been modified come on in a few seconds. To put the Thin Tablet 312 in or is unsatisfactory, the respective calibration routines (e.g., Standby mode, push and quickly release the Power Button.
- Page 4 Ethernet and USB ports to function. The battery packs on the Thin Tablet 312 may be recharged by connecting the AC- DC adapter directly to the DC-in port on the Thin Tablet 312 or through the DC-in port on the Desktop Cradle while the Thin Tablet 312 is docked to the Cradle.
