I/O Ports
The Medix M24T has a comprehensive set I/O ports. The following ports are loacted along the bottom
side of the unit.
Front
Bo om
A
B
C
D
E
F
A
Power bu on
F
USB 3.0 ports
B
G
Programmable bu ons
Ethernet ports (RJ45)
C
Speakers
H
Audio jack
D
DC-in
I
USB 2.0 ports
E
J
HDMI output
COM ports
Cleaning the Screen
•
A screen cleaning solu on that is alcohol-free and non-abrasive can be used to clean the touch screen.
•
Cleaning with a micro-fiber cloth is recommended.
•
Please spread the solu on onto the cloth and then clean the touch screen.
Cleaning the An microbial Enclosure
•
Use a so /non-abrasive cloth moistened with water to clean the enclosure.
•
If using a cleaner, an alcohol-free and oxide-free cleaning liquid is recommended.
•
To prevent scratching the an microbial coa ng, please wipe gently.
4
Back
G
H
I
J
C
Medix M24T
BASIC OPERATION GUIDE
INTRODUCTION

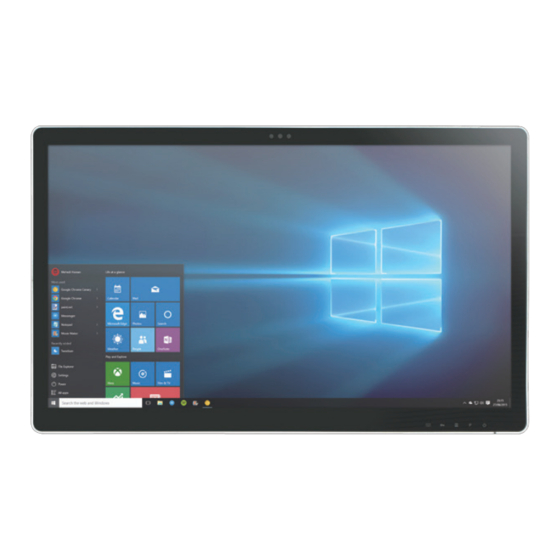

Thank you for acquiring Tangent's Medix M24T. With a 24-inch TFT display and powered by
the Intel® Core™ i processor, the Medix M24T offers optimal combinations of performance
and power saving. With fully-integrated point-of-care modules within an elegant,
space-saving design, This medical grade computer is the optimum solution to enhance
workflow and service.
Please take a few moments review the contents of this document to ensure that the setup
and startup proceed smoothly. Medix M24T is ready for use, out of the box, in its default
configuration when powered by the power source provided. The following documentation
offers guidance on the hardware elements and features of the computer.
Package Contents
•
Medix M24T Medical Grade Computer
•
AC-DC power adapter with power cord
•
Basic operation guide
Major Op ons
The Medix M24T has a number of optional modules. These include:
•
2 megapixel front camera
•
UPS ba ery
•
Desktop stand
DT524
