www.ti.com
User's Guide

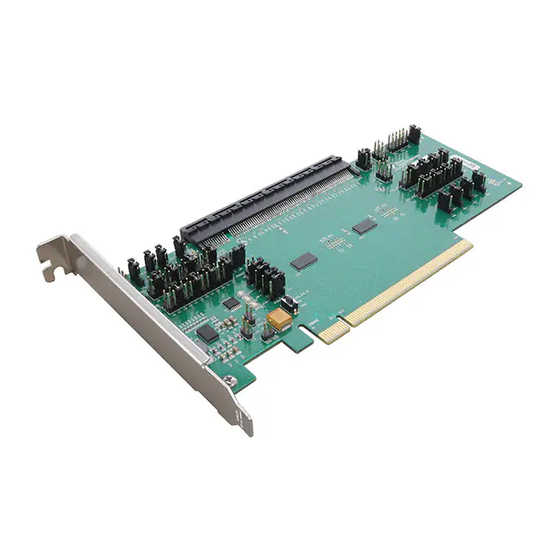

DS160PR810EVM-RSC Evaluation Module (EVM)
The DS160PR810EVM-RSC evaluation modules provides a complete high-bandwidth platform for evaluating the
signal conditioning features of the Texas Instruments DS160PR810 Octal-Channel PCI-Express 4.0 Linear
Redriver. This evaluation board can be used for standard compliance testing, performance evaluation, and initial
system prototyping.
1
Introduction.............................................................................................................................................................................2
1.1 Features.............................................................................................................................................................................
1.2
Applications........................................................................................................................................................................2
2 Description..............................................................................................................................................................................
2.1 DS160PR810 4-Level I/O Control Inputs...........................................................................................................................
2.4 DS160PR810 Equalization Control....................................................................................................................................
SNLU273 - DECEMBER 2020
Submit Document Feedback
ABSTRACT

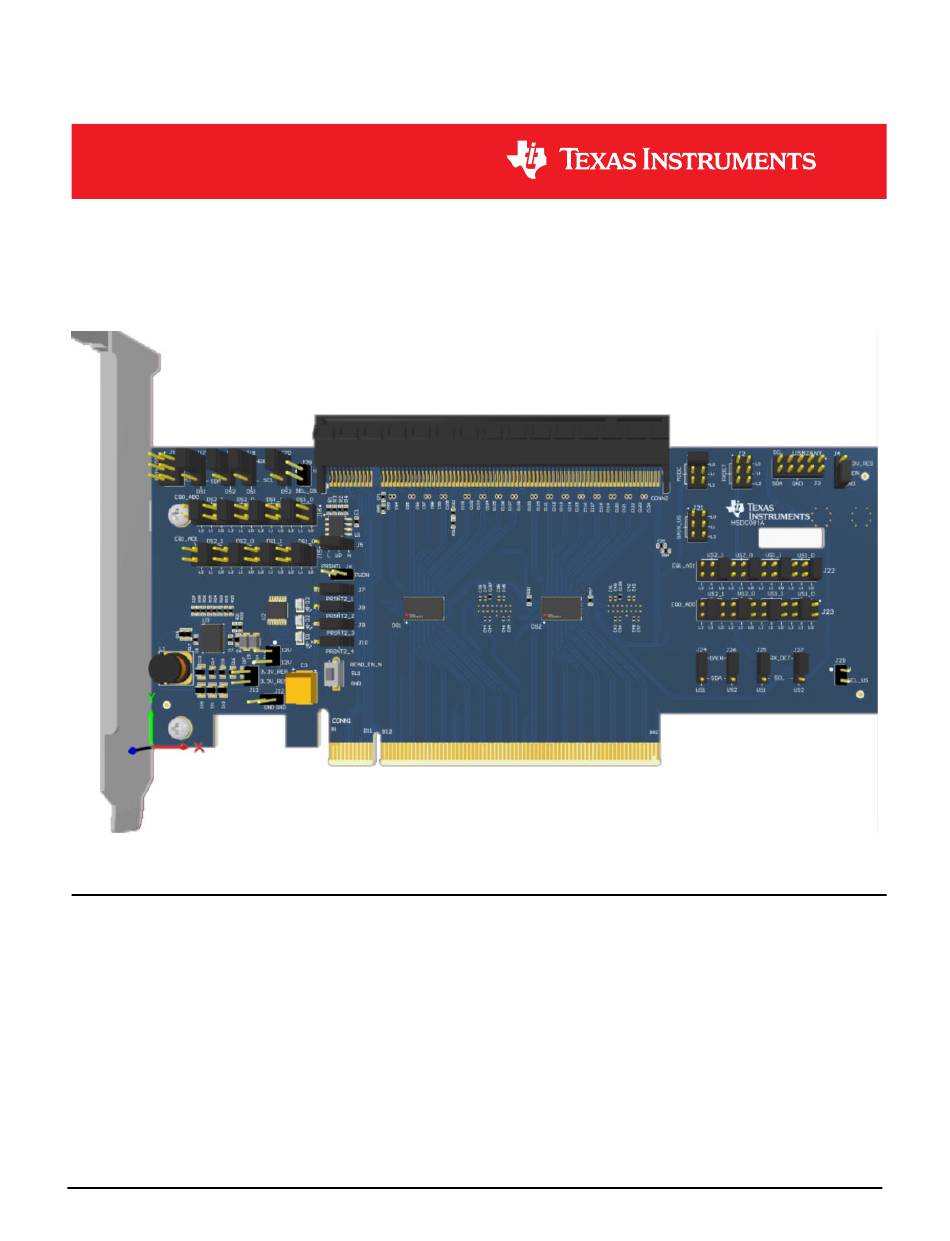

Figure 1-1. DS160PR810EVM-RSC - Top Side View
Table of Contents
Operation.....................................................................................................................................3
Interface....................................................................................................4
Machine............................................................................................................................6
Control..........................................................................................................................................6
..................................................................................................................................7
Copyright © 2020 Texas Instruments Incorporated
DS160PR810EVM-RSC Evaluation Module (EVM)
Table of Contents
2
3
3
5
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments DS160PR810EVM-RSC
Summary of Contents for Texas Instruments DS160PR810EVM-RSC
-
Page 1: Table Of Contents
DS160PR810EVM-RSC Evaluation Module (EVM) ABSTRACT The DS160PR810EVM-RSC evaluation modules provides a complete high-bandwidth platform for evaluating the signal conditioning features of the Texas Instruments DS160PR810 Octal-Channel PCI-Express 4.0 Linear Redriver. This evaluation board can be used for standard compliance testing, performance evaluation, and initial system prototyping. -
Page 2: Introduction
All trademarks are the property of their respective owners. 1 Introduction The DS160PR810EVM-RSC evaluation module features four DS160PR810 linear redrivers that can extend the transmission distance of a PCIe Gen-4 x16 bus. It can directly be plugged into a PCIe slot on a server or PC motherboard using one end of the board, and paired up with a PCIe add-in card using the straddle mount connector attached to the other end of the board. -
Page 3: Description
Table 2-2. Modes of Operation MODE PIN LEVEL MODE OF OPERATION Pin Mode SMBus Mode or I2C Master Mode SMBus Mode or I2C Slave Mode RESERVED SNLU273 – DECEMBER 2020 DS160PR810EVM-RSC Evaluation Module (EVM) Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... -
Page 4: Ds160Pr810 Smbus Or I2C Register Control Interface
0x21 0x22 0x23 0x24 0x25 0x26 0x27 0x28 0x29 0x2A 0x2B 0x2C 0x2D 0x2E 0x2F 0x30 0x31 0x32 0x33 0x34 0x35 0x36 0x37 DS160PR810EVM-RSC Evaluation Module (EVM) SNLU273 – DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... -
Page 5: Ds160Pr810 Equalization Control
The equalization gain of each channel of each device can also be set by writing to SMBus, I2C registers in I2C Mode. Refer to the DS160PR810 Programming Guide (SNLU268) for details. SNLU273 – DECEMBER 2020 DS160PR810EVM-RSC Evaluation Module (EVM) Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... -
Page 6: Ds160Pr810 Rx Detect State Machine
The DC gain of each channel of each device can also be set by writing to SMBus, I2C registers in Slave or Master Modes. Refer to the DS160PR810 Programming Guide (SNLU268) for details. DS160PR810EVM-RSC Evaluation Module (EVM) SNLU273 – DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... -
Page 7: Ds160Pr810 Evm Global Controls
Description 2.7 DS160PR810 EVM Global Controls Table 2-7 shows DS160PR810EVM-RSC global controls that affect all devices on the board. Table 2-7. EVM Global Controls COMPONENT NAME FUNCTION / DESCRIPTION MODE control tied to MODE pins of all four DS160PR810 devices on the EVM... -
Page 8: Ds160Pr810Evm Downstream Devices Control
RX DET / SCL Dual Function Pin Provision for DS2 Device Install shunt across pins 1-2 for operation in Pin Mode (default) Install shunt across pins 2-3 for operation in SMBus, I2C Modes DS160PR810EVM-RSC Evaluation Module (EVM) SNLU273 – DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... -
Page 9: Ds160Pr810Evm Upstream Devices Control
RX DET / SCL Dual Function Pin Provision for US2 Device Install shunt across pins 1-2 for operation in Pin Mode (default) Install shunt across pins 2-3 for operation in SMBus, I2C Modes SNLU273 – DECEMBER 2020 DS160PR810EVM-RSC Evaluation Module (EVM) Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... -
Page 10: Quick-Start Guide (Pin Mode)
13.Select the desired EQ Settings and Driver VOD. 14.Select devices to which you want to apply the selected settings and click "Apply to All Channels". DS160PR810EVM-RSC Evaluation Module (EVM) SNLU273 – DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... - Page 11 Description Figure 2-1. SigCon Architect DS160PR810 High Level Page SNLU273 – DECEMBER 2020 DS160PR810EVM-RSC Evaluation Module (EVM) Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
-
Page 12: Test Setup And Results
Figure 3-1. As the result indicates, the end point (Mellanox NIC) with the DS160PR810EVM-RSC placed in the datapath achieves a stable Gen4, x16 PCIe link. Figure 3-2. Example Test Results DS160PR810EVM-RSC Evaluation Module (EVM) SNLU273 –... -
Page 13: Schematics
PER15_P PER15_C_N PER15_N PER15_C_N PER15_C_N PER15_N PER15_N MODE MODE RX_DET RX_DET PWDN PWDN ALL_DONE_N_DS ALL_DONE_N_DS ALL_DONE_N ALL_DONE_N Figure 4-1. Top Level Schematic Page SNLU273 – DECEMBER 2020 DS160PR810EVM-RSC Evaluation Module (EVM) Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... - Page 14 READ_EN_N Test Traces 3_3V_REG Sample_85_Ohm_P PGOOD 2.2k SMDAT ALL_DONE_N 3_3V_REG Sample_85_Ohm_N 3_3V_REG 2.2k SMCLK 3_3V_REG 10.0k Figure 4-2. Control and Status Schematic Page DS160PR810EVM-RSC Evaluation Module (EVM) SNLU273 – DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
- Page 15 ILIM 165k 37.4k 42.2k RESV_TRK PGND PGND PGND PGND 2.05k PGND PGND PGND DRGND PGND AGND TPS548B22RVFR Figure 4-3. Voltage Regulator Schematic Page SNLU273 – DECEMBER 2020 DS160PR810EVM-RSC Evaluation Module (EVM) Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
- Page 16 Schematics www.ti.com 3_3V 3_3VAUX 3_3V PRSNT2_2 RSVD5 RSVD PRSNT2_3 RSVD2 CLKREQ PRSNT2_4 RSVD3 PRSNT2_1 RSVD4 RSVD1 Figure 4-4. Gold Finger Connector Schematic Page DS160PR810EVM-RSC Evaluation Module (EVM) SNLU273 – DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
- Page 17 RX_DET_SCL_DS2 VREG2_DS2 VREG4_DS2 EQ0_1_DS2 1.00k 13.0k 59.0k 0.1uF 0.1uF 3_3V_REG SEL_DS Provision for the pin compatible DS160PR822. Figure 4-5. Downstream Devices Schematic Page SNLU273 – DECEMBER 2020 DS160PR810EVM-RSC Evaluation Module (EVM) Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
- Page 18 0.1uF 0.1uF 3.24k EQ0_1_US2 1.00k RX_DET_SCL_US2 14.7k 13.0k 59.0k 3_3V_REG SEL_US Provision for the pin compatible DS160PR822. Figure 4-6. Upstream Devices Schematic Page DS160PR810EVM-RSC Evaluation Module (EVM) SNLU273 – DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
- Page 19 Schematics 3_3V 3_3VAUX 3_3V Figure 4-7. Straddle Connector Schematic Page SNLU273 – DECEMBER 2020 DS160PR810EVM-RSC Evaluation Module (EVM) Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
- Page 20 These assemblies must comply with workmanship standards IPC-A-610 Class 2, unless otherwise specified. Assembly Note Refer to the test procedure for the correct placement of shunts per Variant. Figure 4-8. Hardware Page DS160PR810EVM-RSC Evaluation Module (EVM) SNLU273 – DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
-
Page 21: Board Layout
Schematics 5 Board Layout Figure 5-1 Figure 5-2 illustrate the EVM board layouts. Figure 5-1. Top Layer SNLU273 – DECEMBER 2020 DS160PR810EVM-RSC Evaluation Module (EVM) Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... - Page 22 Schematics www.ti.com Figure 5-2. Bottom Layer DS160PR810EVM-RSC Evaluation Module (EVM) SNLU273 – DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
-
Page 23: Bill Of Materials
0201 C28, C29, C30, C31, C32, C33, C34, C35, C36, C37, C38, C39, C40, C41, C42, C43, C44, C45, C46, C47, C48, C49 SNLU273 – DECEMBER 2020 DS160PR810EVM-RSC Evaluation Module (EVM) Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... - Page 24 0402 ERJ-2RKF2490X Panasonic 0, 0402 R6, R9, R30, R59 3.24k RES, 3.24 k, 1%, 0.063 W, AEC-Q200 0402 CRCW04023K24FKED Vishay-Dale Grade 0, 0402 DS160PR810EVM-RSC Evaluation Module (EVM) SNLU273 – DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
- Page 25 R70, R73, R76, R79, R82, R87, R88, R89, R90, R91, RES, 43, 5%, 0.063 W, AEC-Q200 0402 CRCW040243R0JNED Vishay-Dale R92, R93, R94, R95, R96, Grade 0, 0402 SNLU273 – DECEMBER 2020 DS160PR810EVM-RSC Evaluation Module (EVM) Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
- Page 26 RES, 0, 5%, 0.1 W, AEC-Q200 Grade 0, 0402 ERJ-2GE0R00X Panasonic 0402 RES, 100, 1%, 0.063 W, AEC-Q200 0402 CRCW0402100RFKED Vishay-Dale Grade 0, 0402 DS160PR810EVM-RSC Evaluation Module (EVM) SNLU273 – DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
-
Page 27: References
For references, see the following: 1. Texas Instruments, DS160PR810 Octal-Channel PCI-Express 4.0 Linear Redriver Data Sheet 2. Texas Instruments, DS160PR810 Programming Guide 3. Texas Instruments, Understanding EEPROM Programming for DS160PR810 PCI-Express 4.0 Linear Redriver 4. Texas Instruments, CEM2SLIMSAS-EVM Evaluation Module (EVM) User's Guide SNLU273 –... - Page 28 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 29 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 30 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 31 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 32 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2019, Texas Instruments Incorporated...
- Page 33 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2020, Texas Instruments Incorporated...
