3. Performing additional connections

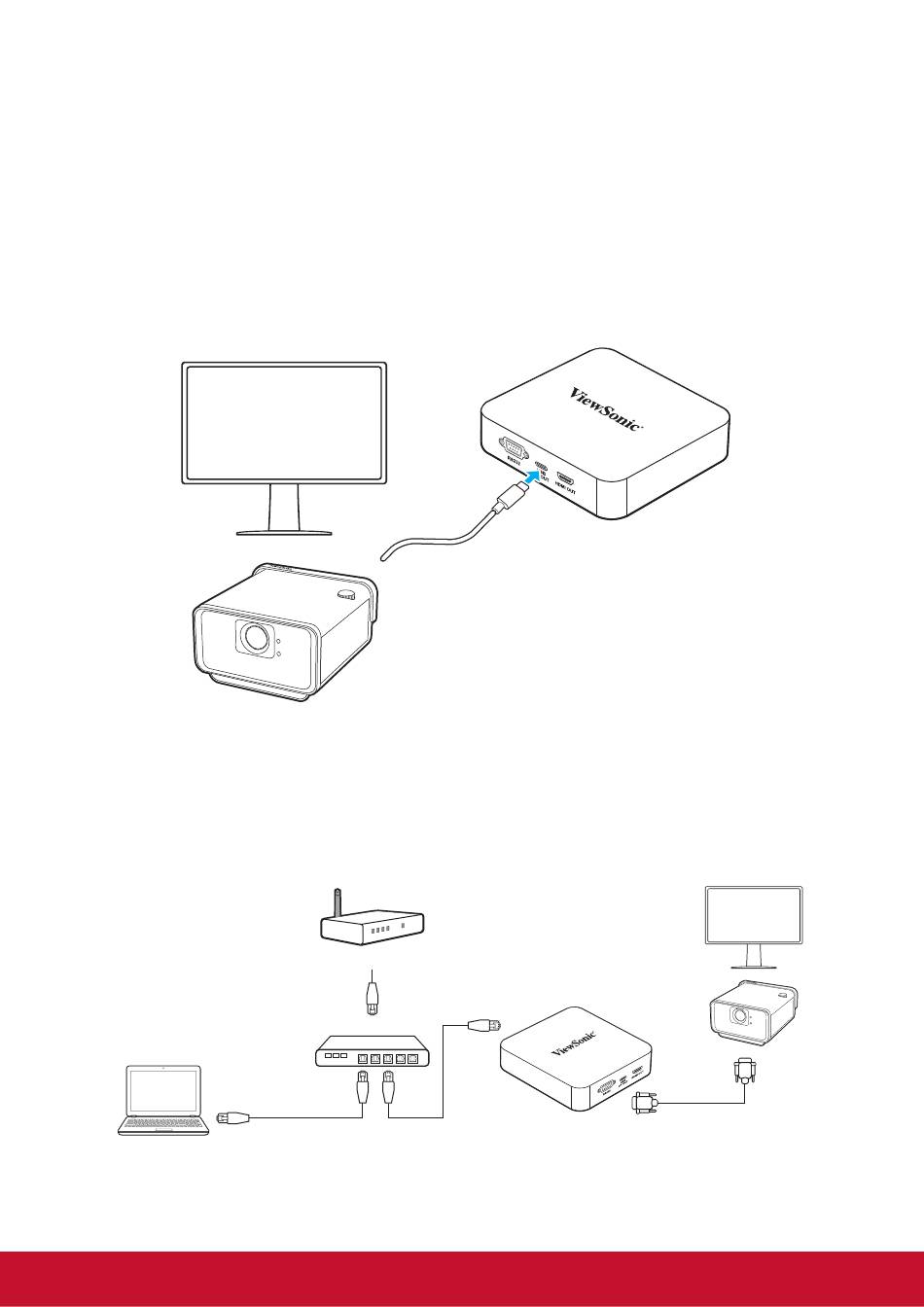

Connecting to USB type-C devices

• USB type-C compatible device connect to the monitor or projector.
• USB type-C supports DP1.2/out (1080P@60Hz) only.
• No support for running USB type-C and HDMI connections at the same time.

Connecting to RS232

An RS-232 connection provides the ability to turn on myViewBoard Box, adjust
volume or switch the input source from a remote PC or console.
Note: Set the baud rate of all control devices to 9600 bps.
[RJ-45]
ViewSonic provides vController, an easy-to-use control tool.
Internet
ROUTER
8
[RJ-45]
Serial Port Cable
