VPCF5-2A Series
Slot-in PC
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
Model No. VS20101 | VS20099
P/N: VPCF5-W55-G1-2A | VPCF5-W33-G1-2A | VPCF5-S55-G1-2A | VPCF5-S33-G1-2A | VPCF5-W55-G1-2A-A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ViewSonic VPCF5-2A Series
Summary of Contents for ViewSonic VPCF5-2A Series
- Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
- Page 2 As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.
-
Page 3: Table Of Contents
Contents Introduction ..............4 Product Overview ....................4 Initial Setup ..............5 Installing the VPCF5-2A ..................5 Making Connections ............ 6 Network Connection....................6 USB Connection ......................6 Using the Device ............7 Selecting an Input Source ..................7 IFP Series ......................... 7 CDE Series........................ 8 Appendix .............. -
Page 4: Introduction

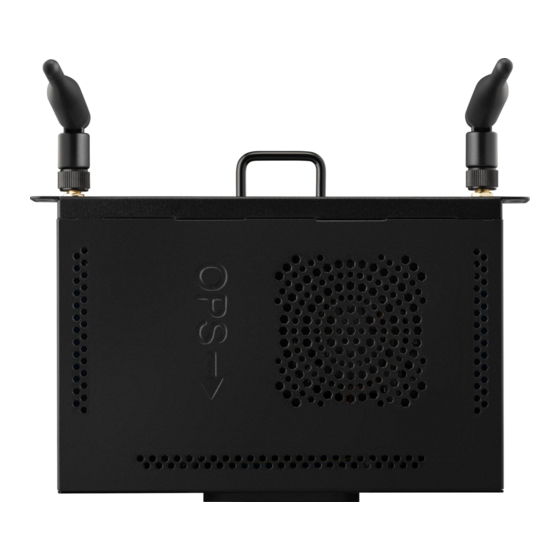

Introduction Product Overview Number Item Description Antenna Wi-Fi antenna interface. Security Lock Anti-theft security lock. USB 3.1 USB 3.1 port. Standard RJ45 (10M/100M/1G) internet connection port. NOTE: This network port is only used for PC. USB 2.0 USB 2.0 port. RESET Reset button. -
Page 5: Initial Setup
Initial Setup Installing the VPCF5-2A 1. Remove the slot-in PC cover of the display. 2. Using the handle of the VPCF5-2A, carefully insert it into the PC slot of the display. 3. Secure the VPCF5-2A to the display with the two included screws. NOTE: ... -
Page 6: Making Connections
Making Connections Network Connection To connect to the Internet or a network, connect one end of a RJ45 cable to the LAN port of the VPCF5-2A, then connect the other end to your network. USB Connection USB peripherals such as keyboards, mice, storage devices, etc. can be connected to the VPCF5-2A’s USB ports. -
Page 7: Using The Device
Using the Device Selecting an Input Source IFP Series To select an input source: 1. Press INPUT/ on the remote control, press the setting button on the front panel, or press the Settings icon from the toolbar to display the Input Settings menu. -
Page 8: Cde Series
CDE Series Custom To select an input source: 1. Press INPUT/ on the remote control. 2. Press ▼/▲ on the remote control to select the PC source. 3. Press OK/ENTER on the remote control. 4. Press EPG/BACK/ on the remote control to exit. NOTE: ... -
Page 9: Appendix
Appendix Specifications Category Item Specifications 1 x HDMI (Max: 3840 x 2160 @ 60 Hz) 1x DisplayPort (Max: 7680 x 4320 @ 30 Hz) 1 x RJ45 (LAN) (10M/100M/1G) 2 x USB 2.0 (5V/0.5A) Ports 2 x USB 3.1 (5V/0.9A) USB Type C (Data only, no PD support, 5V/900mA) 1 x Analog audio-in (3.5 mm, mic-in) -
Page 10: Regulatory And Service Information
Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. FCC Compliance Statement FCC ID: PD9AX101NG This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 11: Industry Canada Statement
Industry Canada Statement IC ID: 1000M-AX101NG CAN ICES (B) / NMB (B) This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with Industry Canada license-exempt RSS standard(s): Operation is subject to the following Two conditions:(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. -
Page 12: Antenna Info
Antenna Info Antenna Type: External antenna Manufacturer: WUTONG Model Name: WTTX220122B Antenna Gain: 2.4G/5dBi, 5G/3 dBi Connector Type: SMAMiniature Version A Country Code Statement For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Pour les produits disponibles aux États-Unis/Canada du marché, seul le canal 1 à... -
Page 13: Ce Conformity For European Countries
CE Conformity for European Countries The device complies with the EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and Radio Equipment Directive 2014/53/EU. The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). -
Page 14: Declaration Of Rohs2 Compliance
Declaration of RoHS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Proposed Maximum Actual... -
Page 15: Indian Restriction Of Hazardous Substances
Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®... -
Page 16: Copyright Information
Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation. VESA is a registered trademark of the Video Electronics Standards Association. -
Page 17: Customer Service
For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia Bangladesh www.viewsonic.com/au/ www.viewsonic.com/bd/ 中国 (China) www.viewsonic.com.cn www.viewsonic.com/hk/ 香港 (繁體中文) Hong Kong (English) India www.viewsonic.com/hk-en/ www.viewsonic.com/in/...
