2. Getting Started

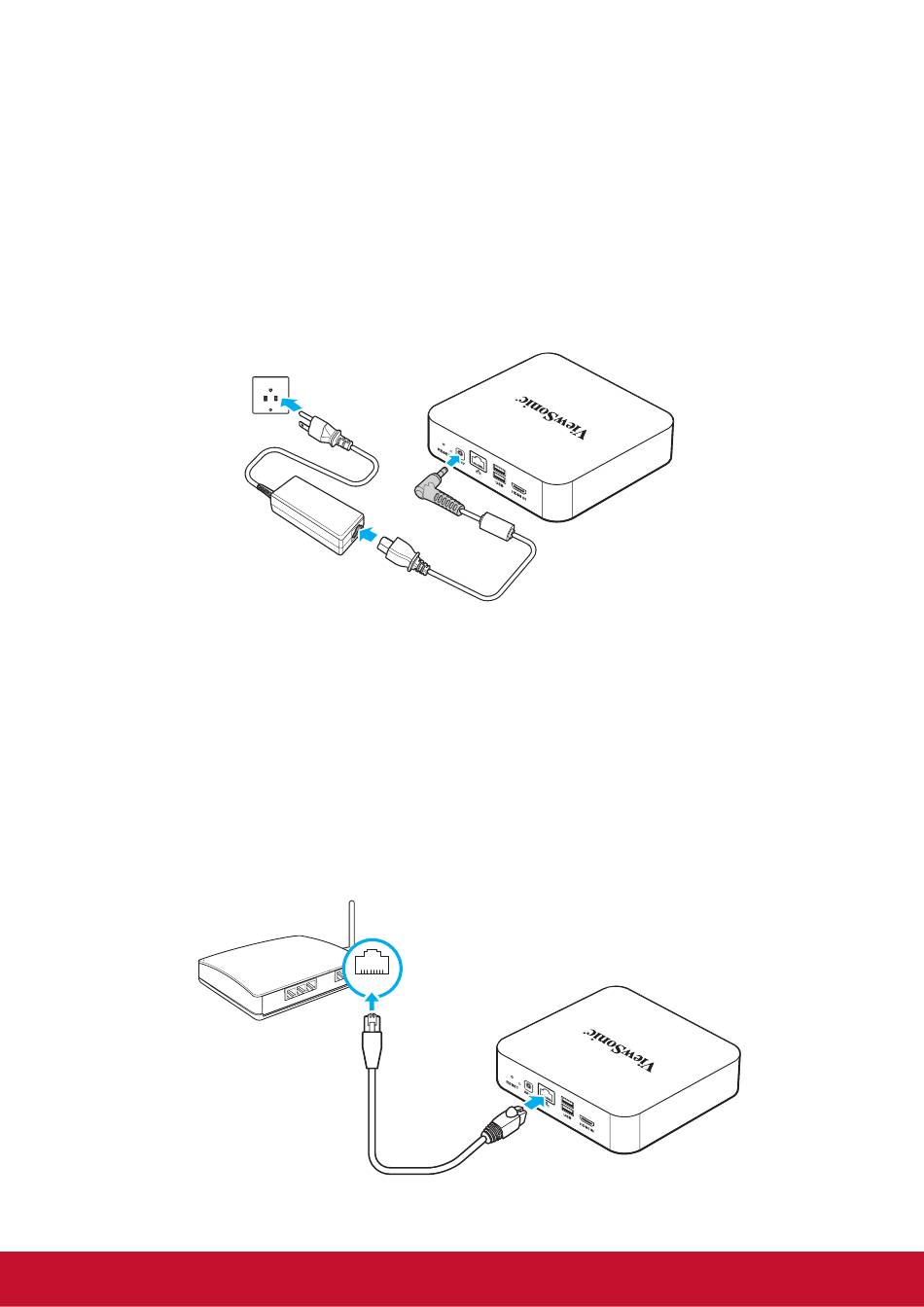

Connecting the AC power

To connect your myViewBoard Box to a power source, perform the following:
1. Connect one end of the power cord to the AC adapter and the other end to a
power outlet.
2. Connect the AC adapter to the DC-in jack of your myViewBoard Box.
The myViewBoard Box supports the PoE feature. If connected to a Power Device
(PD) or a Power Sourcing Equipment (PSE), the myViewBoard Box is able to power
itself via the ethernet slot.
1. Connect a Power Device (PD) or a Power Sourcing Equipment (PSE) to a power
outlet.
2. Connect an ethernet cable connected to the Power Device (PD) to the Power
over Ethernet (PoE) slot of your myViewBoard Box.
If both power sources are available, the myViewBoard Box uses the AC adapter as
the main power source.
PoE
LAN
LAN
5
